Tyco Model DPV-1 Dry Pipe Valve, External Resetting, DN65 to DN150 (TFP1020)
A differential dry pipe valve that lets water into a dry pipe sprinkler system when one or more sprinklers open, and also actuates the fire alarm.

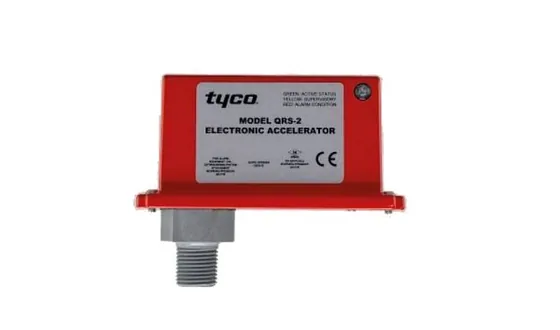

Supplier for TycoTyco Model QRS-2 Electronic Accelerator for Dry Pipe or Preaction Systems (TFP1120)
An electronic quick opening device that shortens the operating time of a dry pipe valve, or of the deluge valve in a double interlock electric/electric preaction system, for valves from DN65 to DN150.
- Tyco states it operates the valve within four seconds, whatever the system air pressure, volume or sprinkler K-factor
- Built-in low and high pressure alarm supervision, with a visual indicator that shows the device state without removing the cover
- Uses the electric release technology of electrically operated deluge and preaction systems; battery back-up
- Up to two units on one or two DPV-1 risers with an AutoPulse Z-10 or Z-20 panel, or up to four with a Potter PFC-4410G3 panel
- Suits the Prescient III, Potter PFC-4410G3 and AutoPulse Z-10 releasing panels; DV-5A valves must be set up for double interlock electric/electric
Sizes: DN65 to DN150
Specifications
Specifications
| Specification | DN65 to DN150 |
|---|---|
| Approvals | Table 1: Approvals certifications |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
