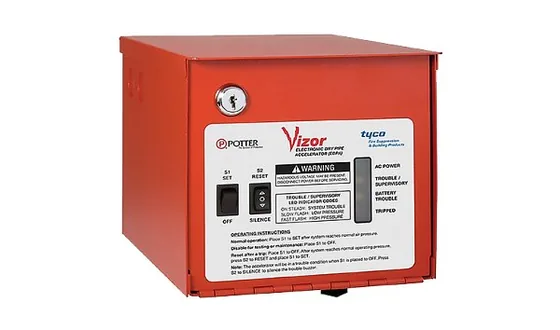

Supplier for TycoTyco VIZOR Electronic Dry Pipe Accelerator (EDPA) (TFP1105)
A microprocessor based quick opening device that samples system air pressure continuously and, on a sustained drop, opens its solenoid valve to trip the dry pipe valve sooner.
- Tyco states it operates a dry pipe valve within four seconds over a wide range of system volumes, air pressures and sprinkler K-factors
- Built-in low and high pressure alarm supervision; electronically self-supervising
- Battery back-up if primary power fails
- Mounts directly on the riser, with an easy test and reset
- Maximum water pressure 300 psi; system air pressure 10 to 65 psi; dry contacts rated 5 A at 30 VDC
- Tyco lists UL and ULC Listing, held under the Potter Electric Signal Company EDPA name, for the dry pipe valves in Table A of the data sheet
Standards and approvals: UL and ULC Listed
Specifications
Specifications
| Specification | Details |
|---|---|
| Maximum Water Pressure | 300 psi (20,7 bar) |
| Air Pressure | 10 to 65 psi (0,69 to 4,48 bar) |
| Pressure Decay For Trip | 0.1 psi/sec. (0,007 bar/s) |
| Power Requirements | Maximum 0.75 A @ 120/220 AC |
| Battery Current Draw | Standby: 43 ma; Alarm: 440 ma |
| Dry Contact Rating | Trouble: 5 A @ 30 VDC High/Low: 5 A @ 30 VDC |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
