Honeywell Intevio HAM-2000 Power Amplifier, 500 W
A 500 W Class-D power amplifier that provides 70 V or 100 V audio amplification for the Intevio PAVA system, with dual channel audio capability.

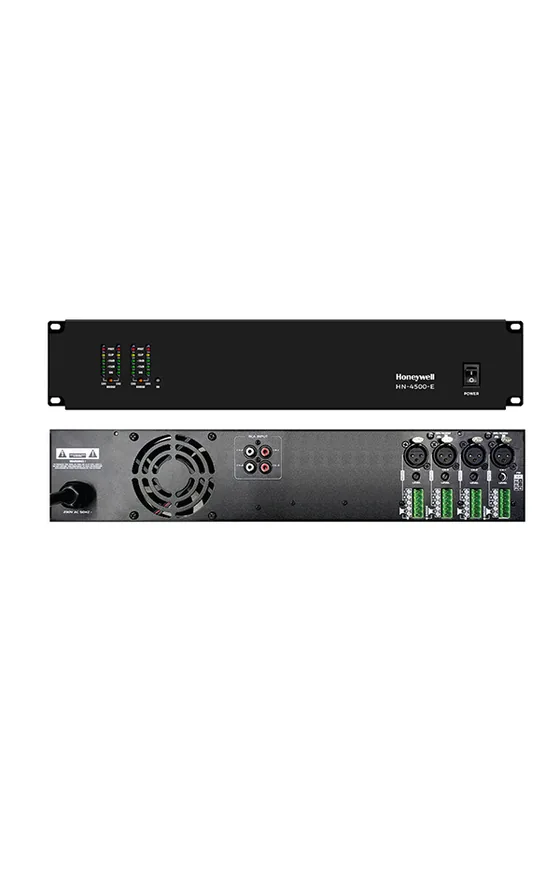

Dealer for HoneywellHoneywell RAAGA 4 HN-4500-E Power and Booster Amplifier, 4 x 500 W
A 4 x 500 W power and booster amplifier that amplifies the audio signal for public address and voice alarm systems, in a light, high efficiency design.
- 4 x 500 W, Class-D circuit
- 100 V output, transformerless design
- Three level input sensitivity selection
- Inputs: 4 x XLR, 4 x 3-pin Phoenix and 4 x RCA; outputs: 4 x 2-pin Phoenix
- Universal mains 90 to 270 VAC with power factor correction (PFC)
- CE and RoHS, with EN 62368 and EN 60065 among its listed standards
Standards and approvals: CE, RoHS, EN 60065, EN 62368, EN 55032, EN 61000-3, EN 55103-2, FCC
Specifications
Specifications
| Specification | HN-4500-E |
|---|---|
| MODEL NUMBER | HN-IA4500-E |
| Number of Input Channels (Analog) | 4 |
| Number of Output Channels | 4 |
| Input Connectors (Signal Input) | 4 x XLR, 4 x 3-pin Phoenix, 4 x RCA (Phono) |
| Output Connectors (Speaker Output) | 4 x 2-pin Phoenix |
| Output Gain Knob (Volume Knob) at the rear panel | 4 |
| Model Selector - Normal or Bridged (Rear Panel) | Press for Bridge Mode and Release for Normal Mode |
| Front Panel LED Indications | Power, Signal, Protect, Clip |
| Maximum Output Power @ 40 | 4 x 500W |
| Maximum Output Power @ 80 | 4 x 500W |
| Maximum Output Power @ 70V/100V (Direct Drive) | 4 x 500W |
| Maximum Output Power @ 40 Bridged (Channel Pair) | 2 x 1000W |
| Maximum Output Power @ 80 Bridged (Channel Pair) | 2 x 1000W |
| Maximum Output Power @ 70V/100V Bridged (Channel Pair) | 2 x 1000W |
| Output Circuitry | Class D - full bandwith PWM modulator with ultra low distortion, 90% efficiency. |
| Input Sensitivity | 1.4V (+4 dBu) |
| Amplifier Gain | 28.2 dB / 34.2 dB bridge mode |
| Signal To Noise-Ratio | > 119 dB (A-weighted, 20 Hz - 20 kHz, 80 load) |
| THD+N (typical) | < 0.05 % (20 Hz - 20 kHz, 80 load, 3 dB below rated power) |
| Frequency Response | 20 Hz - 20 kHz (+0/-0.25 dB (80 load, 3 dB below rated power) |
| Damping Factor | >2000, each channel (80 load, 1 kHz and below) |
| Protection Circuits | Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection |
| Power Supply | Universal mains switch mode power supply with Power Factor Correction (PFC) & integral standby converter |
| Input Voltage (AC) | Universal Mains with PFC, 90-270 VAC @ 50Hz to 60Hz |
| Operating Temperature & Humidity | -10°C to 50°C @ 90% relative humidity (non condensing) |
| Cooling | Fan, variable speed, temperature controlled, front to rear airflow |
| CE & RoHS Standards | Complaint to CE & RoHS |
| Safety Standards | Complaint to IEC/EN 60065:2001 (7th E) + A1:2005 = A2:2010 | Complaint to IEC/EN/UL 62368-1: 2014 (2nd E) | Complaint to EN 60065.2002 + A12006 + A11: 2008 + A2:2010 + A12:2011 | Complaint to EN 62368:2014 | Complaint to CSA C22.2 NO.62368-1-14:2014 | Complaint to UL 62368:2014 Complaint to EN 55032:2012 with EN 55032:2012 AC 2013 |
| Electro Magnetic Compliance (Emission) | Complaint to EN 61000-3-2:2014 | Complaint to EN 61000-3-3:2013 |
| Electro Magnetic Compliance (Immunity) | Complaint to EN 55103-2:2009 | Complaint to FCC part 15 sub part B |
| AC Input Power Cord | 230V/10A - 3 Pin Power Cord (Fixed) |
| Input AC Power in watts, when both channels are driven (In Bridge Mode), Pink Noise input @ 230V AC input | 984W |
| Net Weight | 10.00 Kg |
| Gross Weight | 11.50 Kg |
| Product Dimension | 530 mm x 482 mm x 88 mm (L x W x H) |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
