Honeywell Intevio HAM-2000 Power Amplifier, 500 W
A 500 W Class-D power amplifier that provides 70 V or 100 V audio amplification for the Intevio PAVA system, with dual channel audio capability.

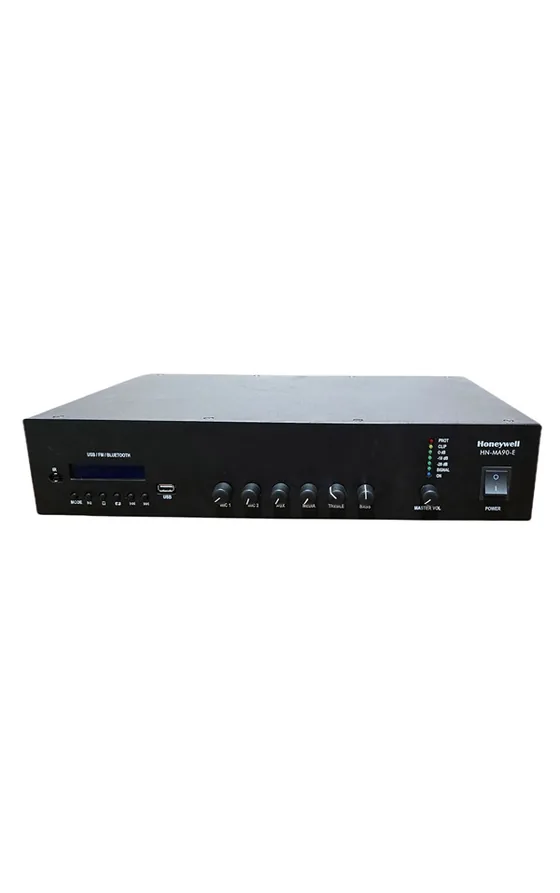

Dealer for HoneywellHoneywell RAAGA 4 HN-MA90-E Mixer Amplifier, 90 W
A 90 W mixer amplifier that mixes microphone, AUX and media player sources for public address systems, in a light and efficient design.
- 90 W Class-D with a 100 V balanced output
- Balanced and unbalanced MIC inputs, AUX inputs, Bluetooth, USB and FM
- Separate MIC, AUX and media volume controls
- Bass, treble and master volume controls
- Inputs: 2 x 6.3 mm jack and a 5-pin Phoenix connector
- Universal mains 100 to 270 VAC with power factor correction
Specifications
Specifications
| Specification | HN-MA90-E |
|---|---|
| MODEL NUMBER | HN-MA90-E |
| No. of Inputs | 4 |
| Rated Output Power | 90W (100V@111 Ohm) |
| Input Connectors (Signal Input) | 2 x 6.3mm JACK, 1x5-pin Phoenix male connector |
| Output Connectors (Speaker Output) | 1 x 2-pin Phoenix male connector |
| MIC-1, MIC2,A UX, MADIA, BASS, TREBLE, MASTER | 7 Knobs variable controls |
| Front Panel LED Indications | Power, Signal, Levels:-20dB, -10dB, 0dB , Clip, Protect |
| Output Circuitry | Class D - full bandwith PWM modulator with ultra low distortion |
| Input Sensitivity | MIC-1 : 10mV, MIC-2: 10mV, AUX: 200mV. , MP3 : 0dB |
| Signal To Noise-Ratio | > 72 dB |
| THD+N (typical) | < 0> |
| Frequency Response | 40 Hz - 18 kHz (3dB below rated power) |
| Tone Controls | BASS: Cut: -10dB Boost: +10dB TREBLE: Cut: -10dB Boost: +5dB |
| Damping Factor | >350, (8Ω load, 1 kHz) |
| Protection Circuits | Short circuit protection, DC protection, temperature protection, overload protection |
| Power Supply | Universal mains switch mode power supply |
| Input Voltage (AC) | Universal Mains with PFC, 100 -270 VAC @ 50Hz to 60Hz |
| Operating Temperature & Humidity | -10°C to 50°C @ 90% relative humidity (non condensing) |
| Cooling | Fix speed Fan front to rear airflow |
| AC Input Power Cord | 230V/10A - 3 Pin Power Cord |
| SMPS RMS Power Limit | 170W |
| Net Weight | 6.30 Kg |
| Gross Weight | 7.50 Kg |
| Product Dimension | 440 mm x 350 mm x102 mm (L x W x H) |
| Packing Dimension | 530 mm x 410 mm x205 mm (L x W x H) |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
More Honeywell Voice Alarm Amplifiers
Honeywell X-618 X-DA4125EN Class-D Amplifier, 4 x 125 W
A four channel Class-D amplifier for the X-618 system with fully digital audio transmission, which keeps the signal free from interference and easy to control. It takes a 24 V DC backup supply.
Honeywell X-618 X-DA1500EN-B Class-D Amplifier, 1 x 500 W
A single channel 500 W Class-D amplifier for the X-618 system with fully digital audio transmission, which keeps the signal free from interference and easy to control. It takes a 24 V DC backup supply.
Honeywell X-618 X-DA2250EN-B Class-D Amplifier, 2 x 250 W
A two channel Class-D amplifier for the X-618 system with fully digital audio transmission, which keeps the signal free from interference and easy to control. It takes a 24 V DC backup supply.
Honeywell X-618 X-DA2250 Amplifier, 2 x 250 W
Amplifies the audio for high power loudspeakers on the X-618 PAVA system, with balanced and unbalanced inputs and automatic detection of power supply errors.
Honeywell X-618 X-DA4125 Amplifier, 4 x 125 W
A four channel amplifier for the X-618 digital PAVA system, with a built-in fuse for over-current protection and a cooling fan to keep it running efficiently.
Voice Alarm, Talk-back and Auto Dialers from other brands
Notifier
Notifier DVC-EM Digital Voice Command
The heart of the Notifier audio command centre, giving voice evacuation for emergency communications and mass notification, with 8 simultaneous messages and networking across a campus or large facility.
Notifier
Notifier DS-DB Digital Series Distribution Board
A distribution board that adds digital bulk audio evacuation to the DVC system, converting digital audio to analogue and routing it to amplifiers and optional backups.
Soft-Chip
Soft-Chip Microprocessor Fire Alarm Panel with Integrated Public Address
Microprocessor based fire alarm panel with a built-in PA system, a 100 V RMS output and up to 11 minutes of digital voice recording. Alert and evacuation announcements are sent through a PA zone selector with All Call.
Soft-Chip
Soft-Chip Talk-Back Master Station for Fire Fighter Telephones (2 to 64 Zones)
Sizes: 2,4,8,16,32,64 Zone
Microprocessor based master station for fire fighter telephone systems, available in 2 to 64 zones and working on a DTMF, PSTN based, 2 wire, 24 V telephone circuit. Soft-Chip states it is compatible with all conventional and addressable fire fighter telephone systems.
Agni
Agni FYRLAAST Fire Telephone Control Panel
The control panel of the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
Agni
Agni FYRLAAST Addressable Fire Extension Telephone
An addressable extension telephone for the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
