Honeywell Intevio HAM-2000 Power Amplifier, 500 W
A 500 W Class-D power amplifier that provides 70 V or 100 V audio amplification for the Intevio PAVA system, with dual channel audio capability.

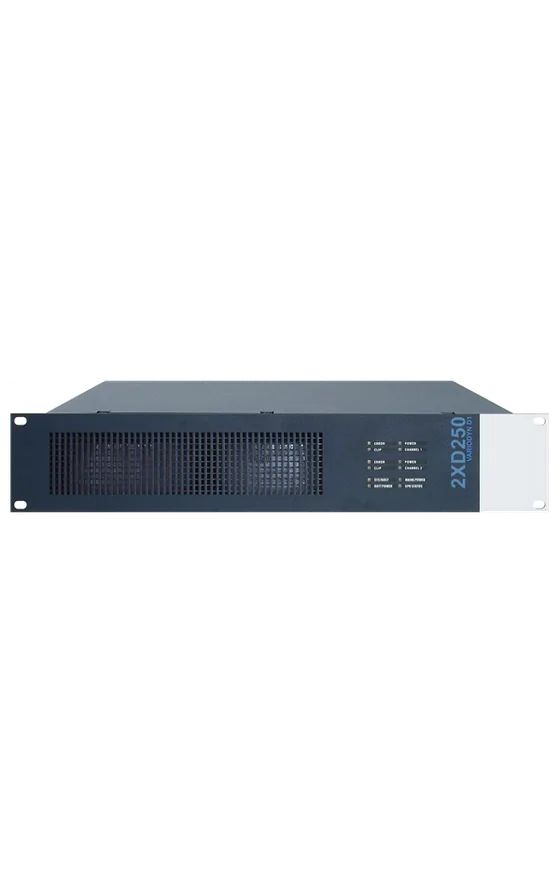

Dealer for HoneywellHoneywell Variodyn D1 2XD250 Power Amplifier, 2 x 250 W
A two channel power amplifier controlled and monitored through the Variodyn D1 DOM, with electronic protection against thermal overload and output short circuits.
- 2 x 250 W rated output
- Control and monitoring through the Variodyn D1 DOM
- Electronic protection against thermal overload and output short circuits
- Rear socket for the mains voltage and mains fuse
- Runs only on a three-wire supply with a protective earth
- 230 V AC supply, 24 V DC emergency power; EN 54-16 and VdS listed
Standards and approvals: EN 54-16, VdS
Specifications
Specifications
| Specification | 2XD250 |
|---|---|
| Dimensions (B x H x T) | 483 x 88 x 402 mm / 2 HU, 19” |
| Net Weight | approx. 16.5 kg |
| Input impedance | > 20 kΩ, el. balanced |
| Relative Humidity | 40% to 93%, (no condensation) |
| Nominal voltage | 230 V AC |
| Nominal frequency | 50 to 60 Hz, +10% / -5% |
| Housing colour | gray, similar to RAL 7016 |
| Transmission frequency band (-1 dB) | 50 Hz to 22 kHz |
| Ambient temperature during operation | -5°C to +55° C |
| Rated power output (sin.) | 2 x 250 W |
| Voltage consumption (230 V AC) | 2.8 A |
| Voltage consumption (24 V DC / Sinus continuous tone*) | 25 A |
| Voltage consumption (24 V DC / Announcement / 1/3 load) * | 8.75 A |
| Voltage consumption (24 V DC / Announcement / 1/8 load) * | 3.6 A |
| Power consumption in standby mode (230 V) separated f. mains supply | approx. 0 VA |
| Dissipation loss / 230 V AC (Idle) | 25 W max. |
| Dissipation loss / 24 V DC (channels off) | 3 W max |
| Dissipation loss / 24 V DC (channels on) | 10 W max |
| Emergency power supply | 24 V DC |
| functional principal | Class D |
| Transmission frequency band | 50 Hz to 22 kHz |
| Signal-to-noise ratio | > 90 dB, A - unweighted |
| Harmonic distortion at full load / 1 kHz | < 0.03 % Channel separation > 42 dB |
| Power Amplifier 2 x 250 W / 100 V | 580231 |
| DOM-XV cable for amplifier audio inputs and remote control | 583491 |
| XV-DOM cable for amplifier and audio outputs (for 2 amplifiers) | 583477.21 |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
