Honeywell Intevio HAM-2000 Power Amplifier, 500 W
A 500 W Class-D power amplifier that provides 70 V or 100 V audio amplification for the Intevio PAVA system, with dual channel audio capability.

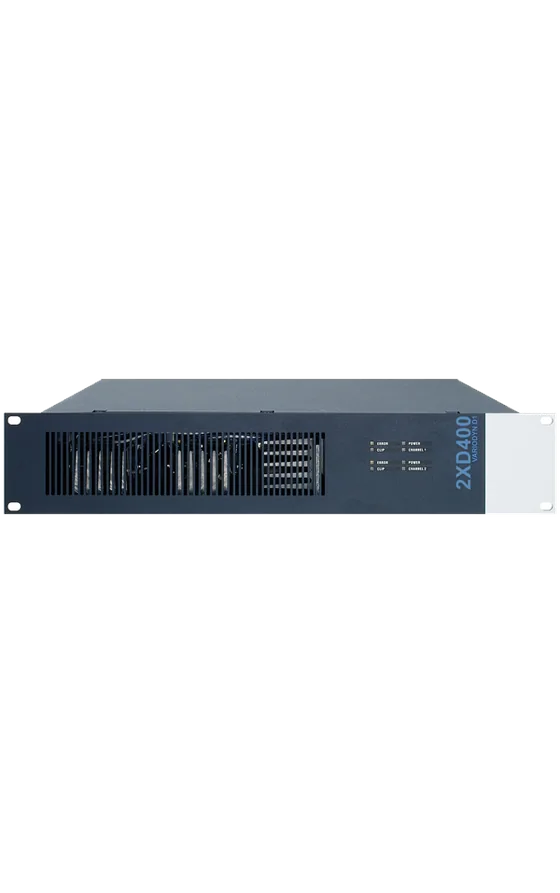

Dealer for HoneywellHoneywell Variodyn D1 2XD400 Power Amplifier, 2 x 400 W
A two channel power amplifier for the Variodyn D1 system, controlled by a DOM4-8 or DOM4-24 digital output module. Its audio inputs and control input connect to the DOM by cable, and a mains cable is supplied.
- 2 x 400 W rated output
- Controlled by a DOM4-8 or DOM4-24
- Audio and control inputs cabled to the DOM; mains cable supplied
- 230 V AC supply with a 24 V DC emergency power input
- Electronically balanced input
- EN 54-16 and VdS listed
Standards and approvals: EN 54-16, VdS
Specifications
Specifications
| Specification | 2XD400 |
|---|---|
| Dimensions (B x H x T) | 483 x 88 x 402 mm / 2 HU, 19” |
| Net Weight | approx. 19.0 kg |
| Input impedance | > 20 kΩ, el. balanced |
| Relative Humidity | 40% to 93%, (no condensation) |
| Nominal voltage | 230 V AC |
| Nominal frequency | 50 to 60 Hz, +10% / -5% |
| Housing colour | gray, similar to RAL 7016 |
| Transmission frequency band (-1 dB) | 50 Hz to 22 kHz |
| Ambient temperature during operation | -5 °C to +55 °C |
| Rated power output (sin.) | 2 x 400 W |
| Voltage consumption (230 V AC) | 4.5 A |
| Voltage consumption (24 V DC / Sinus continuous tone*) | 40.5 A |
| Voltage consumption (24 V DC / Announcement / 1/3 load) * | 13.9 A |
| Voltage consumption (24 V DC / Announcement / 1/8 load) * | 5.6 A |
| Power consumption in standby mode (230 V) separated f. mains supply | approx. 0 VA |
| Dissipation loss / 230 V AC (Idle) | 30 W max |
| Dissipation loss / 24 V DC (channels off) | 3 W max. |
| Dissipation loss / 24 V DC (channels on) | 12 W max. |
| Emergency power supply | 24 V DC |
| functional principal | Class D |
| Transmission frequency band | 50 Hz to 22 kHz |
| Signal-to-noise ratio | > 90 dB, A - unweighted |
| Harmonic distortion at full load / 1 kHz | < 0.03 % Channel separation > 42 dB |
| Power Amplifier 2 x 400 W / 100 V | 580232 |
| DOM-XV cable for amplifier audio inputs and remote control | 583491 |
| XV-DOM cable for amplifier and audio outputs (for 2 amplifiers) | 583477.21 |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
More Honeywell Voice Alarm Amplifiers
Honeywell X-618 X-DA4125EN Class-D Amplifier, 4 x 125 W
A four channel Class-D amplifier for the X-618 system with fully digital audio transmission, which keeps the signal free from interference and easy to control. It takes a 24 V DC backup supply.
Honeywell X-618 X-DA1500EN-B Class-D Amplifier, 1 x 500 W
A single channel 500 W Class-D amplifier for the X-618 system with fully digital audio transmission, which keeps the signal free from interference and easy to control. It takes a 24 V DC backup supply.
Honeywell X-618 X-DA2250EN-B Class-D Amplifier, 2 x 250 W
A two channel Class-D amplifier for the X-618 system with fully digital audio transmission, which keeps the signal free from interference and easy to control. It takes a 24 V DC backup supply.
Honeywell X-618 X-DA2250 Amplifier, 2 x 250 W
Amplifies the audio for high power loudspeakers on the X-618 PAVA system, with balanced and unbalanced inputs and automatic detection of power supply errors.
Honeywell X-618 X-DA4125 Amplifier, 4 x 125 W
A four channel amplifier for the X-618 digital PAVA system, with a built-in fuse for over-current protection and a cooling fan to keep it running efficiently.
Voice Alarm, Talk-back and Auto Dialers from other brands
Notifier
Notifier DVC-EM Digital Voice Command
The heart of the Notifier audio command centre, giving voice evacuation for emergency communications and mass notification, with 8 simultaneous messages and networking across a campus or large facility.
Notifier
Notifier DS-DB Digital Series Distribution Board
A distribution board that adds digital bulk audio evacuation to the DVC system, converting digital audio to analogue and routing it to amplifiers and optional backups.
Soft-Chip
Soft-Chip Microprocessor Fire Alarm Panel with Integrated Public Address
Microprocessor based fire alarm panel with a built-in PA system, a 100 V RMS output and up to 11 minutes of digital voice recording. Alert and evacuation announcements are sent through a PA zone selector with All Call.
Soft-Chip
Soft-Chip Talk-Back Master Station for Fire Fighter Telephones (2 to 64 Zones)
Sizes: 2,4,8,16,32,64 Zone
Microprocessor based master station for fire fighter telephone systems, available in 2 to 64 zones and working on a DTMF, PSTN based, 2 wire, 24 V telephone circuit. Soft-Chip states it is compatible with all conventional and addressable fire fighter telephone systems.
Agni
Agni FYRLAAST Fire Telephone Control Panel
The control panel of the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
Agni
Agni FYRLAAST Addressable Fire Extension Telephone
An addressable extension telephone for the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
