Honeywell Intevio HAM-2000 Power Amplifier, 500 W
A 500 W Class-D power amplifier that provides 70 V or 100 V audio amplification for the Intevio PAVA system, with dual channel audio capability.

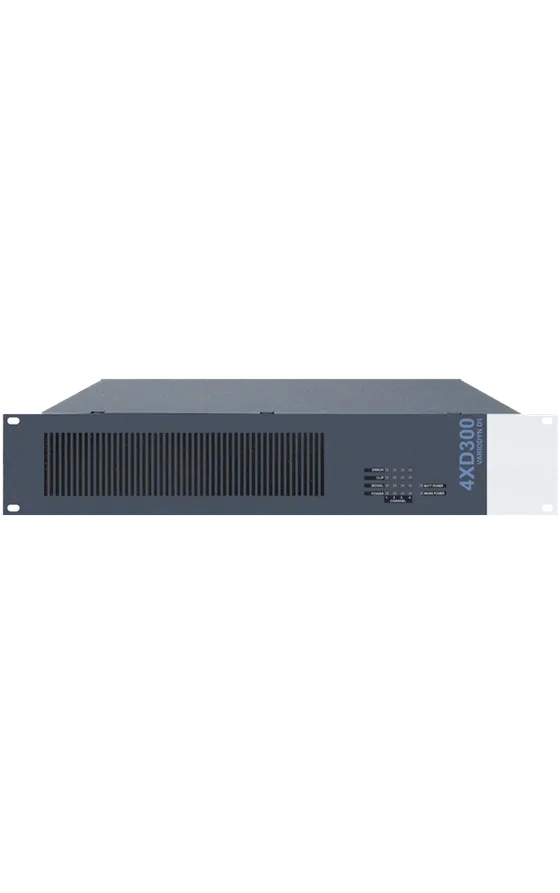

Dealer for HoneywellHoneywell Variodyn D1 4XD300 Power Amplifier, 4 x 300 W
A four channel power amplifier for the Variodyn D1 system that is controlled and monitored by a DOM4-8 or DOM4-24 digital output module.
- 4 x 300 W nominal output, Class D
- Controlled and monitored by a DOM4-8 or DOM4-24
- 24 V emergency power supply on its own 2-pole socket
- Rear socket for the mains connection and mains fuse
- Channel separation above 94 dB
- EN 54-16 listed
Standards and approvals: EN 54-16
Specifications
Specifications
| Specification | 4XD300 |
|---|---|
| Power consumption (24 V DC / music / 1/3 load) | 25.9 A |
| Power consumption (24 V DC / speech / 1/8 load) | 12.5 A |
| Housing color | gray similar RAL 7016 |
| Dimensions (W x H x D) | 483 x 88 x 454 mm / 2 HU, 19 |
| Input impedance | > 20 kΩ, el. symmetrical |
| Nominal output power | 4 x 300 W |
| Relative Humidity | 40 % to 93 %, (w/o condensation) |
| Power consumption (230 V AC) | 9.7 A |
| Channel separation | > 94 dB |
| Power consumption in stand-by mode (230 V AC) | 0.5 A |
| Rated voltage | 230 V AC |
| Rated frequency | 50 to 60 Hz, +10% / -5% |
| Operating principle | Class D |
| Transmission frequency band (-1 dB) | 20 Hz to 20 kHz |
| Distortion factor at max. load / 1kHz | < 0.03 % |
| Ambient temperature during operation | -5 °C to +55 °C |
| Weight | ca. 14 kg |
| Power amplifier 4 x 300 W / 100 V | 580248 |
| Backup cable RC 44 | 583444 |
| Input cable DOM amplifier (2 x required) | 583491 |
| Output cable 4XV amplifier DOM | 583477.21 |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
