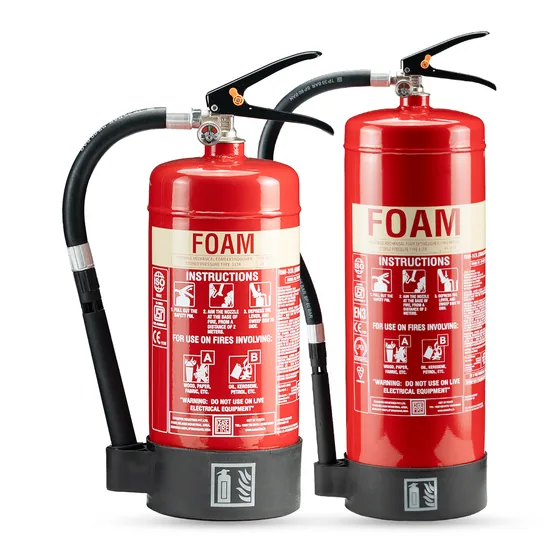

Authorised distributor for CeasefireStored pressure foam extinguisher for Class A and B fires in 3, 6 and 9 ltr, with stainless steel or mild steel bodies. The 3 ltr size is rated 2A, 55B to IS 15683, with a throw above 2 m.
Standards and approvals: EUROCERT, BIS, PED, IS 15683, CE, LPCB, BSI, EN3, BSI Kitemark
Sizes: 3 L, 6 L, 9 L
| Specification | 3 L | FIRE EXT FOAM 3 L SS SP RED | FIRE EXT FOAM 3 L MS SP RED | 6 L | FIRE EXT FOAM 6 L SS SP RED | FIRE EXT FOAM 6 L MS SP RED | 9 L | FIRE EXT FOAM 9 L SS SP RED | FIRE EXT FOAM 9 L MS SP RED |
|---|---|---|---|---|---|---|---|---|---|
| Ratings (IS) | 2A, 55B | 3A, 144B | 4A, 233B | ||||||
| Ratings (EN) | --- | 13A, 144B | 21A, 233B | ||||||
| PRODUCT CODES | CF-001241 | CF-001244 | CF-001125 | CF-001126 | CF-001127 | CF-001128 | |||
| AGENT | WATER + 6% OF KV FOAM 3% C-6 | WATER + 6% OF KV FOAM 3% C-6 | WATER + 6% OF KV FOAM 3% C-6 | WATER + 6% OF KV FOAM 3% C-6 | WATER + 6% OF KV FOAM 3% C-6 | WATER + 6% OF KV FOAM 3% C-6 | |||
| STORED PRESSURE/CARTRIDGE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | |||
| CERTIFICATION OR VERIFING BODY | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS, *LPCB, BSI | EUROCERT, BIS, *LPCB, BSI | EUROCERT, BIS, *LPCB, BSI | EUROCERT, BIS, *LPCB, BSI | |||
| CERTIFICATION TYPE | PED, IS 15683 | PED, IS 15683 | PED, IS 15683 , EN3 | PED, IS 15683 , EN3 | PED, IS 15683 , EN3 | PED, IS 15683 , EN3 | |||
| BIS MARKING | YES | YES | YES | YES | YES | YES | |||
| CE MARKING | YES | YES | YES | YES | YES | YES | |||
| MINIMUM BULK RANGE THROW (AS PER IS 15683) | > 2 METERS | > 2 METERS | > 2 METERS | > 2 METERS | > 2 METERS | > 2 METERS | |||
| GROSS WEIGHT (APPROX) | 5.80 TO 6.10 KG | 5.20 TO 5.40 KG | 9.40 TO 9.70 KG | 9.10 TO 9.50 KG | 13.10 TO 13.50 KG | 13.10 TO 13.50 KG | |||
| NET VOLUME | 3.00 TO 3.15 LTR | 3.00 TO 3.15 LTR | 5.70 TO 6.00 LTR | 5.70 TO 6.00 LTR | 8.55 TO 9.00 LTR | 8.55 TO 9.00 LTR | |||
| DISCHARGE MECHANISM | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | |||
| APPLICABLE ON FIRES | A & B | A & B | A & B | A & B | A & B | A & B | |||
| IS 15683 RATINGS | 2A, 55B | 2A, 55B | 3A, 144B | 3A, 144B | 4A, 233B | 4A, 233B | |||
| *EN RATINGS | NA | NA | 13A, 144B | 13A, 144B | 21A, 233B | 21A, 233B | |||
| CAN CONSTRUCTION | DRAWN ROLLED & MIG WELDED | DEEP DRAWN & MIG WELDED | DRAWN ROLLED & MIG WELDED | DEEP DRAWN & MIG WELDED | DRAWN ROLLED & MIG WELDED | DEEP DRAWN & MIG WELDED | |||
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | |||
| INTERNAL COATING | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | |||
| EXTERNAL COATING | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | |||
| HELIUM LEAK DETECTION TESTING | YES | YES | YES | YES | YES | YES | |||
| WARRANTY IN YEARS | 6 | 6 | 6 | 6 | 6 | 6 | |||
| WORKING PRESSURE | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | |||
| HYDROSTATIC TEST PRESSURE | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | |||
| DIA. OF SHELL (OD) | 140 MM | 140 MM | 160 MM | 160 MM | 175 MM | 175 MM | |||
| HEIGHT OF FIRE EXT. (APPROX) | 445 MM | 445 MM | 520 MM | 520 MM | 610 MM | 615 MM | |||
| BODY THICKNESS (APPROX) | 1.5 MM | 1.2 MM | 1.4 MM | 1.4 MM | 1.5 MM | 1.4 MM | |||
| CYLINDER MATERIAL SPEC. | SS 304 (1.4301) | STEEL CR2(DC01) | SS 304 (1.4301) | STEEL CR2(DC01) | SS 304 (1.4301) | STEEL CR2(DC01) | |||
| OPERATING TEMPERATURE | 5°C TO 60°C | 5°C TO 60°C | 5°C TO 60°C | 5°C TO 60°C | 5°C TO 60°C | 5°C TO 60°C |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher for Class A and B fires in 3, 6 and 9 ltr, with stainless steel or mild steel bodies in red or chrome. The 3 ltr size is rated 8A, 89B.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher with a spray nozzle in 3, 6 and 9 ltr, in stainless or mild steel. Ceasefire rates it for Class A, B, F and electrically started fires, lists 8A for the 3 ltr size and shows EN3 approval as pending.
Sizes: 50 L, 100 L
Trolley mounted foam extinguisher in 50 and 100 ltr for large Class A and B risks, certified to EN 1866 and rated A, IVB. It has a 7 m throw and opens with a lever operated ball valve.
Sizes: 6 L, 9 L
Stored pressure water extinguisher for Class A fires in 6 and 9 ltr, with stainless or mild steel bodies in red or chrome. The 6 ltr size is rated 13A and the jet reaches 7 m.
Sizes: 6 L, 9 L
Stored pressure water extinguisher with a spray nozzle in 6 and 9 ltr for Class A, F and electrically started fires, rated 13A, 25F on the 6 ltr size. Ceasefire shows EN3 approval as pending for this model.
Sizes: 50 L, 100 L
Trolley mounted water extinguisher in 50 and 100 ltr for large Class A risks, certified to EN 1866 with a 10 m throw. It opens with a lever operated ball valve.
Sizes: 6 L, 9 L
A nitrogen pressurised water extinguisher for Class A fires in offices, stores and industrial areas, filled with RO processed or distilled water. Fire rating 2A with about 22 seconds discharge and 5 m throw.
Sizes: 6 L, 9 L
A water extinguisher for Class A fires that uses a separate CO2 cartridge as the expellant instead of stored nitrogen. Rated 2A with about 22 seconds discharge and 4 m throw.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher in 2, 6 and 9 L for Class A fires in wood, plastics and paper, pressurised with dry nitrogen. The 2 L size is rated 1A with a minimum effective discharge time of 8 seconds.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher with a stainless steel cylinder in 2, 6 and 9 L, for Class A fires in coastal and high salinity locations. The 2 L size is rated 1A.
Sizes: 9 L
A 9 litre stored pressure extinguisher that discharges pressurised water on Class A fires in wood, paper, fabric and rubber. It is meant for places where the fire risk comes from solid materials.
Sizes: 9 L
A 9 litre stored pressure extinguisher with aqueous film forming foam for Class A and Class B fires, especially those in petrol, diesel, paint and oils. The foam blankets the burning liquid, cutting off oxygen and preventing re-ignition.
