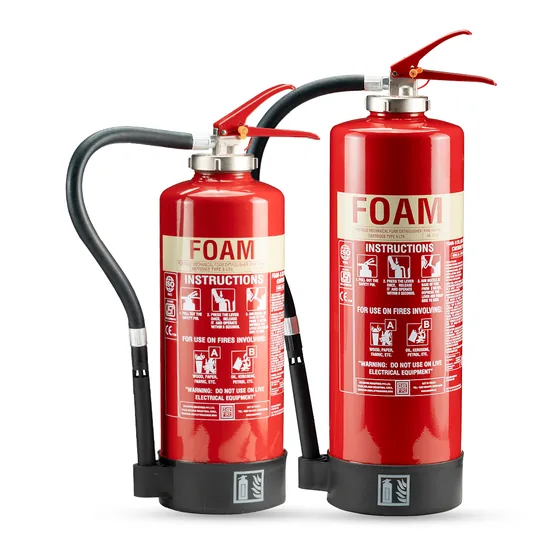

Authorised distributor for CeasefireCartridge operated foam extinguisher in 6 and 9 ltr mild steel bodies for Class A and B fires, pressurised only at the time of use. The 6 ltr size is rated 3A, 144B.
Standards and approvals: ISO 9001, PED, IS 15683
Sizes: 6 L, 9 L
| Size | Fire rating |
|---|---|
| 6 L | |
| Fire Ext Foam 6 L MS CT Red | 3A | 144B |
| 9 L | |
| Fire Ext Foam 9 L CT SP Red | 4A | 233B |
| Specification | 6 L | Fire Ext Foam 6 L MS CT Red | 9 L | Fire Ext Foam 9 L CT SP Red |
|---|---|---|---|---|
| Ratings | 3A, 144B | 4A, 233B | ||
| Product Code | CF-001157 | CF-001158 | ||
| Capacity of Agent | 6 (L) | 9 (L) | ||
| Filling tolerance by Volume | -5 to 0 (%) | -5 to 0 (%) | ||
| Agent | 6% of KV Foam 3% C-6 | 6% of KV Foam 3% C-6 | ||
| Certification Standard | ISO 9001, PED, IS 15683 | ISO 9001, PED, IS 15683 | ||
| Valve Material of Construction (MOC) | Brass | Brass | ||
| Valve Construction | Forging and machining | Forging and machining | ||
| Shell Material of Construction (MOC) | Steel CR2 (DC01) | Steel CR2 (DC01) | ||
| Shell Construction | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | ||
| Min. Wall Thickness | 1.4 (mm) | 1.4 (mm) | ||
| Diameter of Shell (approx.) | 160 (mm) | 175 (mm) | ||
| Total Height (approx.) | 550 (mm) | 635 (mm) | ||
| Test Pressure | 35 (Bar) | 35 (Bar) | ||
| Anti-Corrosive Treatment External | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | ||
| Service Pressure | 10 (Bar) | 10 (Bar) | ||
| Type of Operating Mechanism | Squeeze Grip | Squeeze Grip | ||
| Cartridge Size | 60 | 180 | ||
| MOC and Length of Hose | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion of Hose 500 mm (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion of Hose 500 mm (mm) | ||
| Minimum Throw Distance (BRD as per IS-15683) | 5 (Meter) | 6 (Meter) | ||
| Min. Discharge Time (as per IS-15683) | 15 (Sec.) | 15 (Sec.) | ||
| Applicable to Type of Fire | A, B | A, B | ||
| Operating Temperature Range | From +5 to +60 (°C) | From +5 to +60 (°C) | ||
| Extinguisher Label | Screen printed | Screen printed | ||
| Glow in the Dark Locator | Yes | Yes | ||
| Green Packaging (Environment Friendly) | Yes | Yes | ||
| Gross Weight* | 10.10 to 10.40 (Kg) | 14.80 to 15.60 (Kg) | ||
| Product Warranty** | 6 (Year) | 6 (Year) | ||
| Mounting Bracket | J hanger | J hanger |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher for Class A and B fires in 3, 6 and 9 ltr, with stainless steel or mild steel bodies in red or chrome. The 3 ltr size is rated 8A, 89B.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher with a spray nozzle in 3, 6 and 9 ltr, in stainless or mild steel. Ceasefire rates it for Class A, B, F and electrically started fires, lists 8A for the 3 ltr size and shows EN3 approval as pending.
Sizes: 50 L, 100 L
Trolley mounted foam extinguisher in 50 and 100 ltr for large Class A and B risks, certified to EN 1866 and rated A, IVB. It has a 7 m throw and opens with a lever operated ball valve.
Sizes: 6 L, 9 L
Stored pressure water extinguisher for Class A fires in 6 and 9 ltr, with stainless or mild steel bodies in red or chrome. The 6 ltr size is rated 13A and the jet reaches 7 m.
Sizes: 6 L, 9 L
Stored pressure water extinguisher with a spray nozzle in 6 and 9 ltr for Class A, F and electrically started fires, rated 13A, 25F on the 6 ltr size. Ceasefire shows EN3 approval as pending for this model.
Sizes: 50 L, 100 L
Trolley mounted water extinguisher in 50 and 100 ltr for large Class A risks, certified to EN 1866 with a 10 m throw. It opens with a lever operated ball valve.
Sizes: 6 L, 9 L
A nitrogen pressurised water extinguisher for Class A fires in offices, stores and industrial areas, filled with RO processed or distilled water. Fire rating 2A with about 22 seconds discharge and 5 m throw.
Sizes: 6 L, 9 L
A water extinguisher for Class A fires that uses a separate CO2 cartridge as the expellant instead of stored nitrogen. Rated 2A with about 22 seconds discharge and 4 m throw.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher in 2, 6 and 9 L for Class A fires in wood, plastics and paper, pressurised with dry nitrogen. The 2 L size is rated 1A with a minimum effective discharge time of 8 seconds.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher with a stainless steel cylinder in 2, 6 and 9 L, for Class A fires in coastal and high salinity locations. The 2 L size is rated 1A.
Sizes: 9 L
A 9 litre stored pressure extinguisher that discharges pressurised water on Class A fires in wood, paper, fabric and rubber. It is meant for places where the fire risk comes from solid materials.
Sizes: 9 L
A 9 litre stored pressure extinguisher with aqueous film forming foam for Class A and Class B fires, especially those in petrol, diesel, paint and oils. The foam blankets the burning liquid, cutting off oxygen and preventing re-ignition.
