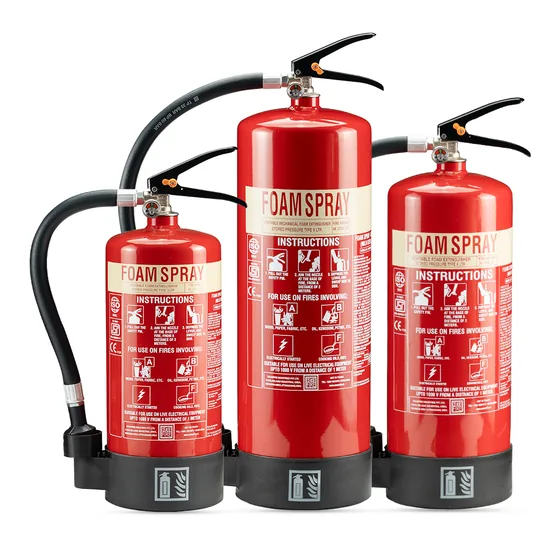

Authorised distributor for CeasefireFoam extinguisher with a spray nozzle in 3, 6 and 9 ltr mild steel bodies, for Class A, B, F and electrically started fires. The 3 ltr size is rated 2A, 89B, 25F.
Standards and approvals: ISO 9001, PED, IS 15683, LPCB, BSI Kitemark, MED, UKCA-MED
Sizes: 3 L, 6 L, 9 L
| Size | Fire rating |
|---|---|
| 3 L | |
| Fire Ext Foam 3 L MS SP Red (Spray mode L) | 2A | 89B | 25F |
| 6 L | |
| Fire Ext Foam 6 L MS SP Red (Spray mode L) | 3A | 144B | 25F |
| 9 L | |
| Fire Ext Foam 9 L MS SP Red (Spray mode L) | 4A | 233B | 75F |
| Specification | 3 L | Fire Ext Foam 3 L MS SP Red (Spray mode L) | 6 L | Fire Ext Foam 6 L MS SP Red (Spray mode L) | 9 L | Fire Ext Foam 9 L MS SP Red (Spray mode L) |
|---|---|---|---|---|---|---|
| Ratings | 2A, 89B, 25F | 3A, 144B, 25F | 4A, 233B, 75F | |||
| Product Code | CF-001244S | CF-001126S | CF-001128S | |||
| Capacity of Agent | 3 (L) | 6 (L) | 9 (L) | |||
| Filling Tolerance By Volume | -5 (%) | -5 (%) | -5 (%) | |||
| Agent | 6% of KV Foam 3% C-6 | 6% of KV Foam 3% C-6 | 6% of KV Foam 3% C-6 | |||
| Certification Standard | ISO 9001, PED, IS 15683 | ISO 9001, PED, IS 15683 | ISO 9001, PED, IS 15683 | |||
| Valve Material of Construction (MOC) | Brass | Brass | Brass | |||
| Valve Construction | Forging and machining | Forging and machining | Forging and machining | |||
| Pressure Relief Valve (PRV) | Yes | Yes | Yes | |||
| Non Return Valve (NRV) | Yes | Yes | Yes | |||
| Shell Material of Construction (MOC) | Steel CR2 (DC01) | Steel CR2 (DC01) | Steel CR2 (DC01) | |||
| Shell Construction | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | |||
| Min. Wall Thickness | 1.2 (mm) | 1.4 (mm) | 1.4 (mm) | |||
| Diameter of Shell (approx.) | 140 (mm) | 160 (mm) | 175 (mm) | |||
| Total Height (approx.) | 440 (mm) | 520 (mm) | 615 (mm) | |||
| Test Pressure | 35 (Bar) | 35 (Bar) | 35 (Bar) | |||
| Anti-Corrosive Treatment | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | |||
| Service Pressure | 15 (Bar) | 15 (Bar) | 15 (Bar) | |||
| Type of Operating Mechanism | Squeeze Grip | Squeeze Grip | Squeeze Grip | |||
| Type of Pressure Gauge | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | |||
| MOC and Length of Hose | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 300 mm (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 400 mm (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 500 mm (mm) | |||
| Minimum Throw Distance (BRD as per IS-15683) | > 2 (Meter) | > 2 (Meter) | > 2 (Meter) | |||
| Min. Discharge Time (as per IS-15683) | 9 (Sec.) | 15 (Sec.) | 15 (Sec.) | |||
| Applicable to Type of Fire | A, B, F & ESF | A, B, F & ESF | A, B, F & ESF | |||
| Operating Temperature Range | From +5 to +60 (°C) | From +5 to +60 (°C) | From +5 to +60 (°C) | |||
| Extinguisher Label | Screen printed | Screen printed | Screen printed | |||
| Glow in the Dark Fire Extinguisher Locator | Yes | Yes | Yes | |||
| Green Packaging (Environment Friendly) | Yes | Yes | Yes | |||
| Gross Weight* | Approx. 5.75 (Kg) | 9.40 to 9.73 (Kg) | 14.70 to 15.15 (Kg) | |||
| Product Warranty** | 6 (Year) | 6 (Year) | 6 (Year) | |||
| Mounting Bracket | L Bracket with J hanger | L Bracket with J hanger | L Bracket with J hanger |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher for Class A and B fires in 3, 6 and 9 ltr, with stainless steel or mild steel bodies in red or chrome. The 3 ltr size is rated 8A, 89B.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher with a spray nozzle in 3, 6 and 9 ltr, in stainless or mild steel. Ceasefire rates it for Class A, B, F and electrically started fires, lists 8A for the 3 ltr size and shows EN3 approval as pending.
Sizes: 50 L, 100 L
Trolley mounted foam extinguisher in 50 and 100 ltr for large Class A and B risks, certified to EN 1866 and rated A, IVB. It has a 7 m throw and opens with a lever operated ball valve.
Sizes: 6 L, 9 L
Stored pressure water extinguisher for Class A fires in 6 and 9 ltr, with stainless or mild steel bodies in red or chrome. The 6 ltr size is rated 13A and the jet reaches 7 m.
Sizes: 6 L, 9 L
Stored pressure water extinguisher with a spray nozzle in 6 and 9 ltr for Class A, F and electrically started fires, rated 13A, 25F on the 6 ltr size. Ceasefire shows EN3 approval as pending for this model.
Sizes: 50 L, 100 L
Trolley mounted water extinguisher in 50 and 100 ltr for large Class A risks, certified to EN 1866 with a 10 m throw. It opens with a lever operated ball valve.
Sizes: 6 L, 9 L
A nitrogen pressurised water extinguisher for Class A fires in offices, stores and industrial areas, filled with RO processed or distilled water. Fire rating 2A with about 22 seconds discharge and 5 m throw.
Sizes: 6 L, 9 L
A water extinguisher for Class A fires that uses a separate CO2 cartridge as the expellant instead of stored nitrogen. Rated 2A with about 22 seconds discharge and 4 m throw.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher in 2, 6 and 9 L for Class A fires in wood, plastics and paper, pressurised with dry nitrogen. The 2 L size is rated 1A with a minimum effective discharge time of 8 seconds.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher with a stainless steel cylinder in 2, 6 and 9 L, for Class A fires in coastal and high salinity locations. The 2 L size is rated 1A.
Sizes: 9 L
A 9 litre stored pressure extinguisher that discharges pressurised water on Class A fires in wood, paper, fabric and rubber. It is meant for places where the fire risk comes from solid materials.
Sizes: 9 L
A 9 litre stored pressure extinguisher with aqueous film forming foam for Class A and Class B fires, especially those in petrol, diesel, paint and oils. The foam blankets the burning liquid, cutting off oxygen and preventing re-ignition.
