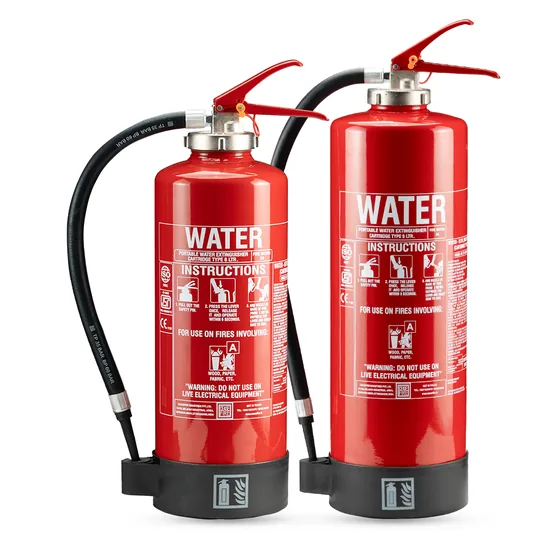

Authorised distributor for CeasefireCartridge operated water extinguisher in 6 and 9 ltr for Class A fires, where CO2 from the cartridge drives the water out. The 6 ltr size is rated 3A, with a throw above 2 m.
Standards and approvals: EUROCERT, BIS, PED, IS 15683
Sizes: 6 L, 9 L
| Specification | 6 L | FIRE EXT WATER 6 L MS CT RED | 9 L | FIRE EXT WATER 9 L MS CT RED |
|---|---|---|---|---|
| Ratings | 3A | 4A | ||
| PRODUCT CODES | CF-001155 | CF-001156 | ||
| AGENT | WATER | WATER | ||
| STORED PRESSURE/CARTRIDGE | CARTRIDGE TYPE | CARTRIDGE TYPE | ||
| CERTIFICATION OR VERIFING BODY | EUROCERT, BIS | EUROCERT, BIS | ||
| CERTIFICATION TYPE | PED,IS 15683 | PED,IS 15683 | ||
| BIS MARKING | YES | YES | ||
| CE MARKING/UK CA CE | YES | YES | ||
| CARTRIDGE SIZE | 40 GRAM | 60 GRAM | ||
| MINIMUM BULK RANGE THROW (AS PER IS 15683) | >2 METERS | >2 METERS | ||
| GROSS WEIGHT (APPROX) | 10.20 TO 10.40 KG | 13.80 TO 14.50 KG | ||
| NET MASS | 5.70 TO 6.00 LTR | 8.55 TO 9.00 LTR | ||
| DISCHARGE MECHANISM | SQUEEZE GRIP | SQUEEZE GRIP | ||
| APPLICABLE ON FIRES | A | A | ||
| IS 15683 RATINGS | 3A | 4A | ||
| CAN CONSTRUCTION | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | ||
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING | FORGING AND MACHINING | ||
| INTERNAL COATING | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | ||
| EXTERNAL COATING | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | ||
| WARRANTY IN YEARS | 6 | 6 | ||
| WORKING PRESSURE | 10 BAR | 15 BAR | ||
| HYDROSTATIC TEST PRESSURE | 35 BAR | 35 BAR | ||
| DIA. OF SHELL (OD) | 160 MM | 175 MM | ||
| APPROX. HEIGHT OF FIRE EXT. | 550 MM | 635 MM | ||
| BODY THICKNESS (APPROX) | 1.4 MM | 1.4 MM | ||
| CYLINDER MATERIAL SPEC. | STEEL CR2(DC01) | STEEL CR2(DC01) | ||
| OPERATING TEMPERATURE | 5 ° C TO 60° C | 5 ° C TO 60° C | ||
| PRESSURE RELIEF VALVE | BURST DISK | BURST DISK |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher for Class A and B fires in 3, 6 and 9 ltr, with stainless steel or mild steel bodies in red or chrome. The 3 ltr size is rated 8A, 89B.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher with a spray nozzle in 3, 6 and 9 ltr, in stainless or mild steel. Ceasefire rates it for Class A, B, F and electrically started fires, lists 8A for the 3 ltr size and shows EN3 approval as pending.
Sizes: 50 L, 100 L
Trolley mounted foam extinguisher in 50 and 100 ltr for large Class A and B risks, certified to EN 1866 and rated A, IVB. It has a 7 m throw and opens with a lever operated ball valve.
Sizes: 6 L, 9 L
Stored pressure water extinguisher for Class A fires in 6 and 9 ltr, with stainless or mild steel bodies in red or chrome. The 6 ltr size is rated 13A and the jet reaches 7 m.
Sizes: 6 L, 9 L
Stored pressure water extinguisher with a spray nozzle in 6 and 9 ltr for Class A, F and electrically started fires, rated 13A, 25F on the 6 ltr size. Ceasefire shows EN3 approval as pending for this model.
Sizes: 50 L, 100 L
Trolley mounted water extinguisher in 50 and 100 ltr for large Class A risks, certified to EN 1866 with a 10 m throw. It opens with a lever operated ball valve.
Sizes: 6 L, 9 L
A nitrogen pressurised water extinguisher for Class A fires in offices, stores and industrial areas, filled with RO processed or distilled water. Fire rating 2A with about 22 seconds discharge and 5 m throw.
Sizes: 6 L, 9 L
A water extinguisher for Class A fires that uses a separate CO2 cartridge as the expellant instead of stored nitrogen. Rated 2A with about 22 seconds discharge and 4 m throw.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher in 2, 6 and 9 L for Class A fires in wood, plastics and paper, pressurised with dry nitrogen. The 2 L size is rated 1A with a minimum effective discharge time of 8 seconds.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher with a stainless steel cylinder in 2, 6 and 9 L, for Class A fires in coastal and high salinity locations. The 2 L size is rated 1A.
Sizes: 9 L
A 9 litre stored pressure extinguisher that discharges pressurised water on Class A fires in wood, paper, fabric and rubber. It is meant for places where the fire risk comes from solid materials.
Sizes: 9 L
A 9 litre stored pressure extinguisher with aqueous film forming foam for Class A and Class B fires, especially those in petrol, diesel, paint and oils. The foam blankets the burning liquid, cutting off oxygen and preventing re-ignition.
