Fire Sprinkler System Installation in Bhopal — Complete Guide (2026)
- Jas Chandrawanshi
- May 25
- 5 min read
If your building in Bhopal does not have a fire sprinkler system, you are taking a serious risk — both with lives and with your fire NOC compliance. A sprinkler system is often the difference between a small fire being controlled automatically and a full building loss.
Fire Protection System (FPS) has been designing, supplying, and installing fire sprinkler systems across Bhopal and Madhya Pradesh since 1995. In this guide, we cover everything you need to know before installing a sprinkler system — types, costs, IS code requirements, and how to choose the right contractor.
What Is a Fire Sprinkler System?

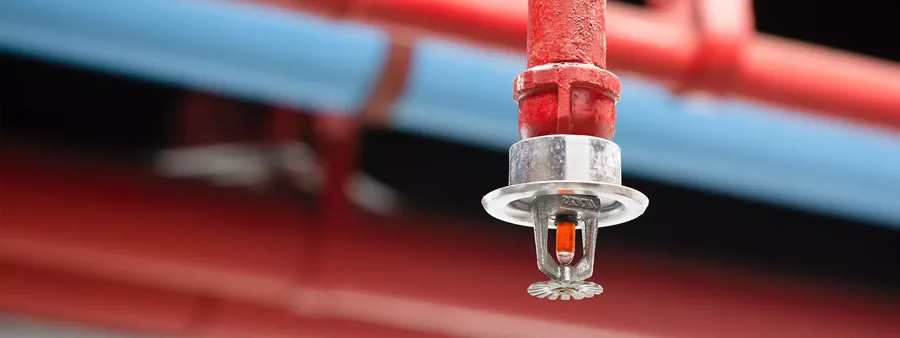

A fire sprinkler system is an active fire protection system installed inside buildings. It consists of a network of pipes connected to water supply, with sprinkler heads fixed at regular intervals across the ceiling. When heat from a fire reaches a certain temperature (typically 68°C), the sprinkler head closest to the fire activates automatically and discharges water directly over the fire.
Key facts about fire sprinkler systems:
Only the sprinkler head nearest to the fire activates — not the entire system
A sprinkler head discharges 40 to 60 litres of water per minute — far less than a fire hose
Sprinkler systems control fires in 96% of cases before the fire brigade arrives
Required under NBC 2016 and Madhya Pradesh fire safety rules for most commercial and multi-storey buildings
Types of Fire Sprinkler Systems
Different buildings require different types of sprinkler systems. Here are the four most common systems we install across Bhopal:
1. Wet Pipe Sprinkler System
The most common type in India. Pipes are permanently filled with pressurised water. When a sprinkler head activates, water discharges immediately. Ideal for offices, hotels, hospitals, shopping complexes, warehouses, and most commercial buildings in Bhopal.
Best for:
Commercial offices and IT parks
Hospitals and educational institutions
Hotels and residential buildings above 15 metres
2. Dry Pipe Sprinkler System
Pipes are filled with pressurised air or nitrogen instead of water. When a sprinkler head activates, the air releases, a valve opens, and water flows in. Used in areas where water in pipes would freeze or cause damage — cold storage units, car parking areas, and certain industrial zones.
3. Deluge System
All sprinkler heads are open and the system activates simultaneously when triggered by a fire detection signal. Used in high-hazard areas where fire can spread very rapidly — transformer rooms, fuel storage areas, aircraft hangars, and chemical plants.
4. Pre-Action System
A two-step activation system — both a fire detector and a sprinkler head must trigger before water is released. Ideal for server rooms, data centres, libraries, and archives where accidental water discharge would be extremely costly.
IS Code and NBC Requirements for Sprinkler Systems in MP
Fire sprinkler systems in India must comply with IS 15105 (Design and Installation of Fixed Automatic Sprinkler Fire Extinguishing Systems) and the National Building Code 2016. In Madhya Pradesh, the MP Fire Prevention and Fire Safety Act requires sprinkler systems in:
Buildings above 15 metres in height
Hotels with more than 15 rooms
Hospitals with more than 50 beds
Assembly halls and multiplexes with occupancy above 300
Warehouses and storage facilities above 1,000 sq metres
Industrial units classified as medium or high hazard
A working sprinkler system is mandatory for obtaining a Fire NOC in Bhopal for these building types. Without it, your NOC application will be rejected.
Fire Sprinkler System Installation Cost in Bhopal
The most common question we receive is: fire sprinkler system ka kharcha kitna hoga? The honest answer is that cost depends on several factors — building size, type of system, pipe material, hazard classification, and whether you need a dedicated pump set.
Typical cost ranges for Bhopal (as of 2025):
• Light hazard buildings (offices, hotels): Rs. 80 to Rs. 120 per sq ft
• Ordinary hazard buildings (retail, warehouses): Rs. 130 to Rs. 170 per sq ft
• High hazard buildings (factories, chemical storage): Rs. 190 to Rs. 250+ per sq ft
For a 10,000 sq ft commercial office in Bhopal, a complete wet pipe sprinkler system including design, supply, installation, testing, and commissioning typically costs between Rs. 7 lakh and Rs. 12 lakh.
What affects the final price:
GI pipe vs CPVC pipe (CPVC is faster to install but GI is more durable for larger systems)
Whether a new pump set and tank are required or existing infrastructure can be used
Ceiling type — concealed or exposed sprinkler heads affect cost
Number of zones and whether a zone control valve room is required
Site accessibility and floor count
FPS provides free site surveys and detailed BOQ before any commitment. Call us on +91 9244089060 to book your site visit.
How We Install Fire Sprinkler Systems in Bhopal
Our SITC (Supply, Installation, Testing, and Commissioning) process follows IS 15105 and NBC 2016 at every stage:
Site survey and hazard classification — we assess your building occupancy, ceiling height, fire load, and water supply availability
System design and drawing — we prepare hydraulically calculated drawings as per IS code, required for Fire NOC submission
BOQ and approval — detailed bill of quantities shared with you before work begins, no hidden costs
Supply of materials — GI or CPVC pipes, sprinkler heads (pendant, upright, sidewall), alarm valve, pump set, junction boxes
Installation by certified technicians — pipe laying, sprinkler head fitting, pump room setup
Hydrostatic pressure testing — system tested at 1.5 times working pressure per IS code
Commissioning and handover — full system demonstration, operator training, and as-built drawing handover
Annual Maintenance of Fire Sprinkler Systems (AMC)
Installing a sprinkler system is only the first step. A poorly maintained system can fail to operate when needed, or worse, cause accidental discharge. IS 15105 requires periodic inspection and testing of all sprinkler components. Our sprinkler AMC includes:
Quarterly inspection of all sprinkler heads for corrosion, paint, or obstruction
Annual flow testing of alarm valves and check valves
Pump set testing and servicing
Water tank inspection and level check
Maintenance report for Fire NOC renewal
FPS provides Fire AMC services across Bhopal, Sehore, Vidisha, Hoshangabad, and Raisen. Contact us for a tailored AMC quote.
Why Choose FPS as Your Sprinkler Contractor in Bhopal?
30+ years of experience — established in 1995, over 500 sprinkler projects completed across MP
IS code compliance — all designs are hydraulically calculated and draw-approved for Fire NOC submission
Trusted brands — we supply Minimax and Ceasefire sprinkler components, authorised dealers for Kartar Valves, Kanex and Savemax
Key clients — AIIMS Bhopal, NTPC, Power Grid, FCI, IISER Bhopal, Crompton Greaves, and Eicher Motors have trusted our sprinkler systems
One-stop-shop — design, supply, installation, testing, AMC, and NOC support all under one roof
Coverage across MP — serving Bhopal, Sehore, Vidisha, Hoshangabad, Raisen, Itarsi, and Narsinghpur
Frequently Asked Questions
Is a fire sprinkler system compulsory in Bhopal?
Yes, for most commercial and multi-storey buildings above 15 metres, sprinkler systems are mandatory under NBC 2016 and MP fire safety rules. Your Fire NOC application will require a completed and tested sprinkler system.
Will the entire sprinkler system activate in case of fire?
No. Only the sprinkler head directly above the fire activates. Each sprinkler head has an individual heat-sensitive bulb that bursts only when local temperature reaches the activation point. This minimises water damage to the rest of the building.
How long does installation take?
For a typical 10,000 sq ft floor, installation takes 7 to 12 working days depending on access, building structure, and material availability. Full SITC including testing and commissioning is usually completed within 3 to 6 weeks for medium-sized projects.
Can FPS install sprinklers in an existing building in Bhopal?
Yes. We regularly retrofit sprinkler systems into existing buildings for Fire NOC compliance or insurance requirements. Retrofit installation may require CPVC pipes which are easier to route through finished ceilings with minimal disruption.
Get a Free Sprinkler System Quote in Bhopal
Whether you need a new fire sprinkler system installed, want to retrofit an existing building, or need AMC for an existing system, FPS is ready to help.
• Call / WhatsApp: +91 9244089060
• Email: sales@fireprotectionsystem.co
• Website: fireprotectionsystem.co
• Service areas: Bhopal, Sehore, Vidisha, Hoshangabad, Raisen, Itarsi, Narsinghpur
Free site survey available. No obligation quote within 24 hours.
