Check valves, also called non return or reflux valves, let water flow one way and close when the flow reverses, so water in a hydrant or sprinkler main cannot run back through a stopped pump or into the supply. Fire Protection System supplies dual plate, single door, swing, lift and ball type check valves from Sant Valves, Kartar Valves, Zoloto and HD Fire in Bhopal and across Madhya Pradesh.
Sizes: 50 mm to 400 mm

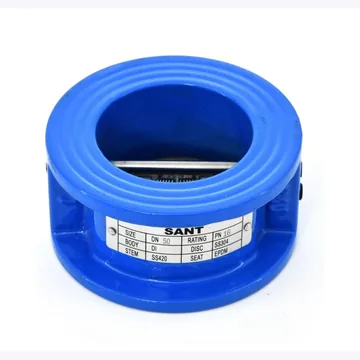

Spring loaded dual plate check valve with a cast iron body and SS 304 plates, clamped between ASME B 16.5 Class-150 flanges. PN-16, 50 mm to 400 mm.
Sizes: 219.1 mm, 273 mm, 323.9 mm, 377 mm

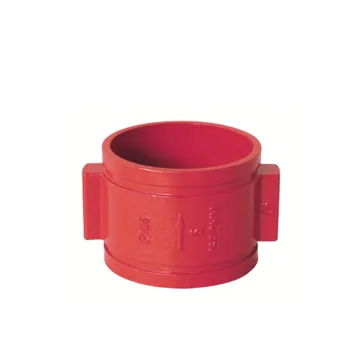

Double door check valve with grooved ends to ISO 6182 in a ductile iron body, for grooved water pipework. PN16, in sizes from 219.1 mm to 377 mm.
Sizes: 15 mm, 20 mm, 25 mm, 40 mm

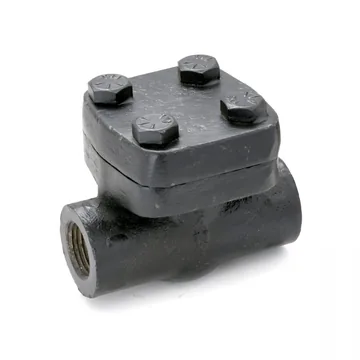

High pressure forged steel check valve conforming to BS-5352/API 602, Class 1500, with bolted cover and socket welded ends. Sizes 15 mm to 40 mm.
Sizes: 15 mm to 40 mm
Standard bore forged steel lift check valve to BS 5352/API 602, Class 800, with socket welded ends. Sizes 15 mm to 40 mm.
Sizes: 15 mm to 40 mm
Screwed end version of Sant's Class 800 forged steel lift check valve, to BS 5352/API 602, with female NPT threads. Sizes 15 mm to 40 mm.
Sizes: 25 mm to 300 mm

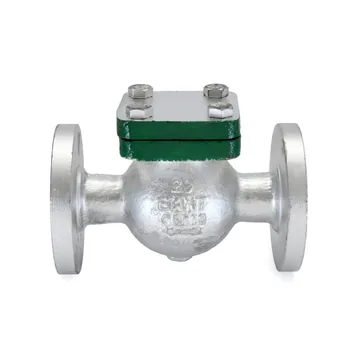

Cast carbon steel (ASTM A-216 Gr. WCB) swing check valve conforming to BS 1868/ANSI B 16.34, with bolted cover and Class-300 flanges. Sizes 25 mm to 300 mm.
Sizes: 15 mm to 50 mm

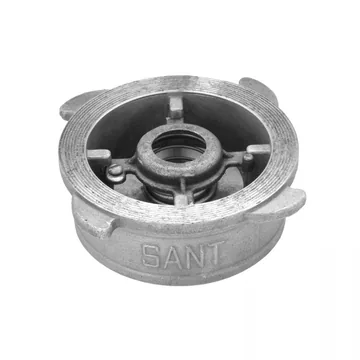

Spring loaded wafer disc check valve with body and disc in CF-8 stainless steel, rated PN-40. Clamps between Class-150, Class-300 or PN-40 flanges, 15 mm to 50 mm.
Sizes: 15 mm to 50 mm
Forged brass check valve with a brass disc sealed by an O ring and screwed BSP parallel ends. Sizes 15 mm to 50 mm.
Sizes: 15 mm, 20 mm, 25 mm

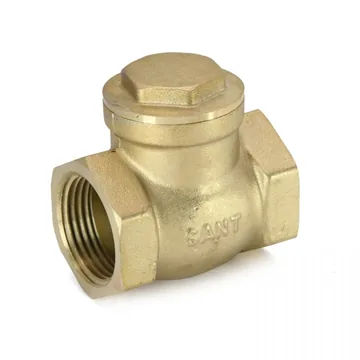

Small brass swing check valve with a brass disc and screwed BSP parallel ends, for small bore lines. Sizes 15 mm to 25 mm.
Sizes: 50 mm to 200 mm

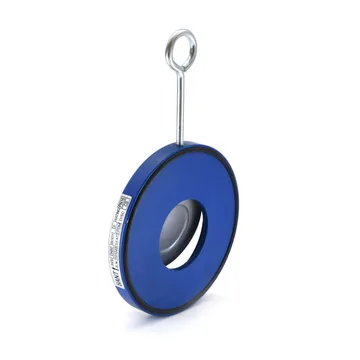

Single plate wafer check valve with a ductile iron body and nickel plated carbon steel plate, rated PN-16. Sizes 50 mm to 200 mm.
Sizes: 50 mm to 300 mm

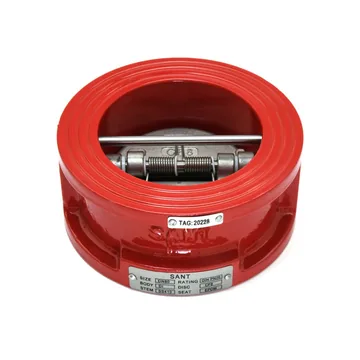

Higher rated dual plate check valve with a ductile iron body and SS 304 (CF-8) plates, spring loaded, for PN-25 lines. Sizes 50 mm to 300 mm.
Sizes: 50 mm to 400 mm

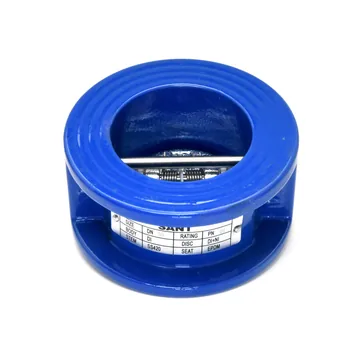

Spring loaded dual plate check valve with a cast iron body and ductile iron plates, clamped between ASME B 16.5 Class-150 flanges. PN-16, 50 mm to 400 mm.
Sizes: 15 mm to 100 mm

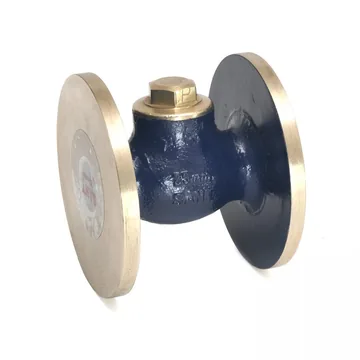

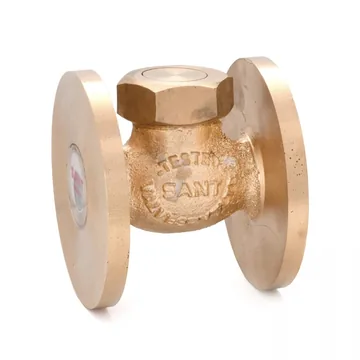

Gun metal horizontal lift check valve with a screwed on union cover, conforming to IS 778 Class 2, flanged to BS 10 Table F. Sizes 15 mm to 100 mm, for water, oil and steam.
Sizes: 15 mm to 100 mm

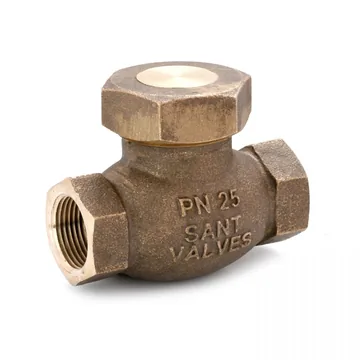

Screwed end union bonnet lift check valve in gun metal, conforming to IS 778 Class 2 and rated PN 25. Female BSP threads to BS 21, 15 mm to 100 mm, for water, oil and steam.
Sizes: 15 mm to 100 mm

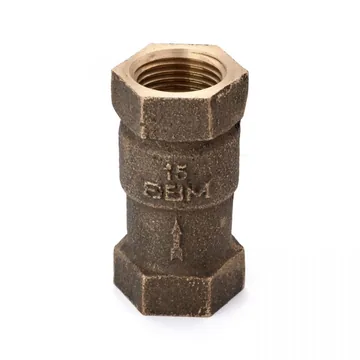

Standard pattern gun metal lift check valve for vertical pipes with upward flow, with female BSP threads to BS 21. Sizes 15 mm to 100 mm, for water and oil.
Sizes: 15 mm to 100 mm

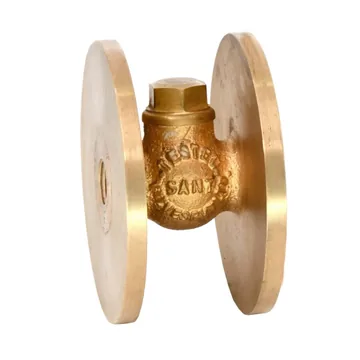

SBM No.9 heavy pattern gun metal lift check valve with a screwed in cover and flanges to BS 10 Table F. Sizes 15 mm to 100 mm, for water and oil.
Sizes: 8 mm to 100 mm

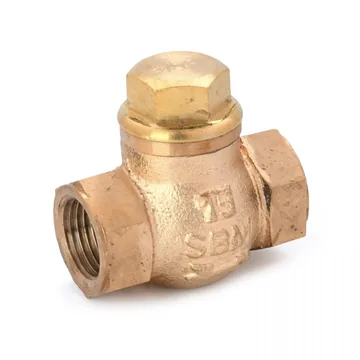

SBM No.5 heavy pattern gun metal lift check valve with female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water and oil.
Sizes: 15 mm to 100 mm
SBM No.8 standard pattern gun metal lift check valve with flanges to BS 10 Table D. Sizes 15 mm to 100 mm, for water and oil.
Sizes: 8 mm to 100 mm

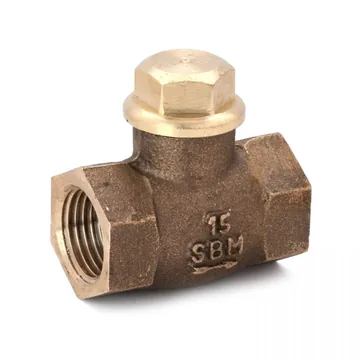

SBM No.4 standard pattern gun metal lift check valve with female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water and oil.
Sizes: 50 mm to 300 mm

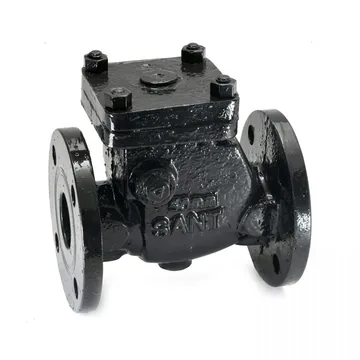

Cast iron swing check type reflux (non return) valve to IS 5312, rated PN16, with bolted cover and IS 1538 flanges. Sizes 50 mm to 300 mm, for water.
Sizes: 50 mm to 300 mm

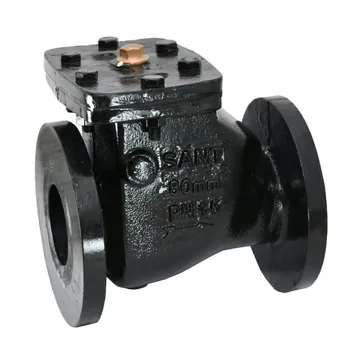

PN10 version of Sant's cast iron swing check type reflux (non return) valve to IS 5312, with bolted cover and IS 1538 flanges. Sizes 50 mm to 300 mm, for water.
Sizes: 15 mm to 50 mm
Leaded tin bronze swing check valve made as per IS-778 Class 2, with screwed in cover and female threads. Sizes 15 mm to 50 mm, for water and oil.
Sizes: 15 mm to 100 mm

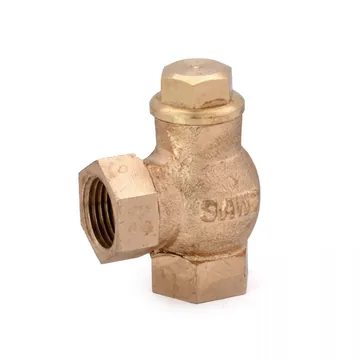

Gun metal angle type lift check valve that stops backflow and turns the line through a right angle. Screwed BSP ends, 15 mm to 100 mm, for water and oil.
Sizes: 15 mm to 50 mm

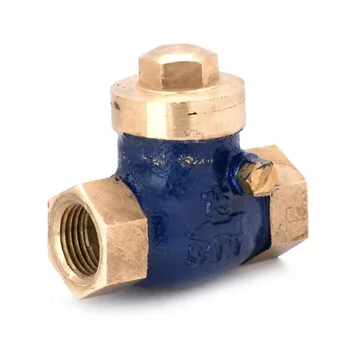

ISI marked gun metal swing check valve to IS 778 Class 1, with screwed in cover and screwed ends. Sizes 15 mm to 50 mm, for water and oil up to 45°C.
Sizes: 15 mm to 100 mm
ISI marked gun metal horizontal lift check valve to IS 778 Class 2 with flanged ends. Sizes 15 mm to 100 mm, for water and oil up to 45°C.
Sizes: 15 mm to 100 mm
ISI marked gun metal horizontal lift check valve to IS 778 Class 1 with flanged ends. Sizes 15 mm to 100 mm, for water and oil up to 45°C.
Sizes: 15 mm to 100 mm

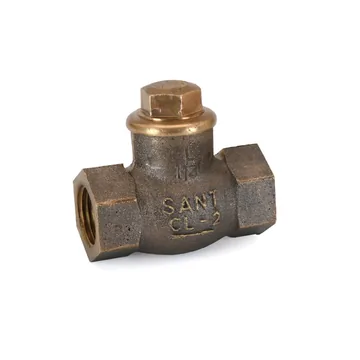

ISI marked gun metal horizontal lift check valve to IS 778 Class 2 with screwed ends. Sizes 15 mm to 100 mm, for water and oil up to 45°C.
Sizes: 15 mm to 100 mm

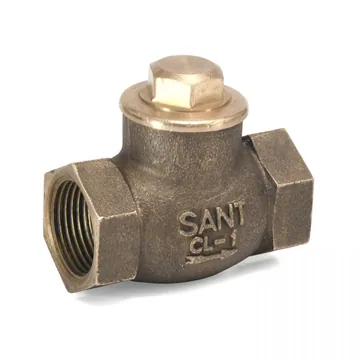

ISI marked gun metal horizontal lift check valve to IS 778 Class 1 with screwed ends. Sizes 15 mm to 100 mm, for water and oil up to 45°C.
Sizes: 15 mm to 100 mm

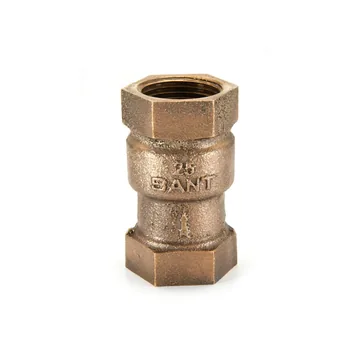

ISI marked gun metal lift check valve to IS 778 Class 1 for vertical pipes with upward flow. Screwed ends, 15 mm to 100 mm, for water and oil up to 45°C.

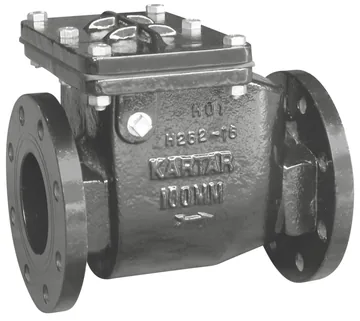

Cast iron swing type non return valve with flanged ends drilled to IS 1538 and an SS AISI 410 hinge pin, made to IS 5312 (Part-1) in PN 1.0. Rubber seat (K514) or gunmetal seat (K515), 50 mm to 500 mm.

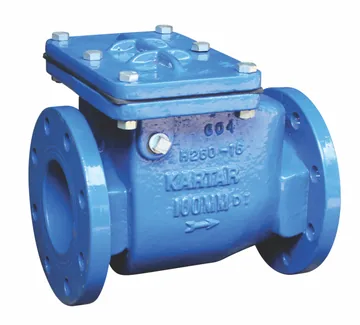

Ductile iron swing type non return valve with blue epoxy paint, flanged ends drilled to IS 1538 and an SS AISI 410 hinge pin, made to IS 5312 (Part-1) in PN 1.6. Rubber seat (K516) or gunmetal seat (K517), 50 mm to 500 mm.

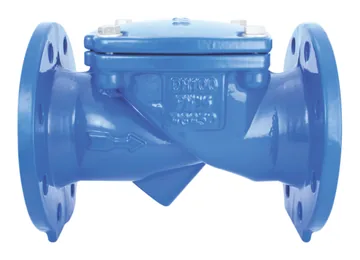

Ductile iron swing type NRV with an EPDM encapsulated DI door that seals softly against the body, 250 micron epoxy coating and flanged ends drilled to IS 1538, in PN1.6. Sizes 50, 80, 100, 150 and 200 mm.

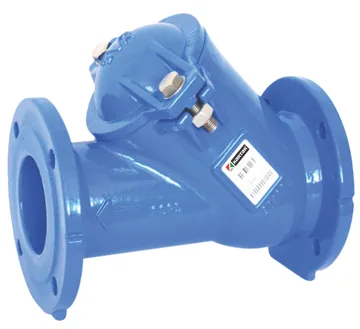

A ductile iron ball type check valve in which an EPDM encapsulated DI ball closes the flow path when the flow reverses, with 250 micron epoxy coating and flanged ends drilled to IS 1538, PN 1.6. Sizes 50 mm to 200 mm.

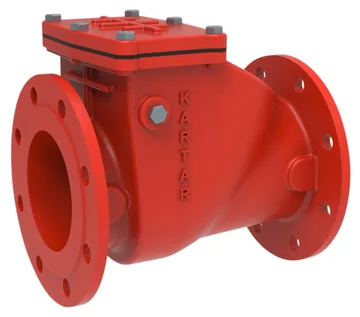

A red ductile iron non return (reflux) valve for fire lines, swing type with rubber seat and flanged ends, made to IS 5312 Part-I in PN 16. Sizes 50 mm to 200 mm, higher on request.

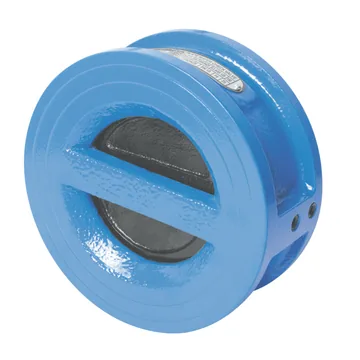

Wafer type dual plate check valve with stainless steel springs, an SS AISI 410 shaft and an integrally moulded Nitrile seal. In PN 1.0 with CI body and DI door (K711) or SS door (K711 S), or DI body with DI door (K712) or SS door (K712 S), plus a made to order PN2.0 DI version (K711-X).

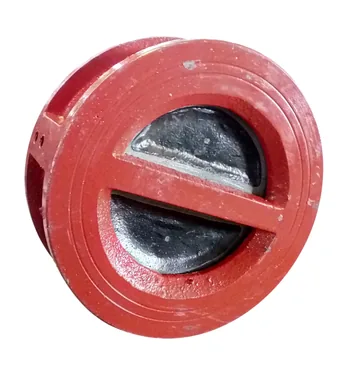

A red dual plate check valve for fire lines with a CI body, DI doors, Nitrile or EPDM seat and stainless steel shafts and springs, in PN 16. Sizes 50 mm to 200 mm, higher on request.

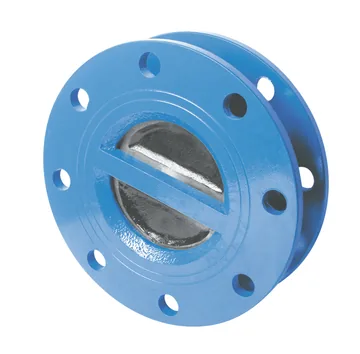

The flanged version of Kartar's dual plate check valve, with stainless steel springs, SS AISI 410 shaft and moulded Nitrile seal: CI body with DI door in PN 1.0 (K711, 250 and 300 mm) or DI body with DI door in PN 1.6 (K712, 250 mm to 600 mm); SS door versions K711 S and K712 S on request.

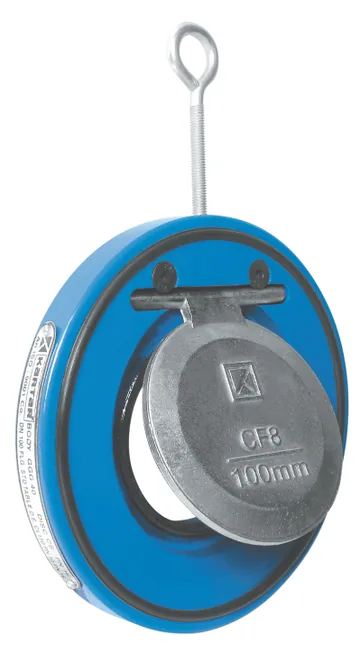

A compact wafer type single door check valve with a DI body, Nitrile O rings and seals and a seal moulded on the body. PN 1.0 with a DI or MS door (K710, 125 mm to 600 mm) or an SS CF8/304 door (K710S, 40 mm to 150 mm), and a made to order PN2.0 version (K710-X, 50 mm to 200 mm).

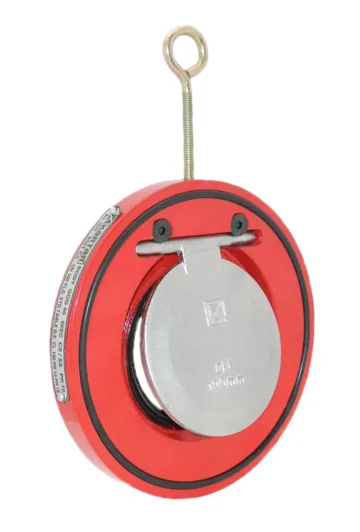

A red compact wafer type ductile iron check valve for fire lines in PN 16, with an SS disc up to 100 mm and an MS disc above 100 mm. Sizes 50 mm to 200 mm, higher on request.

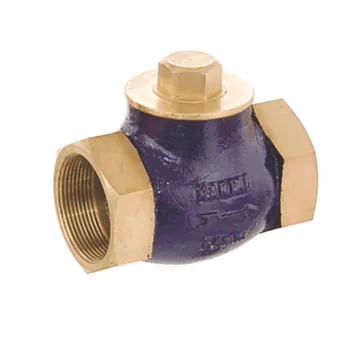

A gunmetal (bronze) horizontal check valve with screwed ends, made to IS 778 in PN1.0 (CI-I), in 15 mm to 100 mm.

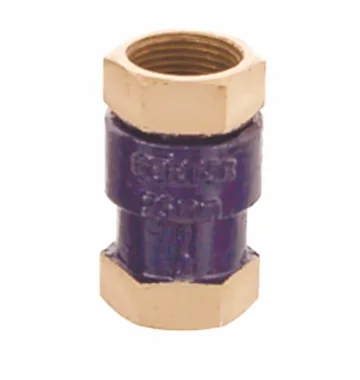

A gunmetal (bronze) vertical check valve with screwed ends, made to IS 778 in PN1.0 (CI-I), in 15 mm to 100 mm.
A cast steel swing type check valve with flanged ends drilled to CL-150, an SS AISI 410 hinge pin and SS-304 seating, made to BS 1868. Sizes 40 mm to 300 mm.
A cast steel swing type check valve with flanged ends drilled to CL-300, an SS AISI 410 hinge pin and SS-304 seating, made to BS 1868. Sizes 40 mm to 200 mm.
An investment cast stainless steel (CF8/304) non slam check valve of wafer type with a spring loaded design, in PN 40. Sizes 25, 40 and 50 mm.
Sizes: 15 mm to 100 mm

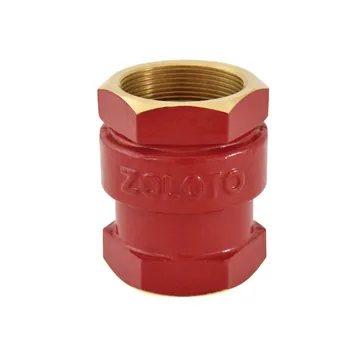

Single piece bronze check valve for vertical lines, spring loaded with an O ring seal, with female threaded ends from 15 mm to 100 mm.
Sizes: 15 mm to 50 mm

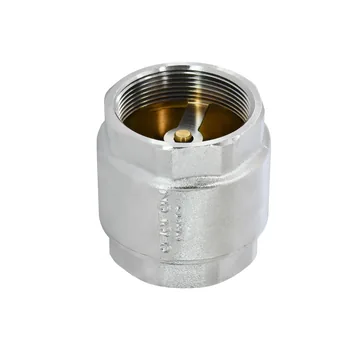

Chrome finished forged brass check valve that can be fitted in horizontal or vertical lines, with a screwed in bonnet and female threads, 15 mm to 50 mm.
Sizes: 8 mm to 100 mm

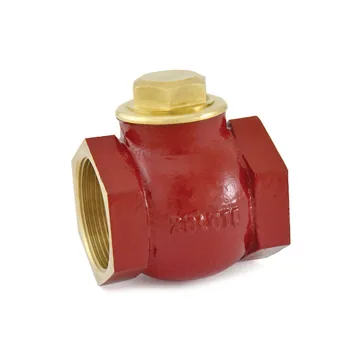

Medium pattern bronze lift check valve for horizontal lines, with a mushroom shaped metal disc and female threaded ends, 8 mm to 100 mm.
Sizes: 15 mm to 50 mm

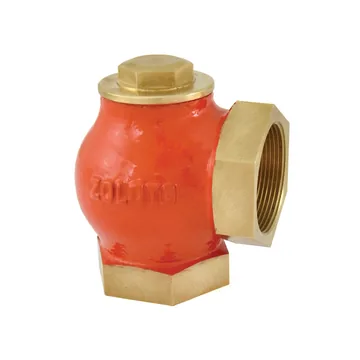

Angle pattern bronze lift check valve, with inlet and outlet at right angles, for turning a line through a corner. Medium pattern, 15 mm to 50 mm.
Sizes: 8 mm to 80 mm

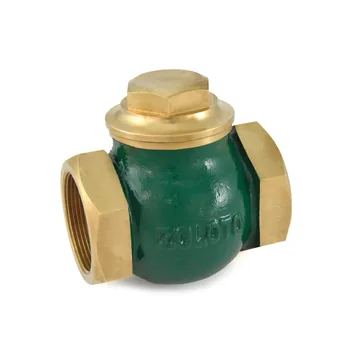

Heavy pattern bronze lift check valve (No.5) for horizontal lines, with female threaded ends, 8 mm to 80 mm.
Sizes: 15 mm to 50 mm

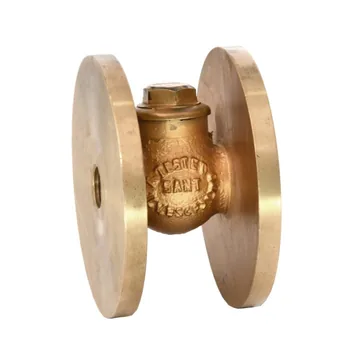

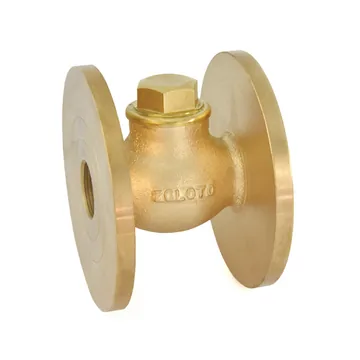

Medium pattern bronze lift check valve (No.8) for horizontal lines, flanged to BS 10 Table D, 15 mm to 50 mm.
Sizes: 8 mm to 100 mm

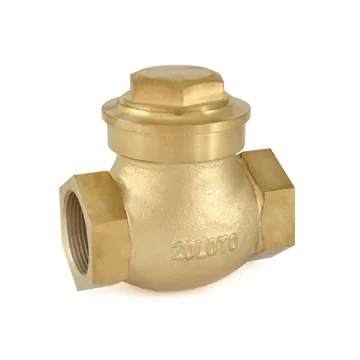

Bronze lift check valve (No.9) with renewable 13% chrome stainless steel (SS 410) working parts, rated for steam at 10.55 kg/cm²g (150 psig) and up to 225°C. Screwed, 8 mm to 100 mm.
Sizes: 15 mm to 100 mm

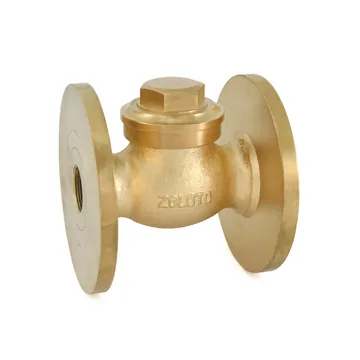

Flanged version of the No.9 bronze lift check valve, with SS 410 working parts and flanges to BS 10 Table F, rated for steam at 10.55 kg/cm²g (150 psig). Sizes 15 mm to 100 mm.
Sizes: 15 mm to 50 mm

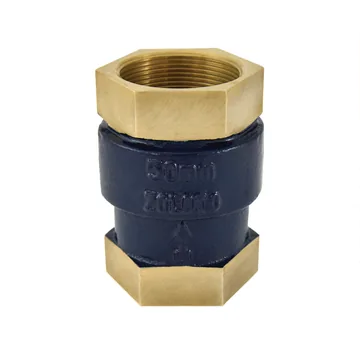

ISI marked bronze check valve for vertical lines, made to IS 778 Class 1, single piece, with female threaded ends from 15 mm to 50 mm.
Sizes: 15 mm to 100 mm

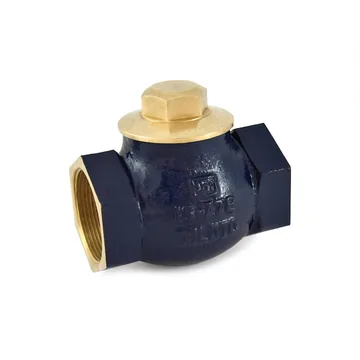

ISI marked bronze lift check valve for horizontal lines, made to IS 778 Class 1, with female threaded ends from 15 mm to 100 mm.
Sizes: 15 mm to 100 mm

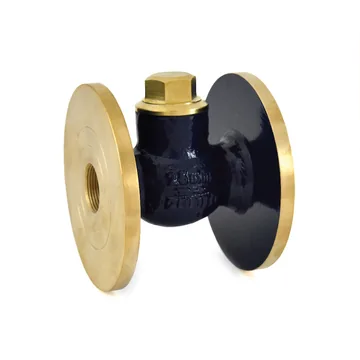

Flanged, ISI marked bronze lift check valve for horizontal lines, made to IS 778 Class 1 with IS 778 flanges, 15 mm to 100 mm.
Sizes: 40 mm to 350 mm

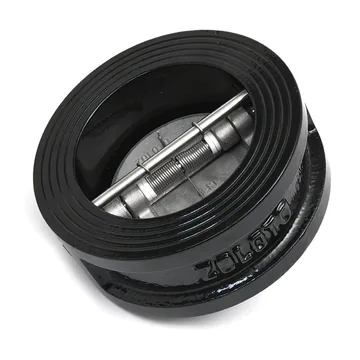

Cast iron dual plate check valve designed to API 594, slim enough to fit between two flanges, PN 16, from 40 mm to 350 mm. Listed for plumbing, fire fighting and HVAC.
Sizes: 40 mm to 600 mm

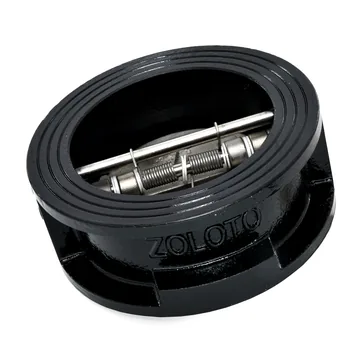

Ductile iron dual plate check valve with API 594 as its design reference, PN 16, in a wide size range from 40 mm to 600 mm. Listed for plumbing, fire fighting and HVAC.
Sizes: PN 1.0 to 300 mm

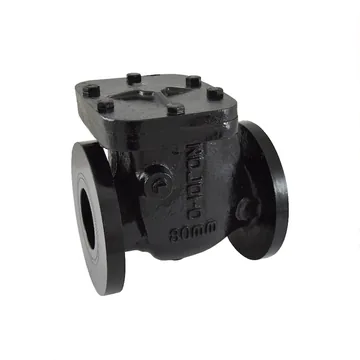

ISI marked cast iron swing type NRV made to IS 5312 Part 1, PN 1.0, flanged to IS 1538, from 50 mm to 300 mm. Listed for plumbing and fire fighting.
Sizes: PN 1.6 to 300 mm

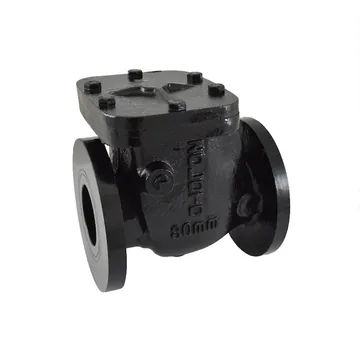

PN 1.6 version of Zoloto's ISI marked cast iron swing NRV to IS 5312 Part 1, flanged to IS 1538, 50 mm to 300 mm, for plumbing and fire fighting lines.
Sizes: PN 1.0 to 300 mm

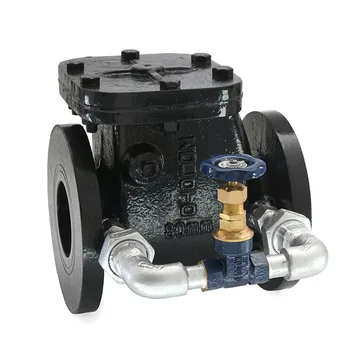

Cast iron swing NRV to IS 5312 Part 1, PN 1.0, with a bypass arrangement fitted around the main valve. ISI marked, flanged to IS 1538, 50 mm to 300 mm.
Sizes: PN 1.6 to 250 mm

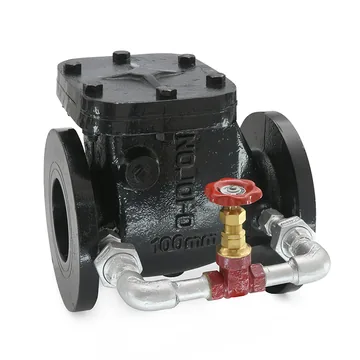

PN 1.6 cast iron swing NRV to IS 5312 Part 1 with a bypass arrangement, ISI marked, flanged to IS 1538, 50 mm to 250 mm.

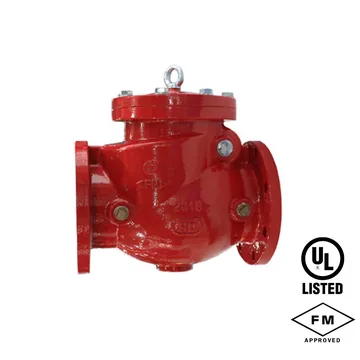

A swing check valve that lets water flow one way only, opening when flow pressure exceeds its cracking pressure and closing promptly when flow stops or reverses, to protect the system from back flow and pressure surges. It is UL Listed and FM Approved.
Start with the closing design. Dual plate wafer check valves close with two spring loaded half plates in a short body clamped between flanges, so they take little space in a pump room header: Sant Valves (DP, DP-1A, DP2), Kartar Valves (K711, K712 and the red K-937 for fire lines) and Zoloto (1082 in cast iron, 1082A in ductile iron, both designed to API 594) offer them. Swing check or reflux valves close with a hinged disc in a flanged body: HD Fire offers a ductile iron swing check valve that is UL Listed and FM Approved, rated 300 psi, in flanged and grooved types, and Sant Valves, Kartar Valves and Zoloto make swing NRVs to IS 5312. Kartar Valves also offers a ball type check valve (K520), compact single door wafer check valves (K710, K-936) and a stainless steel non slam check valve (K721).
Next match the size and pressure rating to the line, and choose a rating that covers the highest pressure your pump can produce. Swing NRVs to IS 5312 come in PN 1.0 and PN 1.6 from Kartar Valves (K514 to K517, 50 mm to 500 mm) and Zoloto (1083, 1083A, 50 mm to 300 mm), in PN10 and PN16 from Sant Valves (CR-31, CR-31A), and in PN 16 as the red Kartar Valves K-940. Dual plate valves reach 600 mm with the Zoloto 1082A and PN-25 with the Sant Valves DP2. For grooved pipework there are the HD Fire swing check and the Sant Valves DH87X double door check valve, PN16, from 219.1 mm to 377 mm. The Zoloto 1083B and 1083C add a bypass around the main valve.
For small bore lines, choose bronze, gun metal or brass. Sant Valves and Zoloto offer lift and swing check valves to IS 778 Class 1 and Class 2, many of them ISI marked, from 8 mm to 100 mm, and Kartar Valves offers gunmetal horizontal (K602) and vertical (K603) check valves to IS 778 from 15 mm to 100 mm. Sant Valves also lists brass check valves from 15 mm to 50 mm, and the Zoloto No.9 (1013, 1014) has SS 410 working parts for steam up to 225°C. For high pressure duty there are cast steel swing check valves to BS 1868 (Kartar Valves Class 150 and Class 300, Sant Valves CS-8A Class-300), forged steel lift check valves to BS 5352/API 602 (Sant Valves Class 800 and Class 1500) and stainless steel wafer check valves rated PN-40 (Sant Valves IC-2, Kartar Valves K721).
Finally match the ends and the pipe direction. Wafer bodies clamp between flanges, such as ASME B 16.5 Class-150 for the Sant Valves dual plate valves and ANSI B Class 125 / ASME B Class 150 for the Zoloto ones. IS 5312 valves have IS 1538 flanges, and bronze valves come flanged to BS 10 Table D or F or IS 778, or screwed with BS 21 or IS 554 threads. Fit horizontal lift check valves only in horizontal lines, and use a vertical type, such as the Sant Valves SBM-13 or IS-8, the Kartar Valves K603 or the Zoloto 1009 and 1037, in vertical pipes with upward flow.
