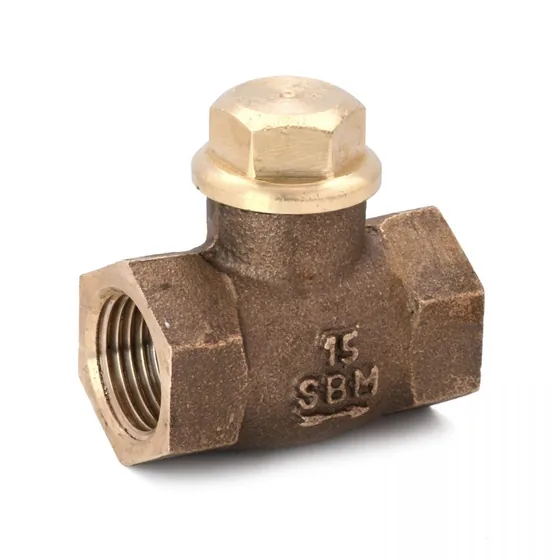

Authorised distributor for Sant ValvesSant Valves SBM-9 Bronze Horizontal Lift Check Valve No.4, Standard Pattern, Screwed
SBM No.4 standard pattern gun metal lift check valve with female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water and oil.
- Gun metal body to IS:318 Gr.LTB2, screwed in cover
- Integral seat, renewable disc, Cu-alloy trim
- Body test 21.09 kg/cm² (300 psig), seat test 14.06 kg/cm² (200 psig)
Sizes: 8 mm to 100 mm
Specifications
Specifications
| Specification | 8 mm | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 38 | 41 | 48 | 56 | 67 | 80 | 90 | 106 | 135 | 156 | 190 |
| H | 30 | 30 | 35 | 35 | 45 | 55 | 55 | 65 | 85 | 100 | 115 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
