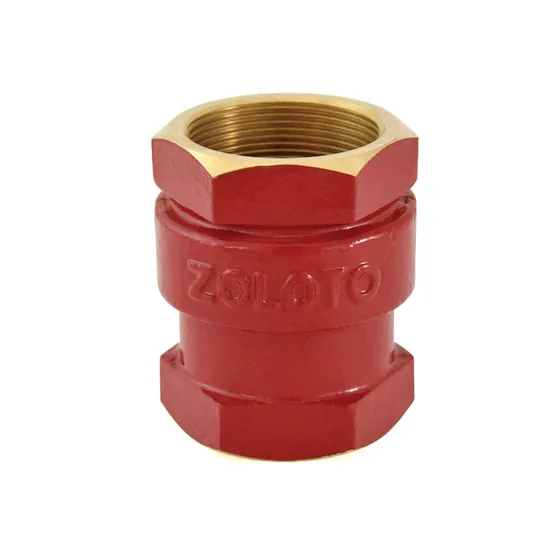

Dealer for ZolotoZoloto Bronze Vertical Check Valve, Spring Loaded, Screwed (1009)
Single piece bronze check valve for vertical lines, spring loaded with an O ring seal, with female threaded ends from 15 mm to 100 mm.
- Female threads to IS 554 / BS 21 / ISO 7
- Single piece design with integral seat
- Spring loaded, O ring type; metal to metal seating also available
- For vertical lines only
- Maximum working temperature 80°C
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 1009 |
|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
| A ±1.5 | 55 | 66 | 76 | 80 | 85 | 93 | 114 | 118 | 141 | |
| B | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | 2 1/2″ | 3″ | 4″ | |
| Shell | 25 kg/cm²g (350 psig) | |||||||||
| Seat | 16 kg/cm²g (225 psig) | |||||||||
| Maximum Working Temperature | 80°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
