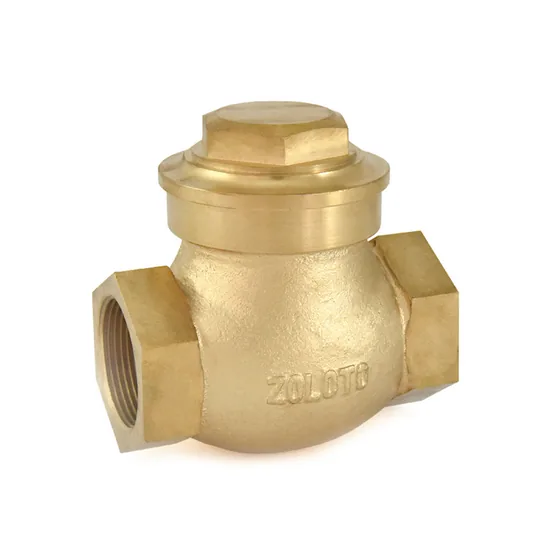

Dealer for ZolotoZoloto Bronze Horizontal Check Valve No.9, SS 410 Trim, Screwed (1013)
Bronze lift check valve (No.9) with renewable 13% chrome stainless steel (SS 410) working parts, rated for steam at 10.55 kg/cm²g (150 psig) and up to 225°C. Screwed, 8 mm to 100 mm.
- Renewable SS 410 (13% Cr) working parts
- Steam working pressure 10.55 kg/cm²g (150 psig)
- Maximum working temperature 225°C
- Female threads to IS 554 / BS 21 / ISO 7, screwed on bonnet
- Mushroom shaped metal disc guided in the bonnet; horizontal lines only
Sizes: 8 mm to 100 mm
Specifications
Specifications
| Specification | 8 mm | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 1013 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| Size (mm) | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
| A ±1.5 | 60 | 60 | 68 | 84 | 95 | 106 | 120 | 146 | 180 | 200 | 248 | |
| B ~ | 40 | 43 | 48 | 50 | 61 | 72 | 84 | 93 | 109 | 121 | 146 | |
| C | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | 2 1/2″ | 3″ | 4″ | |
| Shell | 35 kg/cm²g (500 psig) | |||||||||||
| Working Pressure (Steam) | 10.55 kg/cm²g (150 psig) | |||||||||||
| Maximum Working Temperature | 225°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
