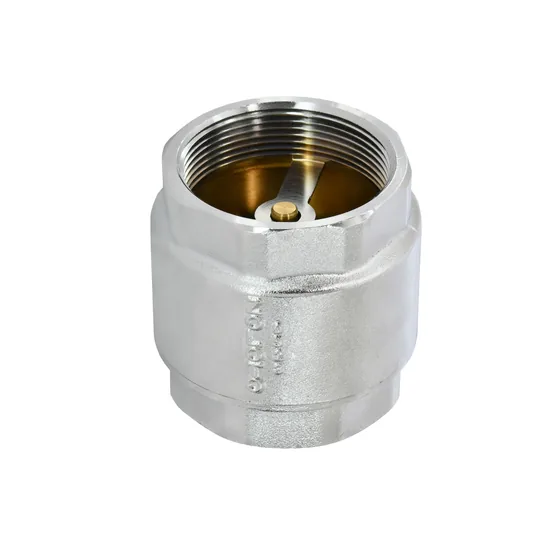

Dealer for ZolotoZoloto Forged Brass Multi Utility Check Valve, Screwed (1009A)
Chrome finished forged brass check valve that can be fitted in horizontal or vertical lines, with a screwed in bonnet and female threads, 15 mm to 50 mm.
- Suits both horizontal and vertical lines
- Female threads to IS 554 / BS 21 / ISO 7
- Screwed in bonnet; disc guided in body and bonnet
- Chrome finish
- Maximum working temperature 90°C
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 1009A |
|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
| Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | |
| A ±1.5 | 46 | 53 | 56 | 60 | 65 | 76 | |
| B | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | |
| Shell | 15 kg/cm²g (220 psig) | ||||||
| Seat | 10 kg/cm²g (150 psig) | ||||||
| Maximum Working Temperature | 90°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
