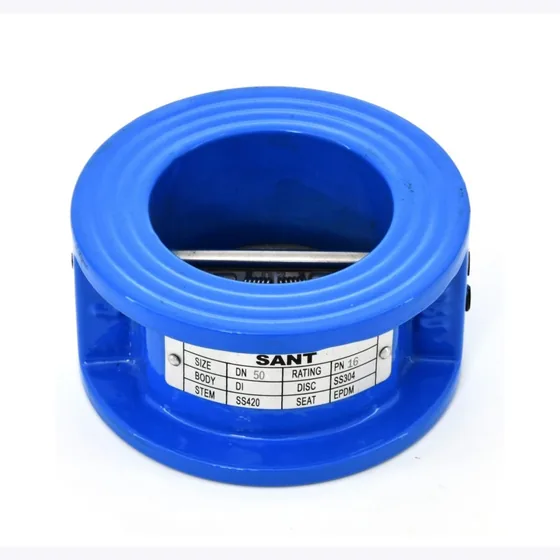

Authorised distributor for Sant ValvesSant Valves DP-1A Dual Plate Wafer Check Valve, Cast Iron, SS Plates, PN-16
Spring loaded dual plate check valve with a cast iron body and SS 304 plates, clamped between ASME B 16.5 Class-150 flanges. PN-16, 50 mm to 400 mm.
- Cast iron wafer body, EPDM rubber lined seat
- SS 304 plates, springs and pins
- Fits between flanges to ASME B 16.5 Class-150
- Body test 24 kg/cm², seat test 16 kg/cm²
Sizes: 50 mm to 400 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm | 350 mm | 400 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| F±2 | 54 | 54 | 57 | 64 | 70 | 76 | 95 | 108 | 145 | 185 | 188 |
| D | 107 | 127 | 142 | 164 | 192 | 218 | 273 | 328 | 378 | 438 | 487 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
