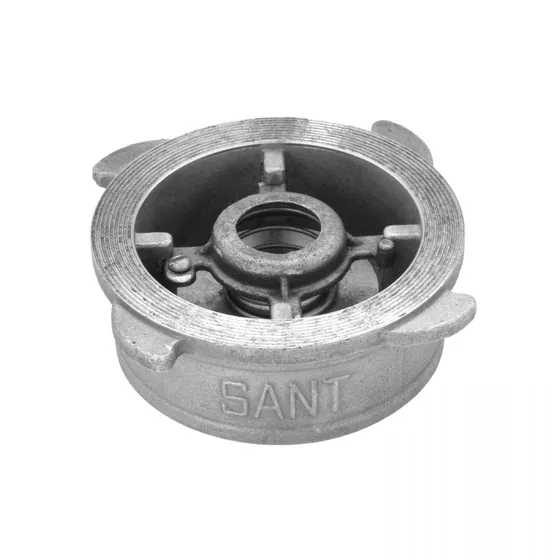

Authorised distributor for Sant ValvesSant Valves IC-2 Stainless Steel Wafer Disc Check Valve, PN-40
Spring loaded wafer disc check valve with body and disc in CF-8 stainless steel, rated PN-40. Clamps between Class-150, Class-300 or PN-40 flanges, 15 mm to 50 mm.
- CF-8 stainless steel body and disc
- Spring loaded disc in a short wafer body
- Fits flanges to ASME B 16.5 Class-150, Class-300 and PN-40
- Body test 60 barg, seat test 40 barg
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm |
|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
| A | 17±1.5 | 20±1.5 | 23±1.5 | 28±1.5 | 32±1.5 | 40±1.5 |
| B | 15 | 19 | 25 | 32 | 38 | 50 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
