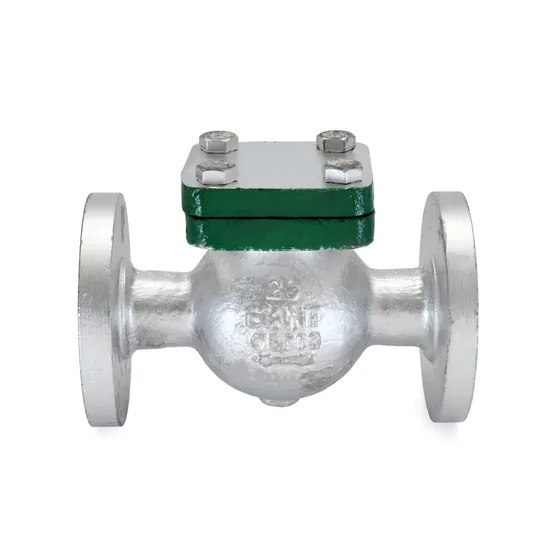

Authorised distributor for Sant ValvesSant Valves CS-8A Cast Steel Swing Check Valve, Class-300 Flanged
Cast carbon steel (ASTM A-216 Gr. WCB) swing check valve conforming to BS 1868/ANSI B 16.34, with bolted cover and Class-300 flanges. Sizes 25 mm to 300 mm.
- Renewable seat and renewable disc
- AISI 410 stainless steel hinge pin
- Flanges to ASME B 16.5 Class-300 R.F., undrilled
- Body test 76 barg (435 psig), seat test 56 barg (320 psig)
Standards and approvals: Conforming to BS 1868/ANSI B 16.34
Sizes: 25 mm to 300 mm
Specifications
Specifications
| Specification | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 |
| Nominal Size (Inches) | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| F±2 | 203 | 216 | 229 | 267 | 292 | 318 | 356 | 445 | 559 | 622 | 711 |
| H | 95 | 100 | 110 | 120 | 176 | 185 | 215 | 246 | 265 | 340 | 395 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
