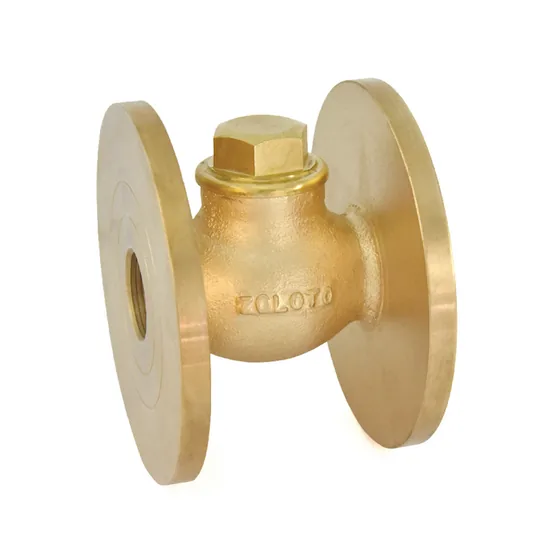

Dealer for ZolotoZoloto Bronze Horizontal Check Valve No.8, Flanged (1012)
Medium pattern bronze lift check valve (No.8) for horizontal lines, flanged to BS 10 Table D, 15 mm to 50 mm.
- Flanged ends to BS 10 Table D
- Screwed in bonnet, integral seat
- Mushroom shaped metal disc guided in body and bonnet
- For horizontal lines only; metal to metal seating also available
- Maximum working temperature 80°C
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 1012 |
|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
| Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | |
| A ±1.5 | 53 | 67 | 80 | 85 | 91 | 106 | |
| B ~ | 32 | 37 | 45 | 51 | 60 | 68 | |
| Shell | 24 kg/cm²g (340 psig) | ||||||
| Seat | 16 kg/cm²g (225 psig) | ||||||
| Maximum Working Temperature | 80°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
