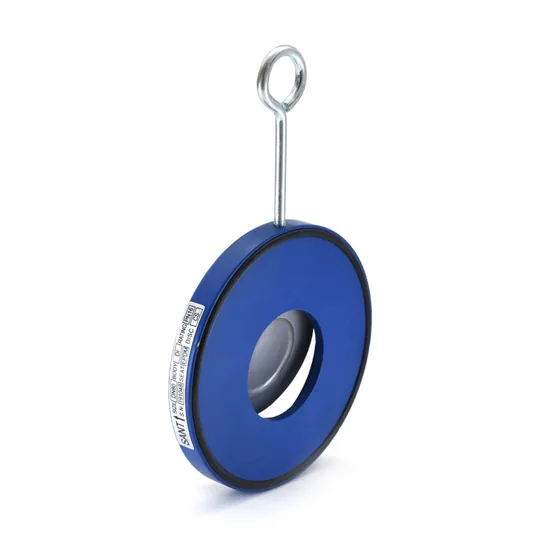

Authorised distributor for Sant ValvesSant Valves SP Single Plate Wafer Check Valve, Ductile Iron, PN-16
Single plate wafer check valve with a ductile iron body and nickel plated carbon steel plate, rated PN-16. Sizes 50 mm to 200 mm.
- Ductile iron wafer body
- Carbon steel plate with nickel plating, EPDM seat
- Body test 24 kg/cm², seat test 16 kg/cm²
Sizes: 50 mm to 200 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm |
|---|---|---|---|---|---|---|---|
| Size | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| ØD | 96 | 108 | 129 | 160 | 192 | 216 | 273 |
| F±2 | 14 | 14 | 14 | 18 | 18 | 20 | 22 |
| B | 32 | 40 | 54 | 70 | 92 | 114 | 154 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
