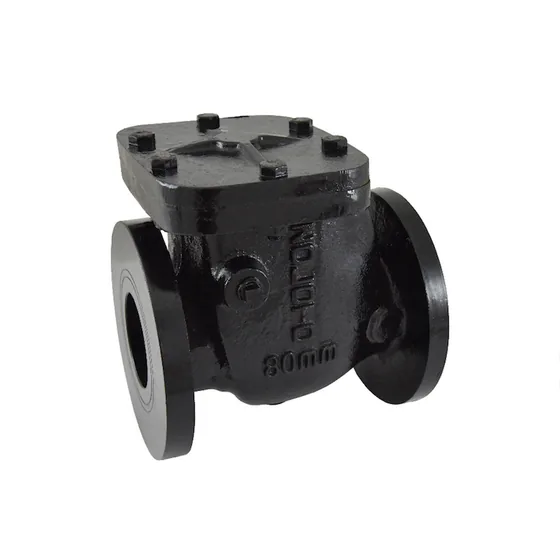

Dealer for ZolotoZoloto Cast Iron Swing Non Return Valve, PN 1.0, Flanged (1083)
ISI marked cast iron swing type NRV made to IS 5312 Part 1, PN 1.0, flanged to IS 1538, from 50 mm to 300 mm. Listed for plumbing and fire fighting.
- Design standard IS 5312 Part 1, ISI marked
- Flanged ends to IS 1538
- Swing type seating with a renewable seat and rubber flap
- Bolted cover
- Can be installed horizontally or vertically
- Maximum working temperature 80°C
Standards and approvals: IS 5312 to 1, ISI, IS:5312 (Part 1) PN 1.0
Sizes: PN 1.0 to 300 mm
Specifications
Specifications
| Specification | PN 1.0 | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|---|
| Shell | 1.5 MPa | |||||||||
| Seat | 1.0 MPa | |||||||||
| Maximum Working Temperature | 80°C | |||||||||
| Size (Inches) | 2* | 2 1/2* | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |
| Size (mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| A | 203 ±2 | 216 ±2 | 241 ±2 | 292 ±2 | 330 ±2 | 356 ±2 | 495 ±3 | 622 ±3 | 698 ±3 | |
| ØB | 165 (+1.5/-1.0) | 185 (+1.5/-1.0) | 200 ±4.5 | 220 ±4.5 | 250 ±4.5 | 285 (+5.5/-2.5) | 340 (+5.5/-2.5) | 395 (+5.5/-2.5) | 445 (+5.5/-2.5) | |
| C | 16 +2 | 16 +2 | 21 ±3 | 22 ±3 | 22.5 ±3 | 23 ±3 | 24.5 ±3 | 26 ±3 | 27.5 ±3 |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
