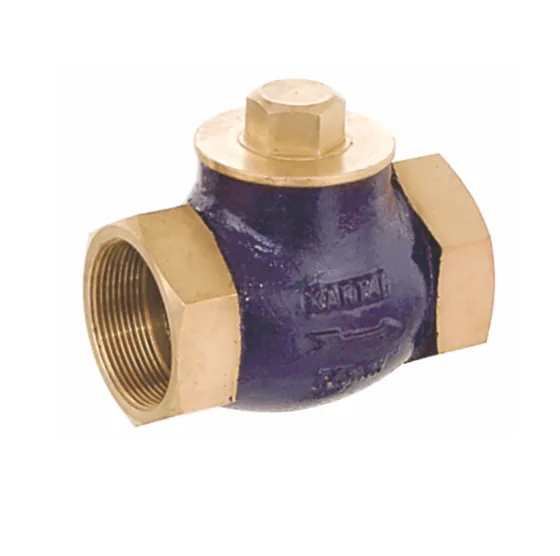

Kartar Valves Gunmetal Horizontal Check Valve, IS 778 (K602)

Kartar Valves CI Swing Non Return Valve, PN 1.0, IS 5312 (K514, K515)

Cast iron swing type non return valve with flanged ends drilled to IS 1538 and an SS AISI 410 hinge pin, made to IS 5312 (Part-1) in PN 1.0. Rubber seat (K514) or gunmetal seat (K515), 50 mm to 500 mm.

Kartar Valves DI Swing Non Return Valve, PN 1.6, Blue Epoxy, IS 5312 (K516, K517)

Ductile iron swing type non return valve with blue epoxy paint, flanged ends drilled to IS 1538 and an SS AISI 410 hinge pin, made to IS 5312 (Part-1) in PN 1.6. Rubber seat (K516) or gunmetal seat (K517), 50 mm to 500 mm.

Kartar Valves DI Resilient Seated Non Return Valve, PN1.6 (K517 D)

Ductile iron swing type NRV with an EPDM encapsulated DI door that seals softly against the body, 250 micron epoxy coating and flanged ends drilled to IS 1538, in PN1.6. Sizes 50, 80, 100, 150 and 200 mm.

Kartar Valves DI Ball Type Check Valve (NRV), PN 1.6 (K520)

A ductile iron ball type check valve in which an EPDM encapsulated DI ball closes the flow path when the flow reverses, with 250 micron epoxy coating and flanged ends drilled to IS 1538, PN 1.6. Sizes 50 mm to 200 mm.

Kartar Valves Red DI Swing Non Return Valve, Rubber Seat, PN 16, IS 5312 (K-940)

A red ductile iron non return (reflux) valve for fire lines, swing type with rubber seat and flanged ends, made to IS 5312 Part-I in PN 16. Sizes 50 mm to 200 mm, higher on request.

Kartar Valves Wafer Dual Plate Check Valve, CI or DI Body (K711, K712)

Wafer type dual plate check valve with stainless steel springs, an SS AISI 410 shaft and an integrally moulded Nitrile seal. In PN 1.0 with CI body and DI door (K711) or SS door (K711 S), or DI body with DI door (K712) or SS door (K712 S), plus a made to order PN2.0 DI version (K711-X).

Sant Valves DP-1A Dual Plate Wafer Check Valve, Cast Iron, SS Plates, PN-16

Sizes: 50 mm to 400 mm

Spring loaded dual plate check valve with a cast iron body and SS 304 plates, clamped between ASME B 16.5 Class-150 flanges. PN-16, 50 mm to 400 mm.

Sant Valves DH87X Double Door Check Valve, Grooved

Sizes: 219.1 mm, 273 mm, 323.9 mm, 377 mm

Double door check valve with grooved ends to ISO 6182 in a ductile iron body, for grooved water pipework. PN16, in sizes from 219.1 mm to 377 mm.

Zoloto Bronze Vertical Check Valve, Spring Loaded, Screwed (1009)

Sizes: 15 mm to 100 mm

Single piece bronze check valve for vertical lines, spring loaded with an O ring seal, with female threaded ends from 15 mm to 100 mm.

Zoloto Forged Brass Multi Utility Check Valve, Screwed (1009A)

Sizes: 15 mm to 50 mm

Chrome finished forged brass check valve that can be fitted in horizontal or vertical lines, with a screwed in bonnet and female threads, 15 mm to 50 mm.

HD Fire Swing Check Valve, Ductile Iron, UL Listed and FM Approved

A swing check valve that lets water flow one way only, opening when flow pressure exceeds its cracking pressure and closing promptly when flow stops or reverses, to protect the system from back flow and pressure surges. It is UL Listed and FM Approved.
