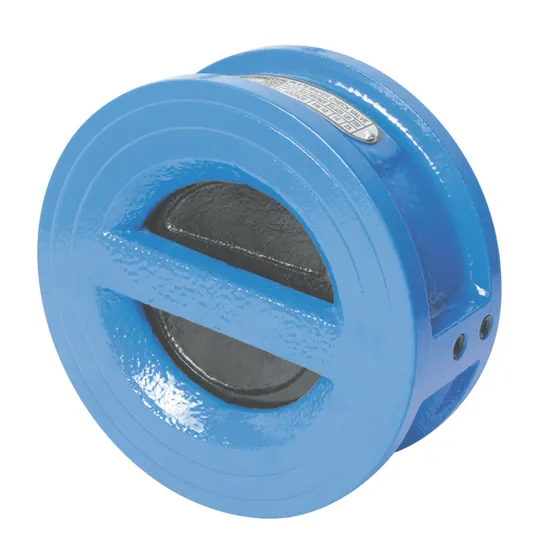

Authorised distributor for Kartar ValvesWafer type dual plate check valve with stainless steel springs, an SS AISI 410 shaft and an integrally moulded Nitrile seal. In PN 1.0 with CI body and DI door (K711) or SS door (K711 S), or DI body with DI door (K712) or SS door (K712 S), plus a made to order PN2.0 DI version (K711-X).
| Specification | K711-X | K711 | K711 S | K712 | K712 S |
|---|---|---|---|---|---|
| Item | Kartar Wafer type Dual Plate Check Valves | Kartar Wafer type Dual Plate Check valve in PN 1.0 | Kartar Wafer type Dual Plate Check valve in PN 1.0 | Kartar Wafer type Dual Plate Check valve in PN 1.0 | Kartar Wafer type Dual Plate Check valve in PN 1.0 |
| Group | HIGH PRESSURE VALVES | ||||
| Pressure rating | PN2.0 (Body-D.I.) | ||||
| Body | DI | ||||
| Seal | Nitrile integrally Moulded | Nitrile integrally Moulded | Nitrile integrally Moulded | Nitrile integrally Moulded | Nitrile integrally Moulded |
| Spring | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Shaft | SS(AISI 410) | SS(AISI 410) | SS(AISI 410) | SS(AISI 410) | SS(AISI 410) |
| Note | THESE PRODUCTS ARE MADE TO ORDER. | ||||
| Sizes (MM) | 50, 65, 80, 100, 125, 150, 200 | 50, 65, 80, 100, 125, 150, 200, 250, 300 | 50, 65, 80, 100, 150, 200 | 50, 65, 80, 100, 125, 150, 200, 250, 300 | 50, 65, 80, 100, 125, 150, 200 |
| Body / Door | Body CI / Door DI | Body CI / Door SS | Body DI / Door DI | Body DI / Door SS | |
| Sizes on request | 250, 300 | 250, 300 |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
Cast iron swing type non return valve with flanged ends drilled to IS 1538 and an SS AISI 410 hinge pin, made to IS 5312 (Part-1) in PN 1.0. Rubber seat (K514) or gunmetal seat (K515), 50 mm to 500 mm.
Ductile iron swing type non return valve with blue epoxy paint, flanged ends drilled to IS 1538 and an SS AISI 410 hinge pin, made to IS 5312 (Part-1) in PN 1.6. Rubber seat (K516) or gunmetal seat (K517), 50 mm to 500 mm.
Ductile iron swing type NRV with an EPDM encapsulated DI door that seals softly against the body, 250 micron epoxy coating and flanged ends drilled to IS 1538, in PN1.6. Sizes 50, 80, 100, 150 and 200 mm.
A ductile iron ball type check valve in which an EPDM encapsulated DI ball closes the flow path when the flow reverses, with 250 micron epoxy coating and flanged ends drilled to IS 1538, PN 1.6. Sizes 50 mm to 200 mm.
A red ductile iron non return (reflux) valve for fire lines, swing type with rubber seat and flanged ends, made to IS 5312 Part-I in PN 16. Sizes 50 mm to 200 mm, higher on request.
A red dual plate check valve for fire lines with a CI body, DI doors, Nitrile or EPDM seat and stainless steel shafts and springs, in PN 16. Sizes 50 mm to 200 mm, higher on request.
Sizes: 50 mm to 400 mm
Spring loaded dual plate check valve with a cast iron body and SS 304 plates, clamped between ASME B 16.5 Class-150 flanges. PN-16, 50 mm to 400 mm.
Sizes: 219.1 mm, 273 mm, 323.9 mm, 377 mm
Double door check valve with grooved ends to ISO 6182 in a ductile iron body, for grooved water pipework. PN16, in sizes from 219.1 mm to 377 mm.
Sizes: 15 mm to 100 mm
Single piece bronze check valve for vertical lines, spring loaded with an O ring seal, with female threaded ends from 15 mm to 100 mm.
Sizes: 15 mm to 50 mm
Chrome finished forged brass check valve that can be fitted in horizontal or vertical lines, with a screwed in bonnet and female threads, 15 mm to 50 mm.
A swing check valve that lets water flow one way only, opening when flow pressure exceeds its cracking pressure and closing promptly when flow stops or reverses, to protect the system from back flow and pressure surges. It is UL Listed and FM Approved.
