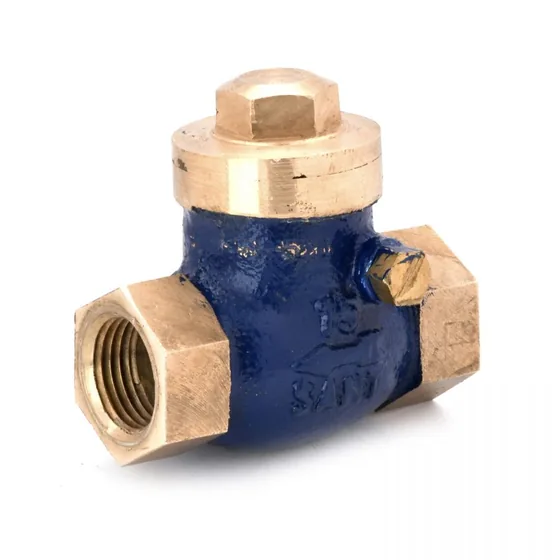

Authorised distributor for Sant ValvesSant Valves IS-16 Bronze Swing Check Valve, IS 778 Class 1, Screwed
ISI marked gun metal swing check valve to IS 778 Class 1, with screwed in cover and screwed ends. Sizes 15 mm to 50 mm, for water and oil up to 45°C.
- IS 778 Class 1, ISI marked
- Gun metal body to IS:318 Gr.LTB2, integral seat, Cu-alloy trim
- Female threads to IS:554 parallel
- Body test 1.5 MPa, seat test 1.0 MPa, maximum working temperature 45°C
Standards and approvals: IS-778, IS : 778 Class-1, ISI Marked
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm |
|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 |
| F | 65±1.5 | 75±1.5 | 95±1.5 | 105±1.5 | 125±1.5 | 150±1.5 |
| H (Approx.) | 42 | 50 | 63 | 65 | 85 | 93 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
