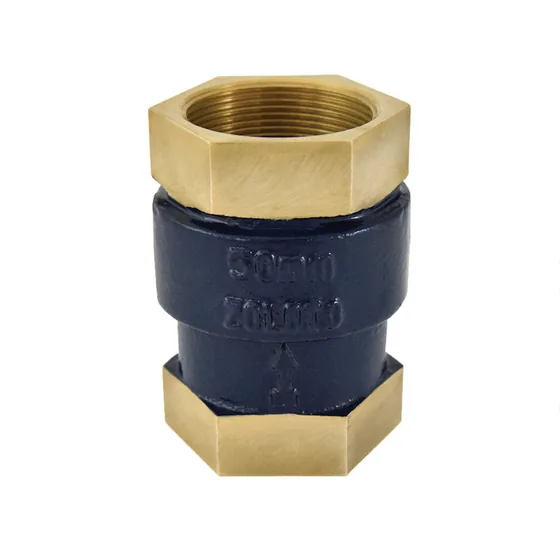

Dealer for ZolotoZoloto Bronze Vertical Check Valve, IS 778 Class 1, Screwed (1037)
ISI marked bronze check valve for vertical lines, made to IS 778 Class 1, single piece, with female threaded ends from 15 mm to 50 mm.
- Design standard IS 778, Class 1, ISI marked
- Female threads to IS 554 / BS 21 / ISO 7
- Single piece design
- For vertical lines only; metal to metal seating also available
- Maximum working temperature 45°C
Standards and approvals: IS 778, Class-1, ISI, IS:778 CL-1
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 1037 |
|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
| Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | |
| A ±1.5 | 65 | 70 | 75 | 85 | 95 | 110 | |
| B | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | |
| Shell | 1.5 MPa | ||||||
| Seat | 0.25 MPa | ||||||
| Maximum Working Temperature | 45°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
