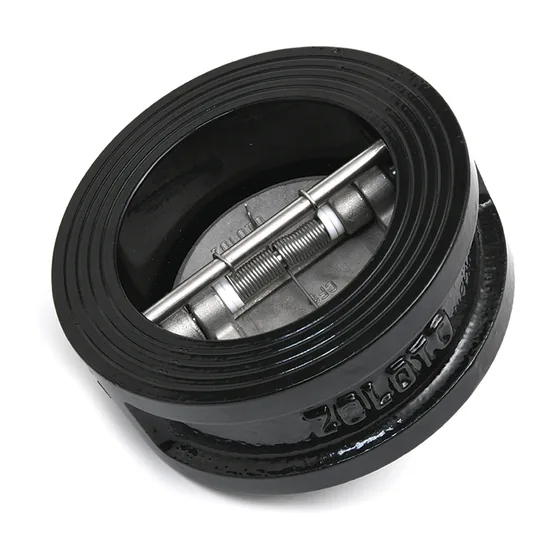

Dealer for ZolotoZoloto Cast Iron Dual Plate Wafer Check Valve, PN 16 (1082)
Cast iron dual plate check valve designed to API 594, slim enough to fit between two flanges, PN 16, from 40 mm to 350 mm. Listed for plumbing, fire fighting and HVAC.
- Design standard API 594, wafer type
- Two spring assisted half plates that limit water hammer
- Bronze or stainless steel to rubber seat contact
- Fits flanges drilled to ANSI B Class 125 / ASME B Class 150
- Takes less space than a conventional swing check valve
- Maximum working temperature 80°C
Standards and approvals: API 594
Sizes: 40 mm to 350 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm | 350 mm | 1082 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14* | |
| Size (mm) | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350* | |
| A | 50 | 54 | 60 | 67 | 67 | 83 | 95 | 127 | 140 | 181 | 184 | |
| ØB | 92 | 101 | 120 | 133 | 171 | 193 | 218 | 276 | 336 | 406 | 451 | |
| ØC | 56 | 60 | 73 | 89 | 114 | 141 | 168 | 219 | 273.5 | 324 | 357 | |
| Shell | 24.50 kg/cm²g (350 psig) | |||||||||||
| Seat | 16 kg/cm²g (230 psig) | |||||||||||
| Maximum Working Temperature | 80°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
