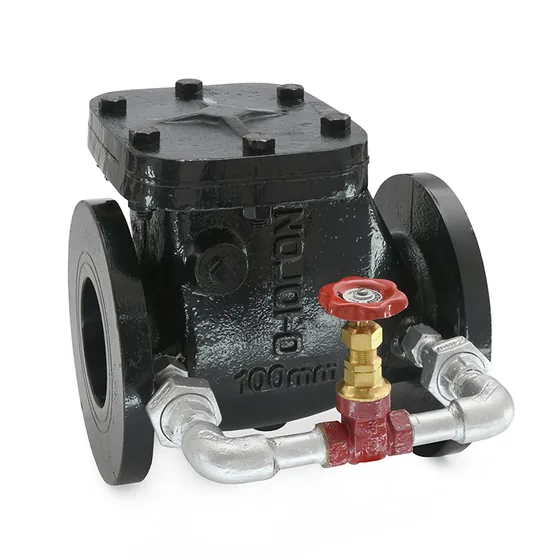

Dealer for ZolotoZoloto Cast Iron Swing NRV with Bypass, PN 1.6, Flanged (1083C)
PN 1.6 cast iron swing NRV to IS 5312 Part 1 with a bypass arrangement, ISI marked, flanged to IS 1538, 50 mm to 250 mm.
- Bypass arrangement around the main valve
- Design standard IS 5312 Part 1, ISI marked
- Flanged ends to IS 1538, bolted cover
- Swing type seating with a renewable seat and rubber flap
- Can be installed horizontally or vertically; maximum working temperature 80°C
Standards and approvals: IS 5312 to 1, ISI, IS:5312 (Part 1) PN 1.6
Sizes: PN 1.6 to 250 mm
Specifications
Specifications
| Specification | PN 1.6 | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm |
|---|---|---|---|---|---|---|---|---|---|
| Shell | 2.4 MPa | ||||||||
| Seat | 1.6 MPa | ||||||||
| Maximum Working Temperature | 80°C | ||||||||
| Size (Inches) | 2* | 2 1/2* | 3 | 4 | 5 | 6 | 8 | 10 | |
| Size (mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | |
| A | 203 ±2 | 216 ±2 | 241 ±2 | 292 ±2 | 330 ±2 | 356 ±2 | 495 ±3 | 622 ±3 | |
| ØB | 165 (+1.5/-1.0) | 185 (+1.5/-1.0) | 200 ±4.5 | 220 ±4.5 | 250 ±4.5 | 285 (+5.5/-2.5) | 340 (+5.5/-2.5) | 395 (+5.5/-2.5) | |
| C | 16 +2 | 16 +2 | 21 ±3 | 22 ±3 | 22.5 ±3 | 23 ±3 | 24.5 ±3 | 26 ±3 | |
| By Pass Size | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1″ | 1″ |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
