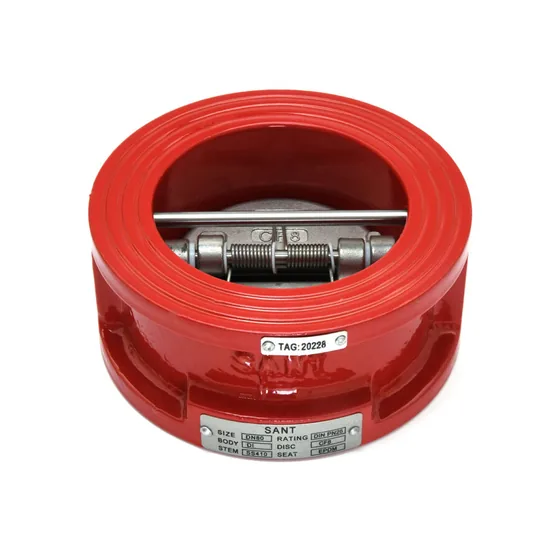

Authorised distributor for Sant ValvesSant Valves DP2 Dual Plate Wafer Check Valve, Ductile Iron, PN-25
Higher rated dual plate check valve with a ductile iron body and SS 304 (CF-8) plates, spring loaded, for PN-25 lines. Sizes 50 mm to 300 mm.
- Ductile iron wafer body, EPDM rubber lined seat
- SS 304 (CF-8) plates, stainless springs and pins
- Fits between flanges to ASME B 16.5 Class-150
- Body test 3.8 MPa, seat test 2.7 MPa
Sizes: 50 mm to 300 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|
| Size | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| F±2 | 43 | 46 | 64 | 64 | 70 | 76 | 89 | 114 | 143 |
| D | 107 | 127 | 142 | 168 | 193 | 223 | 283 | 340 | 390 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
