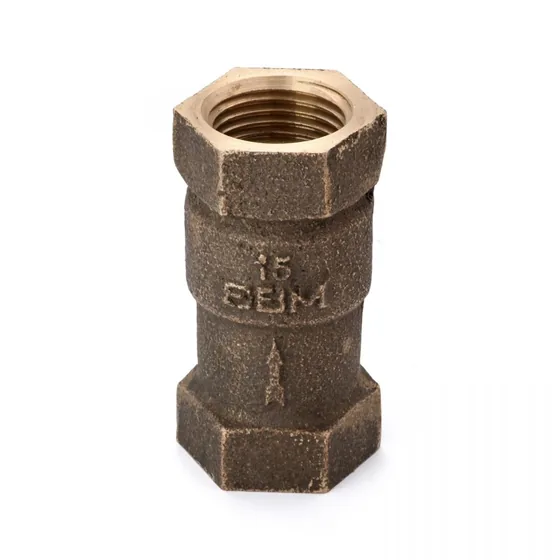

Authorised distributor for Sant ValvesSant Valves SBM-13 Bronze Vertical Lift Check Valve, Screwed BSP
Standard pattern gun metal lift check valve for vertical pipes with upward flow, with female BSP threads to BS 21. Sizes 15 mm to 100 mm, for water and oil.
- Gun metal body to IS:318 Gr.LTB2
- Integral seat, renewable disc, Cu-alloy trim
- Body test 21.09 kg/cm² (300 psig), seat test 14.06 kg/cm² (200 psig)
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 55 | 65 | 70 | 80 | 85 | 95 | 130 | 145 | 190 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
