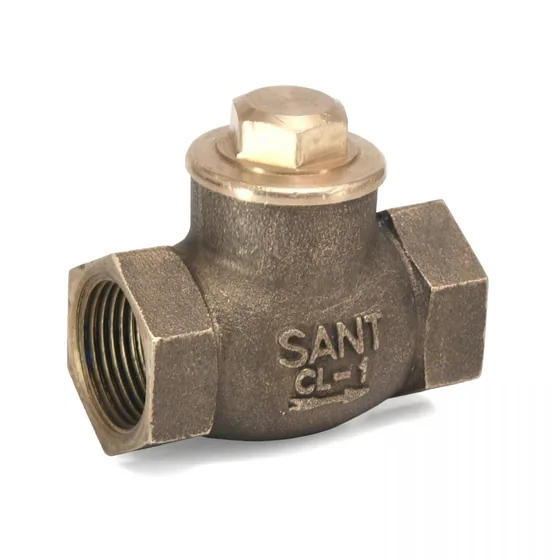

Authorised distributor for Sant ValvesSant Valves IS-14 Bronze Horizontal Lift Check Valve, IS 778 Class 1, Screwed
ISI marked gun metal horizontal lift check valve to IS 778 Class 1 with screwed ends. Sizes 15 mm to 100 mm, for water and oil up to 45°C.
- IS 778 Class 1, ISI marked
- Gun metal body to IS:318 Gr.LTB2, integral seat, Cu-alloy trim
- Female threads to IS:554 parallel
- Body test 1.5 MPa, seat test 1.0 MPa
Standards and approvals: IS-778, IS : 778 Class-1, ISI Marked
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 60±1.5 | 70±1.5 | 80±1.5 | 95±1.5 | 110±1.5 | 125±1.5 | 160±1.5 | 180±1.5 | 216±1.5 |
| H (Approx.) | 36 | 40 | 51 | 60 | 70 | 75 | 90 | 102 | 125 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
