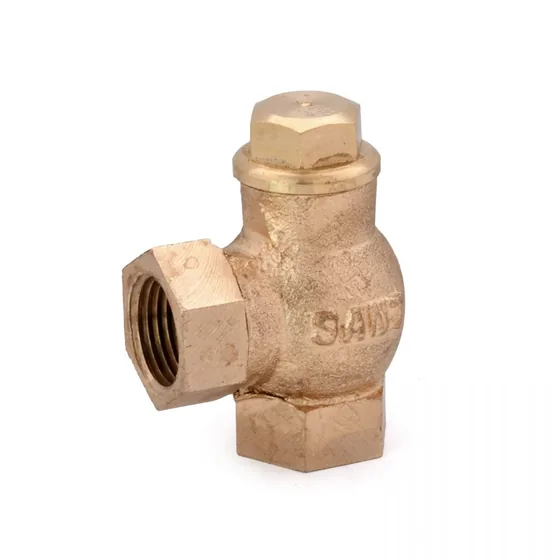

Authorised distributor for Sant ValvesSant Valves IS-23 Bronze Right Angle Lift Check Valve, Screwed
Gun metal angle type lift check valve that stops backflow and turns the line through a right angle. Screwed BSP ends, 15 mm to 100 mm, for water and oil.
- Gun metal body to IS:318 Gr.LTB2, angle pattern
- Screwed in cover, integral seat, Cu alloy trim
- Female BSP parallel threads
- Body test 300 psig, seat test 200 psig
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 28±1.5 | 38±1.5 | 47±1.5 | 52±1.5 | 56±1.5 | 62±1.5 | 80±1.5 | 90±1.5 | 110±1.5 |
| H (Approx.) | 35 | 43 | 55 | 60 | 66 | 75 | 88 | 100 | 115 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
