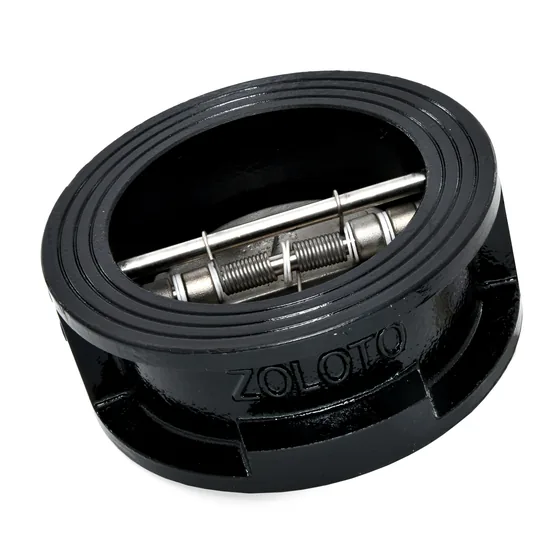

Dealer for ZolotoZoloto Ductile Iron Dual Plate Wafer Check Valve, PN 16 (1082A)
Ductile iron dual plate check valve with API 594 as its design reference, PN 16, in a wide size range from 40 mm to 600 mm. Listed for plumbing, fire fighting and HVAC.
- Design reference standard API 594, wafer type
- Two spring assisted half plates that limit water hammer
- Stainless steel to rubber seat contact
- Fits flanges drilled to ANSI B Class 125 / ASME B Class 150
- Working temperature -18°C to 80°C
Standards and approvals: API 594
Sizes: 40 mm to 600 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm | 350 mm | 400 mm | 450 mm | 500 mm | 600 mm | 1082A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | |
| Size (mm) | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| A±1.5 | 50 | 54 | 60 | 67 | 67 | 83 | 95 | 127 | 140 | 181 | 184 | 191 | 203 | 213 | 222 | |
| ØB±2 | 92 | 101 | 120 | 132 | 170 | 192 | 218 | 275 | 335 | 405 | 447 | 510 | 544 | 601 | 713 | |
| Shell | 24 bar | |||||||||||||||
| Seat | 17.6 bar | |||||||||||||||
| Maximum Working Temperature | -18°C to 80°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
