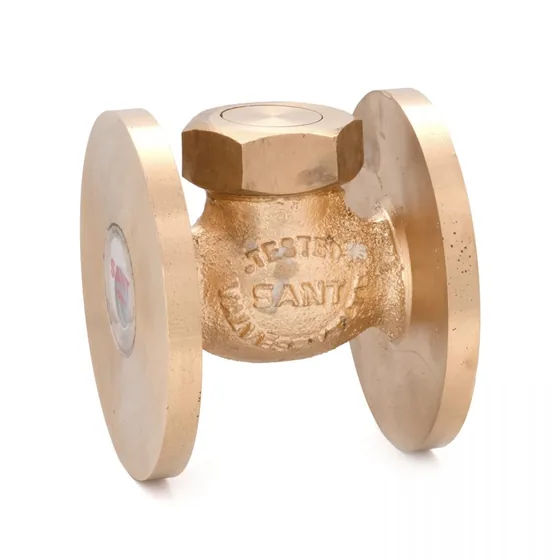

Authorised distributor for Sant ValvesSant Valves SBM-17 Bronze Union Bonnet Horizontal Lift Check Valve, Flanged
Gun metal horizontal lift check valve with a screwed on union cover, conforming to IS 778 Class 2, flanged to BS 10 Table F. Sizes 15 mm to 100 mm, for water, oil and steam.
- Gun metal body to IS:318 Gr.LTB2
- Renewable seat and renewable disc, SS AISI410 trim
- Flanges to BS 10 Table F, undrilled
- Body test 42 kg/cm² (600 psig), seat test 25 kg/cm² (355 psig)
Standards and approvals: Conforming to IS:778 Class 2
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 80 | 95 | 115 | 130 | 145 | 170 | 205 | 225 | 280 |
| H | 45 | 51 | 60 | 70 | 80 | 100 | 100 | 120 | 145 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
