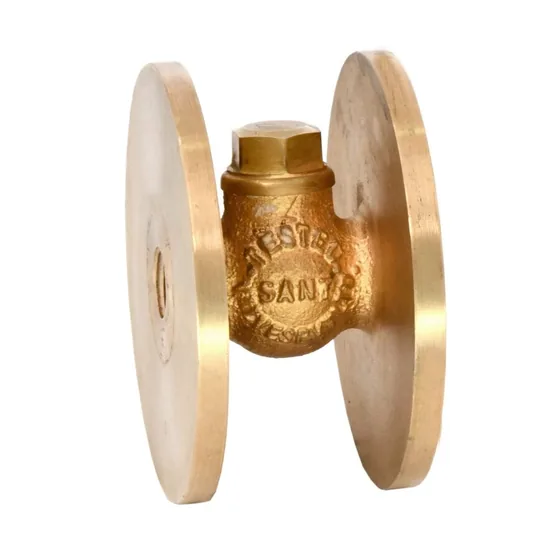

Authorised distributor for Sant ValvesSant Valves SBM-12 Bronze Horizontal Lift Check Valve No.9, Heavy Pattern, Flanged
SBM No.9 heavy pattern gun metal lift check valve with a screwed in cover and flanges to BS 10 Table F. Sizes 15 mm to 100 mm, for water and oil.
- Gun metal body to IS:318 Gr.LTB2
- Integral seat, renewable disc, Cu-alloy trim
- Flanges to BS 10 Table F, undrilled
- Body test 35.15 kg/cm² (500 psig), seat test 21.09 kg/cm² (300 psig)
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 55 | 64 | 76 | 86 | 102 | 110 | 156 | 176 | 210 |
| H | 38 | 43 | 55 | 55 | 60 | 75 | 90 | 105 | 120 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
