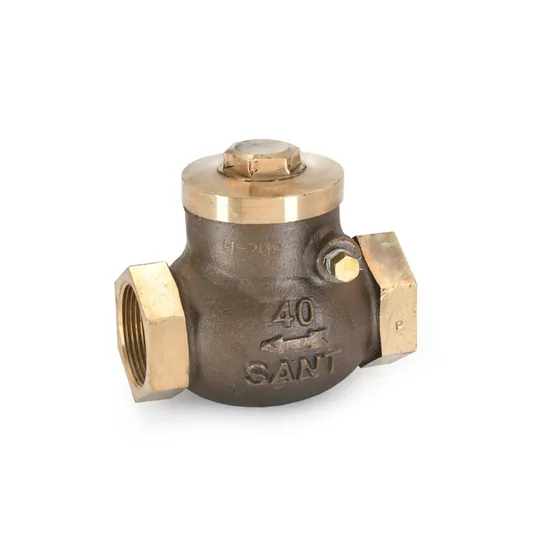

Authorised distributor for Sant ValvesSant Valves IS-35A Bronze Swing Check Valve, IS 778 Class 2, Screwed
Leaded tin bronze swing check valve made as per IS-778 Class 2, with screwed in cover and female threads. Sizes 15 mm to 50 mm, for water and oil.
- Leaded tin bronze body to IS:318 Gr.LTB2
- Integral seat, Cu-alloy trim
- Female threads to IS-554 parallel
- Body test 2.4 MPa, seat test 1.6 MPa
Standards and approvals: As per IS-778, IS : 778 Class-2
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm |
|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 |
| F | 65±1.5 | 75±1.5 | 95±1.5 | 105±1.5 | 125±1.5 | 150±1.5 |
| H (Approx.) | 45 | 50 | 60 | 65 | 85 | 93 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
