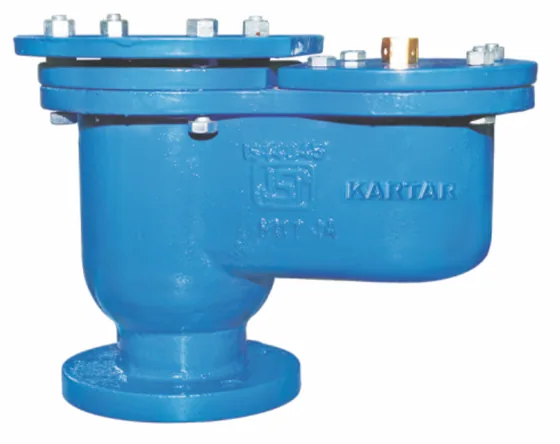

Authorised distributor for Kartar ValvesA cast iron double orifice kinetic air valve with flanged ends, made to IS 14845 Type DK in PN 1.0, with rubber floats (K541) or SS floats (K542). Sizes 40 mm to 200 mm.
Standards and approvals: IS:14845
| Specification | K541 | K542 |
|---|---|---|
| Item | Kartar CI Double Orifice Kinetic Air Valve PN 1.0 | Kartar CI Double Orifice Kinetic Air Valve PN 1.0 |
| Variant | with Rubber Floats | with SS Floats |
| Ends | Flanged | Flanged |
| Orifice | Double | Double |
| Design Std | IS:14845 Type : DK | IS:14845 Type : DK |
| Sizes (MM) | 40, 50, 80, 100, 150, 200 | 40, 50, 80, 100, 150, 200 |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
A cast iron single orifice kinetic air valve with screwed ends, made to IS 14845 Type S1 and S2 in PN 1.0, with rubber floats (K543) or SS floats (K544). Sizes 15 mm to 50 mm.
A cast iron single orifice air release valve with flanged ends, listed on Kartar's website with a photo only. Kartar's product list gives its single orifice valves with screwed ends, so we confirm the flanged version with the maker before quoting.
A ductile iron, tamper proof, compact double orifice kinetic air valve with flanged ends, SS-304 floats and 250 micron epoxy coating, made to IS 14845 in PN 1.6. Sizes 40 mm to 150 mm.
A single chamber, double orifice, triple action air valve with a ductile iron body and cover, SS-304 floats, integrally moulded Nitrile seal, 250 micron epoxy coating and flanged ends, in PN 1.6. Sizes 40 mm to 200 mm.
A compact single chamber, single orifice air valve with a ductile iron body and cover, SS 304 floats, epoxy coating and screwed ends, in PN 1.6, with or without an isolation ball valve. Sizes 15 mm to 50 mm.
A ductile iron single chamber compact air valve with screwed ends in PN 16, from Kartar's fire fighting list, plain (K-945) or with an isolation ball valve (K-946). Sizes 15 mm to 50 mm.
Sizes: 15 mm, 20 mm, 25 mm
Brass air vent valve that releases trapped air from high points in water pipework. Rated PN 16 and up to 100°C, in 15 mm to 25 mm.
Sizes: 65 mm to 300 mm
Flanged ductile iron balancing valve of the double regulation type, for setting flow in larger water circuits. Sizes 65 mm to 300 mm, up to 120°C.
Sizes: 15 mm to 50 mm
Bronze double regulating balancing valve to BS 7350 with screwed female ends, a lock shield and pressure test cocks, for setting the flow in each branch of a water system. PN 16, sizes 15 mm to 50 mm.
Sizes: 65 mm to 300 mm
Handwheel operated cast iron double regulating balancing valve to BS 7350, flanged to BS 4504 Section 3.2 PN 16, for larger lines from 65 mm to 300 mm.
A gunmetal valve fitted on a dry riser system to bleed air out of the pipeline.
A stainless steel valve fitted on a dry riser system to bleed air out of the pipeline.
