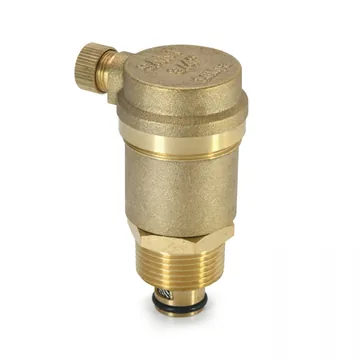

Sant Valves AV Brass Air Vent Valve, PN 16
Sizes: 15 mm, 20 mm, 25 mm
Brass air vent valve that releases trapped air from high points in water pipework. Rated PN 16 and up to 100°C, in 15 mm to 25 mm.
Air Release, Float, Balancing and Plumbing Valves in Bhopal
Air release valves let trapped air out of water mains, risers and pipework, float valves shut off tank filling as the water level rises, balancing valves set the flow in water circuits, and plumbing valves such as stop valves, bib taps, ferrules and drain valves serve the building's water service. Fire Protection System supplies these from Sant Valves, Kartar Valves, Zoloto and Aaag in Bhopal and across Madhya Pradesh.
Sant Valves

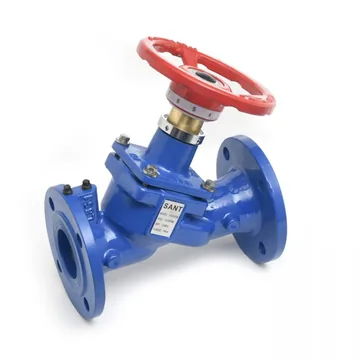

Sant Valves CIBV Ductile Iron Balancing Valve, Double Regulating, Flanged
Sizes: 65 mm to 300 mm
Flanged ductile iron balancing valve of the double regulation type, for setting flow in larger water circuits. Sizes 65 mm to 300 mm, up to 120°C.
Sant Valves

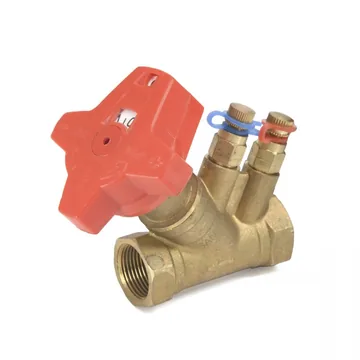

Sant Valves SBBV Brass Balancing Valve, Double Regulating
Sizes: 20 mm to 50 mm
Forged brass double regulating balancing valve with a brass cartridge disc and ABS regulating wheel. Sizes 20 mm to 50 mm, up to 150°C.
Sant Valves

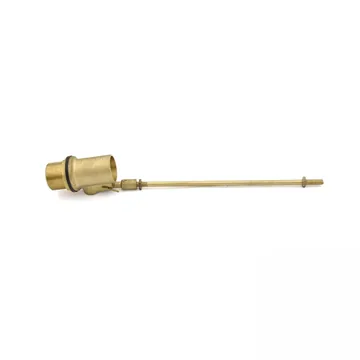

Sant Valves FBV5 Forged Brass Float Valve, Horizontal Plunger Type
Sizes: 15 mm to 50 mm
Forged brass horizontal plunger type float valve that shuts off tank filling as the water level rises. Screwed BSP ends, 15 mm to 50 mm.
Sant Valves

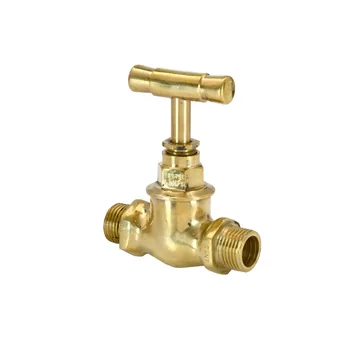

Sant Valves IS-19 Brass Stop Valve, IS-781, 15 mm
Sizes: 15 mm
Brass stop valve made as per IS-781 for isolating domestic water branches, with male or female parallel threads. Size 15 mm.
Sant Valves

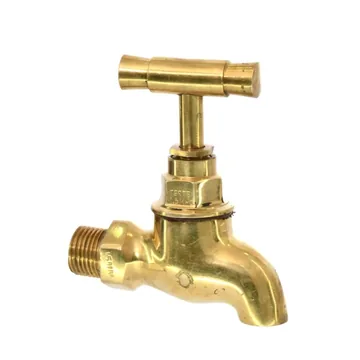

Sant Valves SBM-21 Brass Bib Tap, Export Pattern
Export pattern brass bib tap with a crutch head and polished body, with a BSP parallel male inlet.
Sant Valves

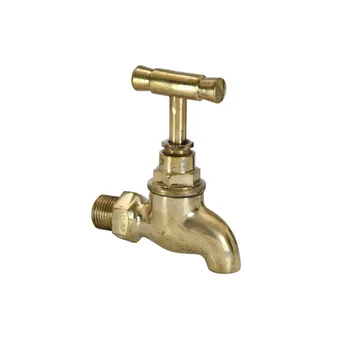

Sant Valves IS-18 Brass Bib Tap, IS-781
Sizes: 15 mm, 25 mm
Brass bib tap made as per IS-781 with a crutch head and polished body, with male parallel threads. Sizes 15 mm and 25 mm.
Sant Valves

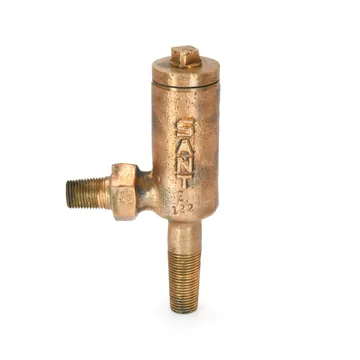

Sant Valves SBM-22 Bronze Ferrule, JCS WR Type
JCS WR type bronze ferrule for water service connections, with male BSP taper threads and a CAF gasket.
Sant Valves
Sant Valves IS-17 Bronze Ferrule Cock, IS 2692
Sizes: 8 mm to 50 mm
Bronze ferrule cock made as per IS 2692, for tapping a water service connection off the main. Sizes 8 mm to 50 mm.
Sant Valves

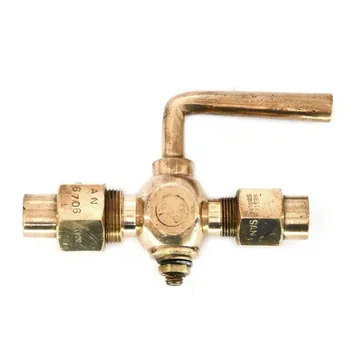

Sant Valves SBM-26 Bronze Drain Valve
Gun metal drain valve with a round barrel and straight nose, union nut and tail pipe, polished body and metallic handle.
Sant Valves

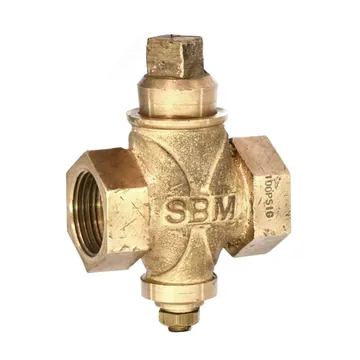

Sant Valves SBM-23 Bronze Plug Main Valve
Standard pattern bronze taper plug valve for main isolation on plumbing lines, with female BSP parallel threads.
Kartar Valves

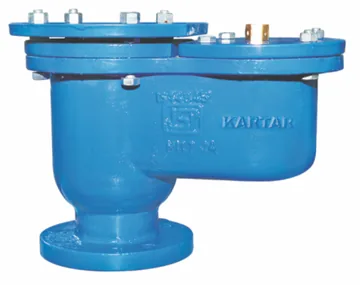

Kartar Valves CI Double Orifice Kinetic Air Valve, IS 14845 Type DK, PN 1.0 (K541, K542)
A cast iron double orifice kinetic air valve with flanged ends, made to IS 14845 Type DK in PN 1.0, with rubber floats (K541) or SS floats (K542). Sizes 40 mm to 200 mm.
Kartar Valves

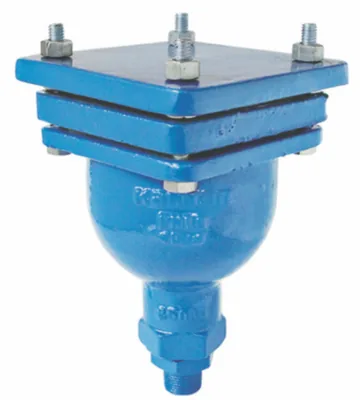

Kartar Valves CI Single Orifice Kinetic Air Valve, Screwed, PN 1.0 (K543, K544)
A cast iron single orifice kinetic air valve with screwed ends, made to IS 14845 Type S1 and S2 in PN 1.0, with rubber floats (K543) or SS floats (K544). Sizes 15 mm to 50 mm.
Kartar Valves
Kartar Valves DI Double Orifice Compact Kinetic Air Valve, Tamper Proof, PN 1.6 (K542.C)
A ductile iron, tamper proof, compact double orifice kinetic air valve with flanged ends, SS-304 floats and 250 micron epoxy coating, made to IS 14845 in PN 1.6. Sizes 40 mm to 150 mm.
Kartar Valves

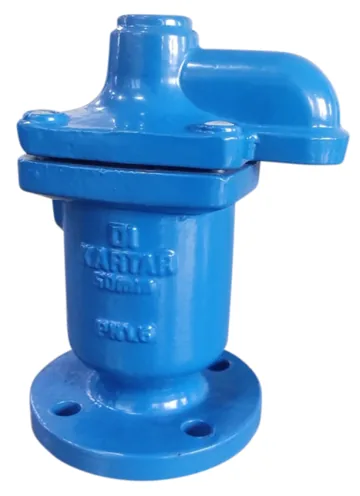

Kartar Valves DI Single Chamber Triple Action Air Valve, Double Orifice, PN 1.6 (K549)
A single chamber, double orifice, triple action air valve with a ductile iron body and cover, SS-304 floats, integrally moulded Nitrile seal, 250 micron epoxy coating and flanged ends, in PN 1.6. Sizes 40 mm to 200 mm.
Kartar Valves

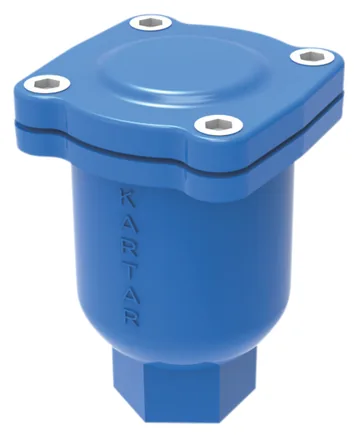

Kartar Valves DI Single Chamber Compact Air Valve, Screwed, PN 1.6 (K550)
A compact single chamber, single orifice air valve with a ductile iron body and cover, SS 304 floats, epoxy coating and screwed ends, in PN 1.6, with or without an isolation ball valve. Sizes 15 mm to 50 mm.
Kartar Valves

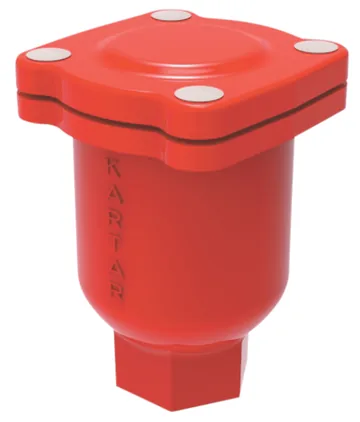

Kartar Valves DI Single Chamber Compact Air Valve, PN 16 (K-945, K-946)
A ductile iron single chamber compact air valve with screwed ends in PN 16, from Kartar's fire fighting list, plain (K-945) or with an isolation ball valve (K-946). Sizes 15 mm to 50 mm.
Kartar Valves
Kartar Valves Tamper Proof Double Orifice Kinetic Air Valve, CI or DI (K547, K548)
A tamper proof double orifice kinetic air valve with SS floats, in cast iron for PN 1.0 (K547) or ductile iron for PN 1.6 (K548), available on request.
Kartar Valves
Kartar Valves Cast Double Orifice Air Valve, Type DS1, PN 1.0 (K553, K554)
A cast double orifice air valve of Type DS1 with flanged ends in PN 1.0, with rubber floats (K553) or SS floats (K554), available on request.
Kartar Valves

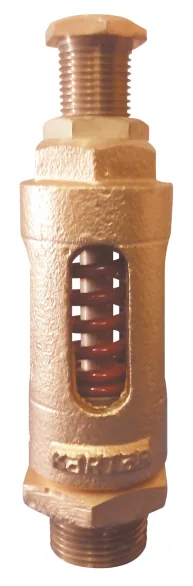

Kartar Valves Gunmetal Spring Loaded Air Release Valve, Screwed (K904-S, K616)
A gunmetal (bronze) spring loaded air release valve with screwed ends and open discharge, PN1.0, in 15 mm, 20 mm and 25 mm.
Kartar Valves

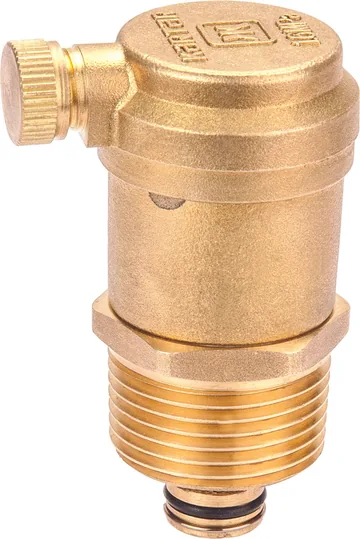

Kartar Valves Forged Brass Air Vent with Built In Strainer (K907)
A forged brass air vent with a built in strainer, for letting air out of small bore pipework, in 15 mm, 20 mm and 25 mm.
Kartar Valves

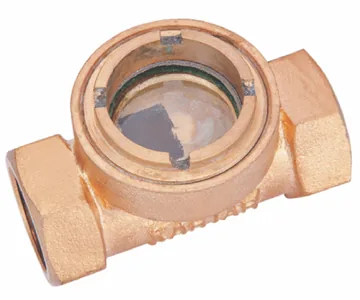

Kartar Valves Sight Glass, Screwed End (K905)
A sight glass with screwed ends that lets you see whether water is flowing in the pipe, in 25 mm and 50 mm.
Kartar Valves
Kartar Valves Spare Float Balls for Air Valves (K541-SBR, K549-SBS)
Spare float balls for Kartar air valves: timber balls coated with rubber for K541 (K541-SBR, small or large ball) and SS-304 fabricated balls for K549 (K549-SBS), for valve sizes 40 mm to 200 mm.
Zoloto

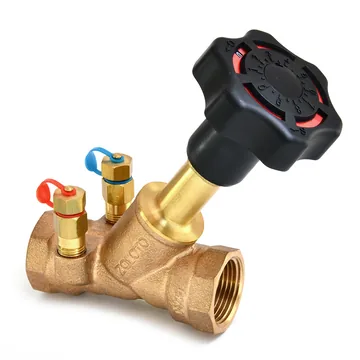

Zoloto Bronze Double Regulating Balancing Valve with Test Cocks, Screwed, PN 16 (1087)
Sizes: 15 mm to 50 mm
Bronze double regulating balancing valve to BS 7350 with screwed female ends, a lock shield and pressure test cocks, for setting the flow in each branch of a water system. PN 16, sizes 15 mm to 50 mm.
Zoloto

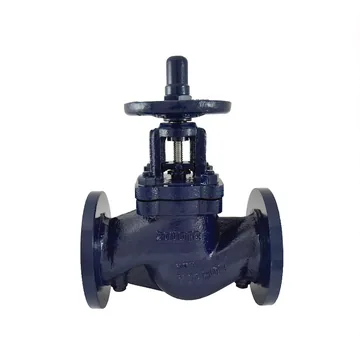

Zoloto Cast Iron Double Regulating Balancing Valve, Flanged PN 16 (1087A)
Sizes: 65 mm to 300 mm
Handwheel operated cast iron double regulating balancing valve to BS 7350, flanged to BS 4504 Section 3.2 PN 16, for larger lines from 65 mm to 300 mm.
Zoloto

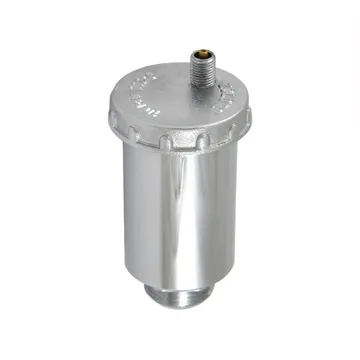

Zoloto Forged Brass Air Release Valve, Chrome Plated, Screwed (1095)
Sizes: 15 mm, 20 mm, 25 mm
Compact chrome plated forged brass valve for letting out air trapped in a piping system, with a male screwed end, in 15 mm, 20 mm and 25 mm.
Aaag
Aaag Air Release Valve, Gunmetal (AAAG G152)
A gunmetal valve fitted on a dry riser system to bleed air out of the pipeline.
Aaag
Aaag Air Release Valve, Stainless Steel (AAAG SS152)
A stainless steel valve fitted on a dry riser system to bleed air out of the pipeline.
Kartar Valves

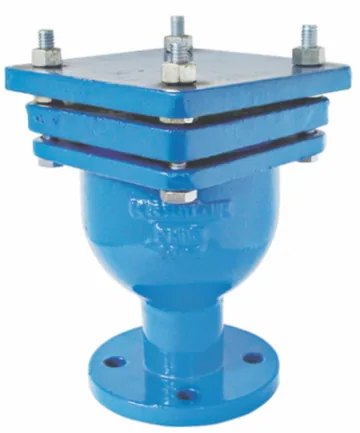

Kartar Valves CI Single Orifice Air Release Valve, Flanged
A cast iron single orifice air release valve with flanged ends, listed on Kartar's website with a photo only. Kartar's product list gives its single orifice valves with screwed ends, so we confirm the flanged version with the maker before quoting.
Kartar Valves

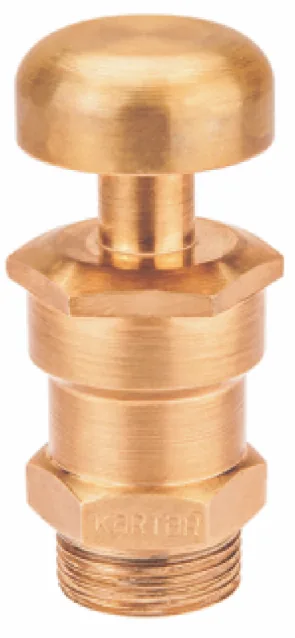

Kartar Valves Air Release Valve, Screwed End, 25 mm (K904)
Sizes: 25 mm
An air release valve with a screwed end, listed in 25 mm.
- Item Description: KARTAR Air Release Valve Screwed End.
- Size: 25mm
How to choose
For air release on mains, match the valve to the job. A single orifice valve bleeds small pockets of air from a main under pressure, while a double orifice kinetic air valve adds a large opening that moves air while a main fills or drains. Kartar Valves makes both to IS 14845: screwed single orifice valves (K543, K544, Type S1 and S2, 15 mm to 50 mm) and flanged double orifice kinetic valves (K541, K542, Type DK, 40 mm to 200 mm) with rubber or SS floats. It also offers ductile iron PN 1.6 valves such as the tamper proof compact K542.C, the triple action K549 and the compact K550, and the K-945 and K-946 from its fire fighting list in PN 16, plain or with an isolation ball valve. Fit air valves at the high points of hydrant mains and water pipework, where trapped air collects.
For dry risers and small lines, Aaag offers air release valves in gunmetal (G152) or stainless steel (SS152), made to bleed air from a dry riser, with a 25 mm male BSP or NPT inlet and a test pressure of 21 bar. Kartar Valves offers a gunmetal spring loaded air release valve (K904-S, K616, PN1.0, 15 mm to 25 mm) and a forged brass air vent with a built in strainer (K907), Sant Valves the AV brass air vent valve, rated PN 16 and up to 100°C in 15 mm to 25 mm, and Zoloto a chrome plated forged brass air release valve (1095) in 15 mm, 20 mm and 25 mm.
For tank filling, the Sant Valves FBV5 forged brass horizontal plunger float valve shuts off the supply as the water level rises, with screwed BSP ends from 15 mm to 50 mm. For setting flow in water circuits, Sant Valves and Zoloto offer double regulating balancing valves in two size bands: from 15 mm to 50 mm (the forged brass Sant Valves SBBV from 20 mm, up to 150°C, and the screwed bronze Zoloto 1087 to BS 7350, PN 16, with test cocks and a lock shield) and flanged from 65 mm to 300 mm (the ductile iron Sant Valves CIBV, up to 120°C, and the cast iron Zoloto 1087A to BS 7350, flanged to BS 4504 PN 16). Kartar Valves also offers a sight glass (K905) that shows whether water is flowing in the pipe.
For building water service, Sant Valves offers a brass stop valve and bib tap made as per IS-781, an export pattern bib tap, a JCS WR type bronze ferrule, an IS 2692 bronze ferrule cock from 8 mm to 50 mm, a gun metal drain valve with union nut and tail pipe, and a bronze taper plug main valve. Check the thread type before ordering: most of these use BSP or IS-554 parallel threads, while the ferrules use taper threads. Kartar Valves lists its flanged single orifice air release valve with a photo only and supplies its K547, K548, K553 and K554 air valves on request, so FPS confirms size, body and rating with the maker before quoting.
Frequently asked questions
Why does a water main or riser need an air release valve?
Air collects at the high points of a water main or riser, and an air release valve lets it out while the line is in service. Sant Valves, Kartar Valves, Zoloto and Aaag offer air release valves and air vents for this job, and the Aaag G152 and SS152 are made for dry risers.
What is the difference between single orifice and kinetic double orifice air valves?
A single orifice valve bleeds small pockets of air from a main under pressure. A kinetic double orifice valve adds a large opening that moves air while the main fills or drains, and Kartar Valves makes both to IS 14845, as Type S1 and S2 single orifice and Type DK double orifice valves.
What is a float valve used for?
A float valve shuts off the supply to a tank as the water level rises, so the tank refills on its own without overflowing. The Sant Valves FBV5 is a forged brass horizontal plunger type from 15 mm to 50 mm.
What does a double regulating balancing valve do?
It sets the flow in a branch of a water circuit precisely and can also shut the branch off. Sant Valves offers it in forged brass from 20 mm to 50 mm and in flanged ductile iron from 65 mm to 300 mm, and Zoloto offers bronze and cast iron versions to BS 7350 with a lock shield that keeps the setting tamper proof.
What is a ferrule cock?
A ferrule cock taps a water service connection off the main. The Sant Valves IS-17 is made as per IS 2692 in bronze, from 8 mm to 50 mm.
Does FPS supply these valves, and how do I get a price?
FPS is an authorised distributor of Sant Valves and Kartar Valves and a dealer for Zoloto, and also supplies Aaag, and it supplies, installs and maintains air, float, balancing and plumbing valves in Bhopal and across MP. Prices depend on type, size and quantity and are shared on request: call or WhatsApp +91 92440 89060.
