Sant Valves IS-19 Brass Stop Valve, IS-781, 15 mm
Sizes: 15 mm
Brass stop valve made as per IS-781 for isolating domestic water branches, with male or female parallel threads. Size 15 mm.

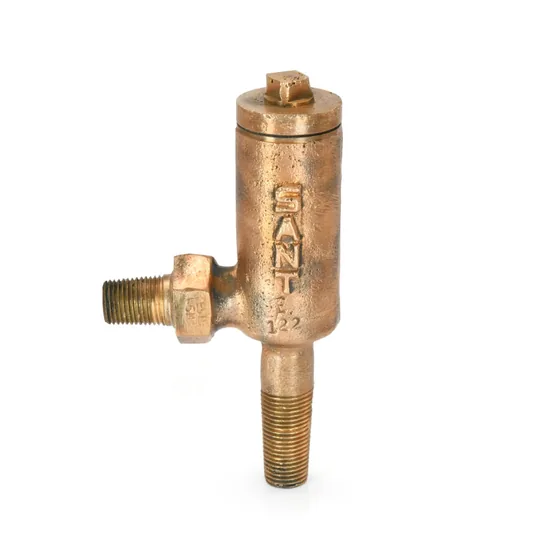

Authorised distributor for Sant ValvesSant Valves IS-17 Bronze Ferrule Cock, IS 2692
Bronze ferrule cock made as per IS 2692, for tapping a water service connection off the main. Sizes 8 mm to 50 mm.
- Made as per IS 2692
- Bronze body to IS:318 Gr.LTB2
- Screwed male taper thread to IS:554
- Body test 1.5 MPa, seat test 1.0 MPa
Standards and approvals: As per IS:2692, IS : 2692
Sizes: 8 mm to 50 mm
Specifications
Specifications
| Specification | 8 mm | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm |
|---|---|---|---|---|---|---|---|---|
| Nominal Size | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 |
| Nominal Size (Inches) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 |
| R (Minimum) | 8 | 8.8 | 12.3 | 17.8 | 24.5 | 30.8 | 36.8 | 46.8 |
| S (Minimum) | 50 | 50 | 55 | 60 | 70 | 85 | 95 | 115 |
| T (Minimum) | 55 | 55 | 60 | 65 | 75 | 90 | 100 | 120 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
