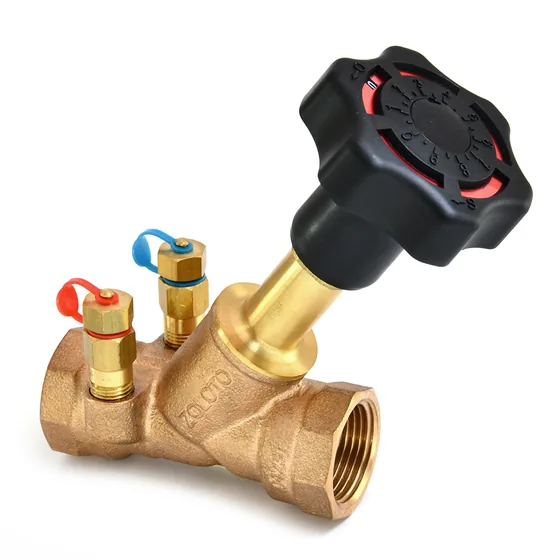

Dealer for ZolotoZoloto Bronze Double Regulating Balancing Valve with Test Cocks, Screwed, PN 16 (1087)
Bronze double regulating balancing valve to BS 7350 with screwed female ends, a lock shield and pressure test cocks, for setting the flow in each branch of a water system. PN 16, sizes 15 mm to 50 mm.
- Designed to BS 7350, with female threads to IS 554 / BS 21 / ISO 7
- Lock shield keeps the balancing setting tamper proof
- Nylon handwheel with a turn indicator to help line balancing
- PTFE sealing disc for a proper shut off
- Pressure test cocks on the inlet and outlet
- 16 bar maximum operating pressure, 24 bar shell test, -10°C to 85°C
Standards and approvals: BS 7350, BS:7350
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 1087 |
|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | |
| Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | |
| A ±1.5 | 87 | 96 | 100 | 114 | 125 | 146 | |
| B ±5 | 108 | 110 | 133 | 133 | 147 | 149 | |
| C | 1/2″ | 3/4″ | 1″ | 1.1/4″ | 1.1/2″ | 2″ | |
| ØD | 70 | 70 | 70 | 70 | 70 | 70 | |
| Test Pressure (Hydrostatic): Shell | 24 bar (350 psig) | ||||||
| Maximum Operating Pressure (Hydrostatic) | 16 bar (230 psig) | ||||||
| Working Temperature | -10°C to 85°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
