Sant Valves CIBV Ductile Iron Balancing Valve, Double Regulating, Flanged
Sizes: 65 mm to 300 mm
Flanged ductile iron balancing valve of the double regulation type, for setting flow in larger water circuits. Sizes 65 mm to 300 mm, up to 120°C.

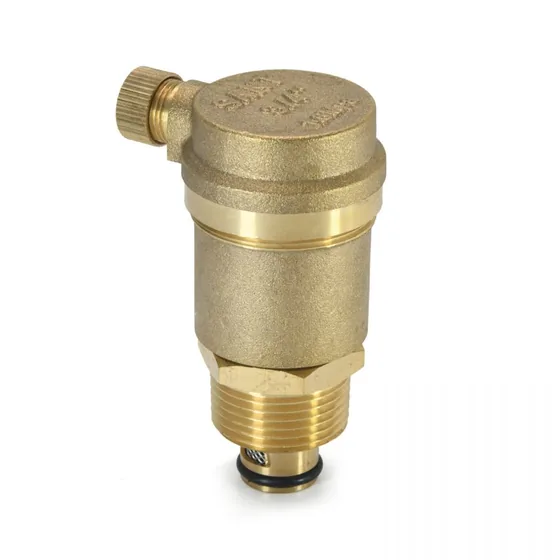

Authorised distributor for Sant ValvesSant Valves AV Brass Air Vent Valve, PN 16
Brass air vent valve that releases trapped air from high points in water pipework. Rated PN 16 and up to 100°C, in 15 mm to 25 mm.
- Brass body
- Pressure rating PN 16
- Maximum working temperature 100°C
Sizes: 15 mm, 20 mm, 25 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm |
|---|---|---|---|
| Size | 15 | 20 | 25 |
| F±2 | 73.5 | 73.5 | 73.5 |
| A | 1/2″ | 3/4″ | 1″ |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
More Sant Valves Balancing, Air Vent and Float Valves
Sant Valves SBBV Brass Balancing Valve, Double Regulating
Sizes: 20 mm to 50 mm
Forged brass double regulating balancing valve with a brass cartridge disc and ABS regulating wheel. Sizes 20 mm to 50 mm, up to 150°C.
Sant Valves FBV5 Forged Brass Float Valve, Horizontal Plunger Type
Sizes: 15 mm to 50 mm
Forged brass horizontal plunger type float valve that shuts off tank filling as the water level rises. Screwed BSP ends, 15 mm to 50 mm.
Air, Float, Balancing and Plumbing Valves from other brands
Kartar Valves
Kartar Valves CI Double Orifice Kinetic Air Valve, IS 14845 Type DK, PN 1.0 (K541, K542)
A cast iron double orifice kinetic air valve with flanged ends, made to IS 14845 Type DK in PN 1.0, with rubber floats (K541) or SS floats (K542). Sizes 40 mm to 200 mm.
Kartar Valves
Kartar Valves CI Single Orifice Kinetic Air Valve, Screwed, PN 1.0 (K543, K544)
A cast iron single orifice kinetic air valve with screwed ends, made to IS 14845 Type S1 and S2 in PN 1.0, with rubber floats (K543) or SS floats (K544). Sizes 15 mm to 50 mm.
Zoloto
Zoloto Bronze Double Regulating Balancing Valve with Test Cocks, Screwed, PN 16 (1087)
Sizes: 15 mm to 50 mm
Bronze double regulating balancing valve to BS 7350 with screwed female ends, a lock shield and pressure test cocks, for setting the flow in each branch of a water system. PN 16, sizes 15 mm to 50 mm.
Zoloto
Zoloto Cast Iron Double Regulating Balancing Valve, Flanged PN 16 (1087A)
Sizes: 65 mm to 300 mm
Handwheel operated cast iron double regulating balancing valve to BS 7350, flanged to BS 4504 Section 3.2 PN 16, for larger lines from 65 mm to 300 mm.
Aaag
Aaag Air Release Valve, Gunmetal (AAAG G152)
A gunmetal valve fitted on a dry riser system to bleed air out of the pipeline.
Aaag
Aaag Air Release Valve, Stainless Steel (AAAG SS152)
A stainless steel valve fitted on a dry riser system to bleed air out of the pipeline.
