Sant Valves AV Brass Air Vent Valve, PN 16
Sizes: 15 mm, 20 mm, 25 mm
Brass air vent valve that releases trapped air from high points in water pipework. Rated PN 16 and up to 100°C, in 15 mm to 25 mm.

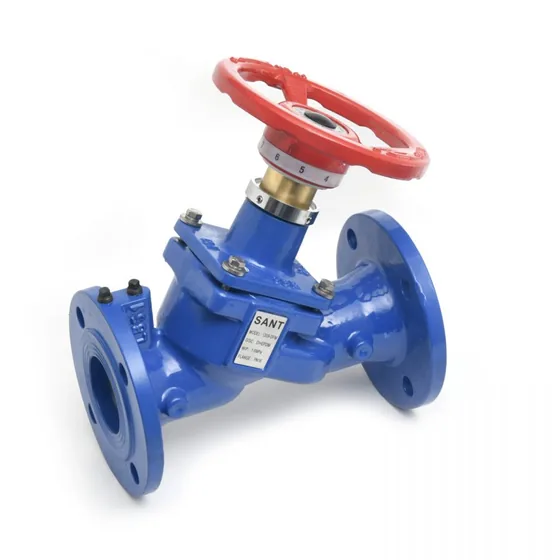

Authorised distributor for Sant ValvesSant Valves CIBV Ductile Iron Balancing Valve, Double Regulating, Flanged
Flanged ductile iron balancing valve of the double regulation type, for setting flow in larger water circuits. Sizes 65 mm to 300 mm, up to 120°C.
- Ductile iron body, DI and EPDM trim
- Precise balancing, double regulation type
- Flanged ends
- Maximum working pressure 1.6 MPa (232 psig), body test 2.4 MPa (348 psig), up to 120°C
Sizes: 65 mm to 300 mm
Specifications
Specifications
| Specification | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|
| Size | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| F | 290±2 | 310±2 | 350±2 | 400±2 | 480±3 | 600±3 | 732±4 | 850±4 |
| ∅W (Approx.) | 200 | 200 | 240 | 290 | 290 | 350 | 420 | 420 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
