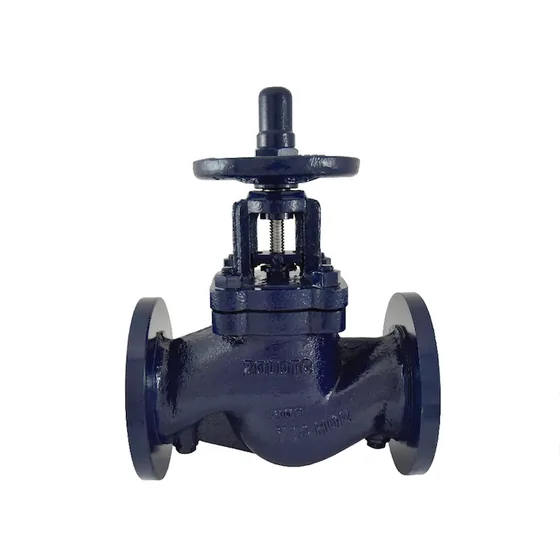

Zoloto Cast Iron Double Regulating Balancing Valve, Flanged PN 16 (1087A)

Cast ironBS 7350PN 16Flanged65 mm to 300 mm

Handwheel operated cast iron double regulating balancing valve to BS 7350, flanged to BS 4504 Section 3.2 PN 16, for larger lines from 65 mm to 300 mm.

Designed to BS 7350, with a tamper proof setting
Flanged ends to BS 4504 Section 3.2 PN 16
EPDM rubber sealing for a soft shut off
Low noise flow
Available with or without drain cocks
16 bar at ambient temperatures up to 45°C; maximum working temperature 110°C

Standards and approvals: BS 7350, BS:7350

Sizes: 65 mm to 300 mm

Download the official Zoloto catalogue (PDF, 2.4 MB)

Specifications

Specification	65 mm	80 mm	100 mm	125 mm	150 mm	200 mm	250 mm	300 mm	1087A
Size (Inches)	2 1/2	3	4	5	6	8	10	12
Size (mm)	65	80	100	125	150	200	250	300
A ±1.5	290	304	350	400	480	600	730	850
B ~	286	294	356	380	475	625	660	720
ØC ~	170	170	200	225	256	300	400	400
Shell									24 kg/cm²g (340 psig)
Maximum Operating Pressure (Hydrostatic)									16 Bar at an ambient temperature upto 45°C
Maximum Working Temperature									110°C

Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
