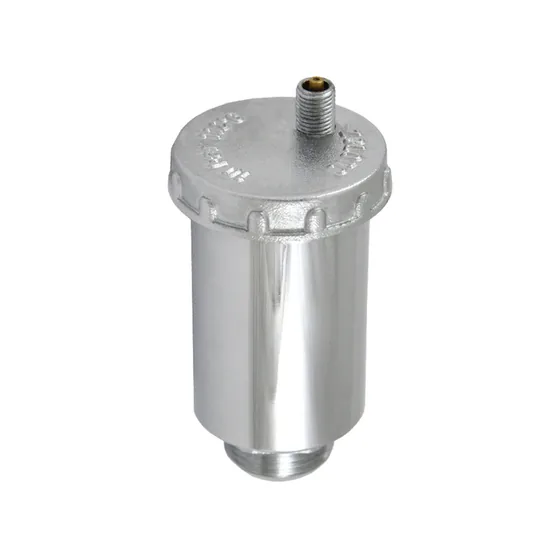

Dealer for ZolotoCompact chrome plated forged brass valve for letting out air trapped in a piping system, with a male screwed end, in 15 mm, 20 mm and 25 mm.
Sizes: 15 mm, 20 mm, 25 mm
| Specification | 15 mm | 20 mm | 25 mm | 1095 |
|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | |
| Size (mm) | 15 | 20 | 25 | |
| A | 1/2″ | 3/4″ | 1″ | |
| B ~ | 75 | 95 | 97 | |
| Shell | 15 bar (220 psig) | |||
| Seat | 10 bar (150 psig) | |||
| Maximum Working Temperature | 110°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
Sizes: 15 mm to 50 mm
Bronze double regulating balancing valve to BS 7350 with screwed female ends, a lock shield and pressure test cocks, for setting the flow in each branch of a water system. PN 16, sizes 15 mm to 50 mm.
Sizes: 65 mm to 300 mm
Handwheel operated cast iron double regulating balancing valve to BS 7350, flanged to BS 4504 Section 3.2 PN 16, for larger lines from 65 mm to 300 mm.
Sizes: 15 mm, 20 mm, 25 mm
Brass air vent valve that releases trapped air from high points in water pipework. Rated PN 16 and up to 100°C, in 15 mm to 25 mm.
Sizes: 65 mm to 300 mm
Flanged ductile iron balancing valve of the double regulation type, for setting flow in larger water circuits. Sizes 65 mm to 300 mm, up to 120°C.
A cast iron double orifice kinetic air valve with flanged ends, made to IS 14845 Type DK in PN 1.0, with rubber floats (K541) or SS floats (K542). Sizes 40 mm to 200 mm.
A cast iron single orifice kinetic air valve with screwed ends, made to IS 14845 Type S1 and S2 in PN 1.0, with rubber floats (K543) or SS floats (K544). Sizes 15 mm to 50 mm.
A gunmetal valve fitted on a dry riser system to bleed air out of the pipeline.
A stainless steel valve fitted on a dry riser system to bleed air out of the pipeline.
