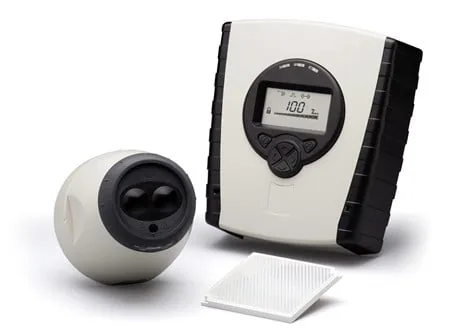

Authorised distributor for ApolloA conventional reflective beam detector made up of a ground level controller, an auto-aligning detector head with an integral laser for quick first alignment, and a single prism. A second detector head can be added to the same controller.
Standards and approvals: EN 54-12, CPR, VdS
| Specification | 29650-069 |
|---|---|
| Supply voltage | 14 V: 36 V dc |
| Operating current: 1 Detector Head | 6 mA |
| Operating current: 2 Detector Heads | 8.5 mA |
| Alignment mode current with 1 or 2 Detector Heads | 37 mA |
| Response threshold: Default | 35% |
| Response threshold: Range | 10-60% |
| Operating distance | 8 - 100 m |
| Optical wavelength | 850 nm |
| Delays (user settable) Default | 35% |
| Delays (user settable) Alarm or Fault | 2 - 30 seconds |
| Operating temperature | -10°C to 55°C |
| Storage temperature | -40°C to 85°C |
| Humidity (no condensing or icing) | 0% to 93% RH |
| IP Rating | IP54 |
| Contact rating | 100 mA @ 36 V dc |
| Cable length (system controller to detector) | 100 m - 2 core |
| Standards & approvals | EN 54-12, CPR, VdS |
| Housing material | Polycarbonate |
| Colour | Grey/Black |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
