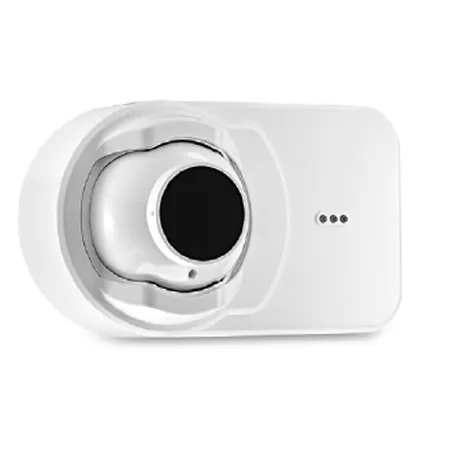

Dealer for NotifierNotifier FS-OSI-RI Intelligent Reflector Beam Smoke Detector
An addressable reflector-type linear optical beam detector, with the transmitter and receiver in one unit, for large open areas with high ceilings.
- Coverage of 5 to 100 m as standard, no separate long-range kit needed
- Beam alignment guided by directional LED arrows, 12° field of view
- Tolerates plus or minus 1° of building movement
- Does not alarm when saturated by sunlight
- Automatic sensitivity settings, drift compensation and built-in imager heater
- Works with NFW-50X, NFW-100X, NFS-320, NFS2-640 and NFS2-3030 in FlashScan or CLIP mode
Standards and approvals: FM: PR449231, CSFM: 7260-0028:0509
Specifications
Specifications
| Specification | Details | FS-OSI-RI | Details | Details | Details | Details |
|---|---|---|---|---|---|---|
| Dimensions (Detector) | Height 6” (152.4 mm); Width 10” (254 mm); Depth 4.5” (114.3 mm) | |||||
| Dimensions (Reflector) | Height 9.06” (230 mm); Width 7.87” (200 mm) | |||||
| Weight (Installed) | 2.48 lbs (1.12 kg) | |||||
| Weight (Shipping) | 3.91 lbs (1.77 kg) | |||||
| Wire Gauge for Terminals | 14 AWG (2.08 mm²) | |||||
| Operating Voltage Range | Nominal: 24 VDC | |||||
| Minimum | 15 VDC | |||||
| Maximum | 32.0 VDC | |||||
| Available panel current | , NFS2-3030: 100ma average operating current, NFS-320: 150ma average operating current, NFS2-640: 150ma average operating current, FireWarden-50X: 100ma normal operating current, FireWarden-100X: 150ma normal operating current | |||||
| Voltage Range | 15 to 32 V | 10.2 to 32 VDC | ||||
| Maximum Current | 450 mA Max at 32 V | |||||
| Power Consumption | 7.7 W @ 24 V 15 W @ 32 V | |||||
| Current Range | 9 mA Min to 11 mA Max | |||||
| Operating Temperature | UL-Listed for use from 32°F to 100°F (0°C to 37.8°C) | |||||
| Application Temperature Range | -4°F to 131°F (-20°C to +55°C) | |||||
| Humidity Range | 0 to 95% relative humidity, non-condensing | |||||
| Protection Range | 16 ft to 328 ft (5 m to 100 m) | |||||
| Adjustment Angle | 20 degrees vertical, 50 degrees horizontal | |||||
| Sensitivity Levels | Level 1 25%, Level 2 30%, Level 3 40%, Level 4 50% | |||||
| Test/Reset Features | Local alarm test switch, local alarm reset switch, Remote test and reset switch (compatible with RTS151(A) and RTS151KEY(-A) test stations), OSID-R test filter. | |||||
| Smoke Detector Spacing | On smooth ceilings, 30-60 feet between projected beams and not more than one-half that spac- ing between a projected beam and a sidewall. Other spacing may be used depending on the ceiling height, airflow characteristics, and response requirements. See NFPA 72 (S524 in Canadian applications). |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
