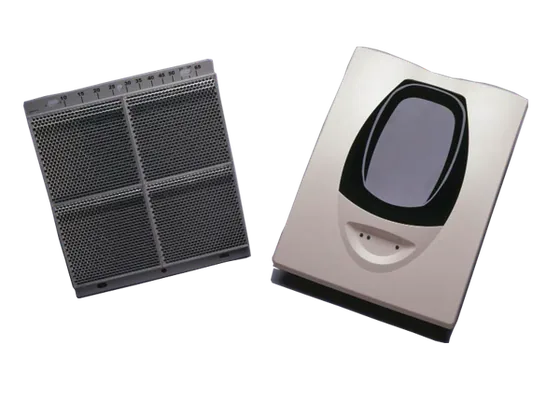

Dealer for NotifierNotifier FSB-200 Addressable Reflected Beam Smoke Detector
A single-ended reflected beam smoke detector for spacious rooms, open areas and high ceilings, with one device to install and align.
- Protection range 5 to 70 m, or 70 to 100 m with the optional BEAMLRK kit
- Single-ended, reflected type design
- Alignment with an optical sight and a two-digit signal strength meter
- Paintable cover
- Works with NFS-3030, NFS2-3030, NFS-640, NFS2-640 and NFS-320 in FlashScan or CLIP mode, and with legacy addressable panels
- UL and ULC listed and FM approved, with CSFM and MEA listings
Standards and approvals: UL Listed: S2522 (FSB-200, FSB-200S), ULC Listed: S2522 (FSB-200A, FSB-200SA), CSFM: 7260-0028:228, MEA: 95-04-E, Maryland State Fire Marshal: Permit # 2167, FM Approved
Specifications
Specifications
| Specification | Details | Details | Details | Details |
|---|---|---|---|---|
| Protection Range | 16 to 230 feet (5 to 70 m), 230 to 328 feet (70 to 100 m) using optional BEAMLRK kit. | |||
| Adjustment Angle | ±10° horizontal and vertical. Note that the optics move independently of the unit. | |||
| Fault Condition (trouble) | • 96% or more obscuration blockage. • In alignment mode. • Improper initial alignment. • Self-compensation limit reached. | |||
| Alignment Aid | • Optical gunsight. • Integral signal strength indication. • Two-digit display. | |||
| Indicators | • Alarm: local red LED and remote alarm. • Trouble, local yellow LED and remote trouble. • Normal, local flashing green LED. | |||
| Temperature | -22°F to 131°F (-30°C to 55°C). | |||
| Humidity | 10 to 93% RH noncondensing. | |||
| Voltage | 15 to 32 VDC. | |||
| Average Standby Current (24 VDC) | 2 mA maximum (LED flashing, SLC @ 24 V). | |||
| Alarm Current (LED on) | 8.5 mA maximum. | |||
| Trouble Current (LED on) | 4.5 mA maximum. | |||
| Alignment Current | 20 mA maximum. | |||
| Heater Kit BEAMHK | Voltage - 15 to 32 V; Current - 92 mA maximum @ 32 V (heater only); Power Consumption - nominal 1.6 W @ 24 V, maximum 3.0 W @ 32 V. | |||
| Reflector Heater Kit BEAMHKR | Voltage - 15 to 32 V; Current - 450 mA maximum @ 32 V (per reflector); Power Consumption (per reflector) - nominal 7.7 W @ 24 V, maximum 15.0 W @ 32 V. | |||
| Shipping Weight | 3.7 lbs (1.68 kg) | |||
| Detector Dimensions | 10.0" H x 7.5" W x 3.3" D (254 mm H x 191 mm W x 84 mm D). | |||
| Applications | 7.9" x 9.1" (200 x 230 mm). | |||
| Reflector Dimensions for Applications Beyond 230'/70m | 15.7" x 18.1" (400 x 460 mm). |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
