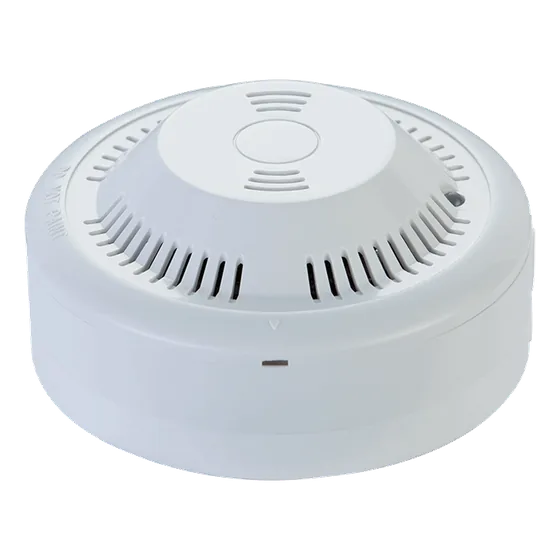

Dealer for RavelRavel LPG (Propane) Gas Leak Detector with Relay Output
A conventional 4 wire detector for LPG (propane) that alarms at or below 0.25 LEL and signals the panel through a normally open alarm relay.
- Senses propane (LPG)
- Alarm threshold at or below 0.25 LEL
- 4 wire operation on 21 to 27 V DC
- Normally open (N/O) alarm relay output and 70 dB internal sounder
- Auto reset and internal reed switch for hush and test
- Fits the RE-314B 4 wire detector base
Specifications
Specifications
| Specification | RE-386LP |
|---|---|
| Operating Voltage | (21 ~ 27)VDC |
| Start-up current | ≤120mA |
| Start-up time | ≤10min |
| Quiescent Current | 45 mA |
| Alarm Current (max) | 60 mA |
| Sampling Time | 3 s ~ 5 s |
| Reset Voltage | ≤1 V |
| Reset Time | ≤5 s |
| Alarm response threshold | ≤ 0.25 LELC3H8 |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
