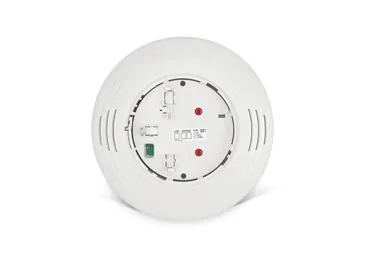

Dealer for NotifierNotifier B224BI-WH Isolator Detector Base
An intelligent isolator base for detectors, 6.2 inch in diameter, for loops that need short circuit isolation at the detector position.
- Intelligent isolator base
- 6.2 inch diameter
- Takes 14 to 24 AWG wire
- Operating range 0°C to 49°C
- UL/ULC listed, FM approved and CSFM listed
Standards and approvals: UL/ULC Listed: S1115, FM Approved, CSFM: 7300-1653:0109, 7300-1653:0126, 7300-1653:0213, 7300-1653:0236
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| B501-WHITE | 4" (10.16 cm) diameter. | |
| B300-6 | 6.1" (15.49 cm) diameter. | |
| B224BI, B224RB | 6.2" (15.748 cm) diameter. | |
| B200S, B200SR, B200SCOA | 6.875" (17.46 cm) diameter. | |
| Wire gauge | • B224BI, B224RB: 14 to 24 AWG. • B300-6, B210LP, B501, B200S, B200SR, B200SCOA: 12 to 24 | |
| Temperature range | • B224BI, B224RB, B200S, B200SR, B200SCOA: 32°F to 120°F (0°C to 49°C). • B300-6, B210LP, B501: -4°F to 150°F (-20°C to 66°C). | |
| Humidity range | 10% to 93% RH, non-condensing. | |
| System temperature and humidity ranges | This system meets NFPA requirements for operation at 0°C to 49°C (32°F to 120°F); and at a relative humidity (non-condensing) of 85% at 30°C (86°F) per NFPA, and 93% ± 2% at 32°C ± 2°C (89.6°F ± 1.1°F) per ULC. | |
| Operating voltage | 15 to 32 VDC | |
| Standby current | 170 µA maximum | |
| Operating voltage (2) | 15 to 32 VDC | |
| Standby current (2) | 150 µA maximum | |
| External supply voltage | 16 to 33 VDC (FWR) | |
| Standby current (3) | 500 µA maximum. | |
| SLC operating voltage | 15 to 32 VDC | |
| SLC standby current | See applicable sensor specification. | |
| Operating voltage (3) | 15 to 32 VDC (powered by SLC) | |
| Standby ratings | <450 µA maximum @ 24 VDC | |
| Set time (B224RB(A)(-IV)(-WH) only) | short delay 60-100 millisec- onds; long delay 6-10 seconds | |
| Reset time (B224RB(A)(-IV)(-WH) only) | 20 milliseconds maximum | |
| Relay characteristics (B224RB(A)(-IV)(-WH) only) | two-coil latch- ing relay; one Form-C contact; ratings (UL/CSA): 0.9 A @ 125 VAC, 0.9 A @ 110 VDC, and 3.0 A @ 30 VDC |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
